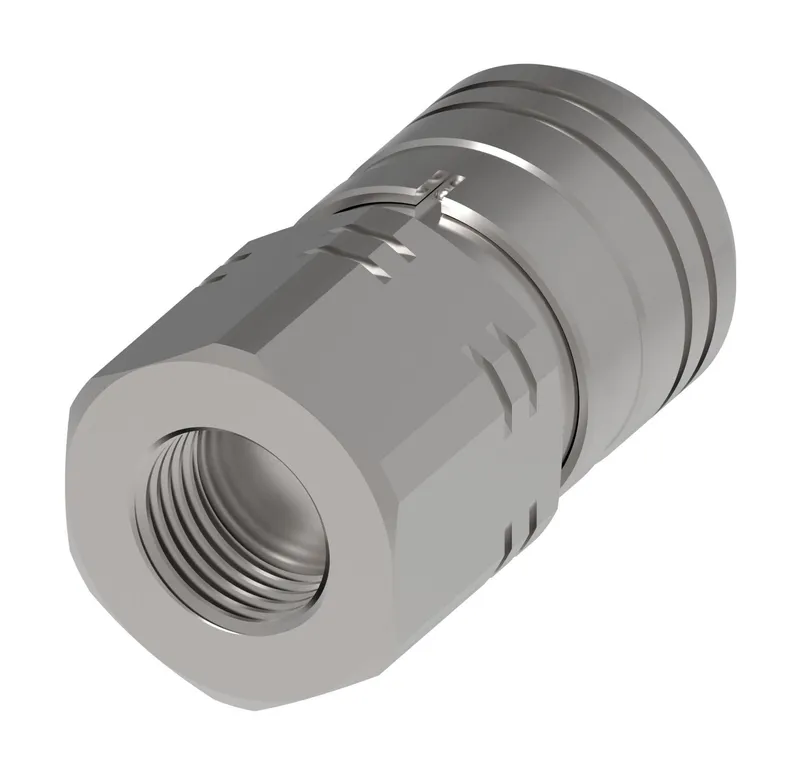

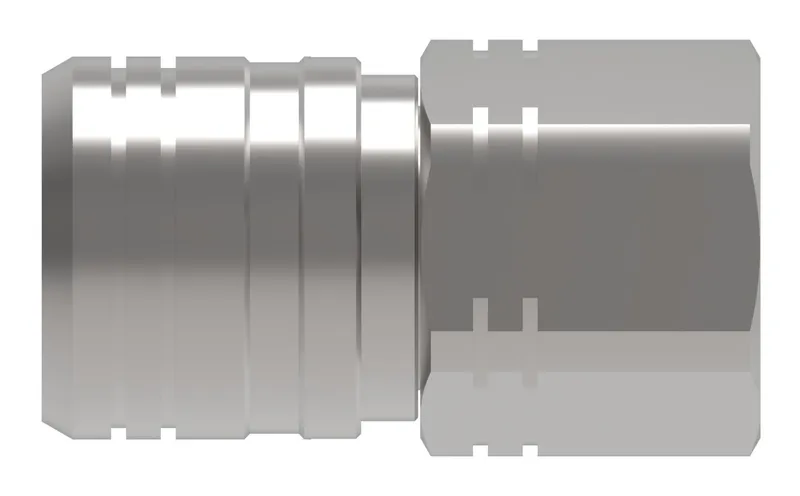

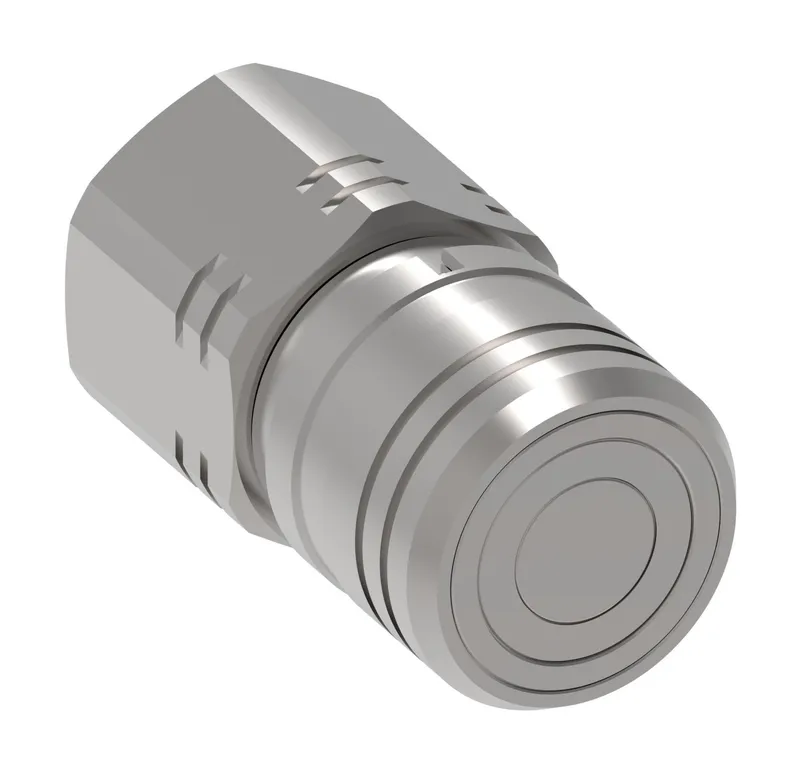

Danfoss 10FFS56UN

COUPLING,FF,F,3/8,CS,-6UNF,NBR

MPN: 10FFS56UN
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 10FFS56UN?

Danfoss COUPLING,FF,F,3/8,CS,-6UNF,NBR, manufacturer part number 10FFS56UN. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146122438
Air inclusion max cc	0.01
Angle shape	Straight
Application	Agriculture, Building material, Commercial vehicles, Fluid transfer, Hydraulics, Road vehicles
Body size	3/8
Brand	Danfoss
Burst pressure min psi	20300
Certifications	ISO 16028
Compliances	PED 2014/68 EU Article 4.3, REACH, RoHS Compliant
Connection style	Manual connect
End size 1	-6
End type 1	Female ORB port ISO 11926-1
Finish plating	Guardian sealtm
Flow rate GPM	10.60
Fluid compatibility	Hydraulic fluid
Fluid loss cc	0.00600
Hex size 1 IN	1.060
Item type	Female half
Latch type	Push to connect
Product length in	2.790
Product material	Carbon steel
Safety locking mechanism	Sleeve lock
Seal material	Nitrile(NBR)+Polyurethane(AU)
Sub brand	Hansen
Thread size 1	9/16-18 UNF
Torque lbs-ft	31.50
Valve type	2 way
Working pressure max psi	5800
Working temperature max F	212
Working temperature min F	-13
