Danfoss 1069X6X2

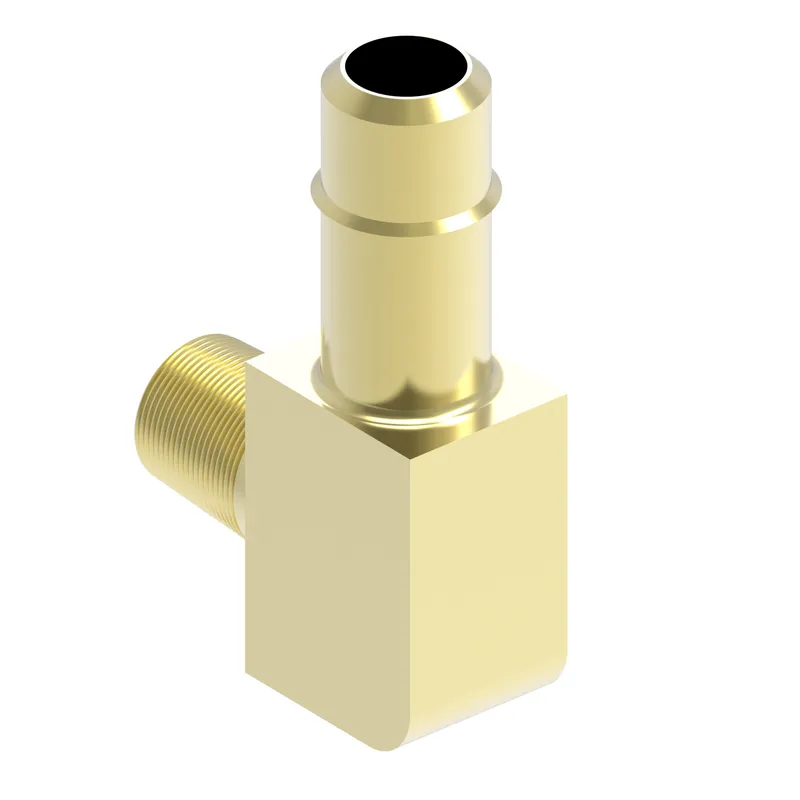

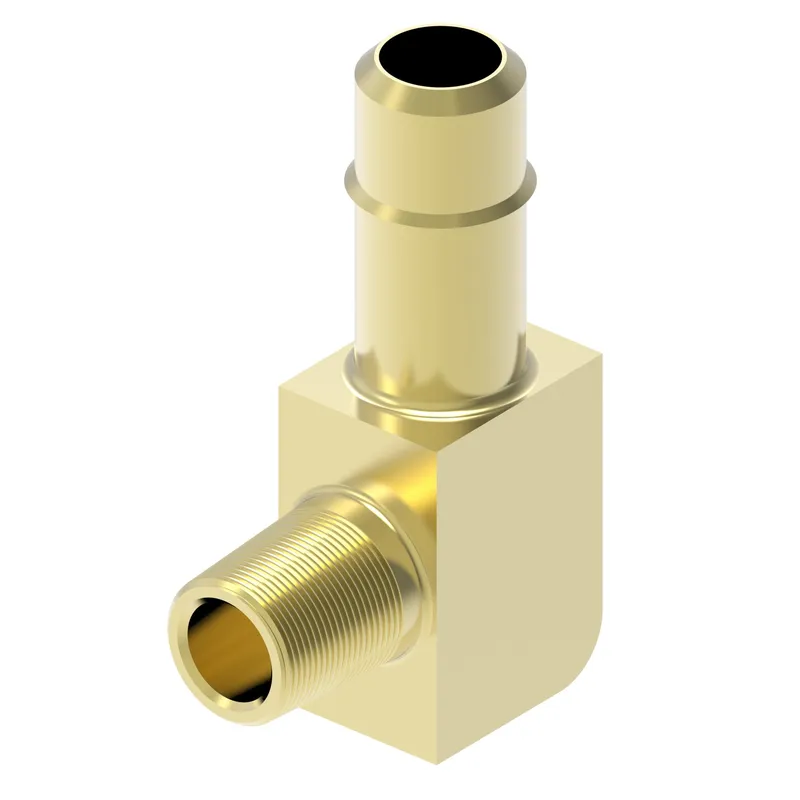

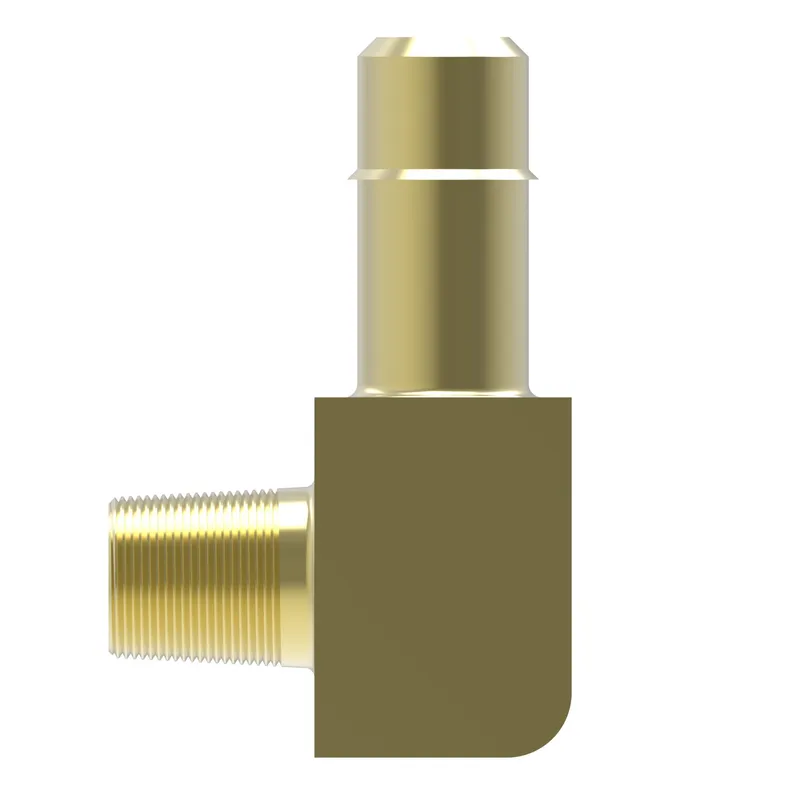

Adapter Mini Barb Brass 90D -6T x -2MP

MPN: 1069X6X2
Category: Adapters and swivel joints

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1069X6X2?

Danfoss Adapter Mini Barb Brass 90D -6T x -2MP, manufacturer part number 1069X6X2. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	725975757987
Angle shape	90 Degree
Brand	Danfoss
Drop dimension IN	0.590
Drop dimension MM	15.00
End type 1	Male pipe (NPTF)
End type 2	Male barb
Hex size 1 IN	0.430
Hex size 1 MM	10.900
Item type	Adapter-elbow
Product material	Brass
Thread sealant	No
Tube outside diameter 1 IN	0.250
Tube outside diameter 1 MM	6.4
Tube outside diameter 2 IN	0.200
Tube outside diameter 2 MM	5.1
Working temp max C	121
Working temp max F	250
Working temp min C	-54
Working temp min F	-65
