Danfoss 106-1198-006

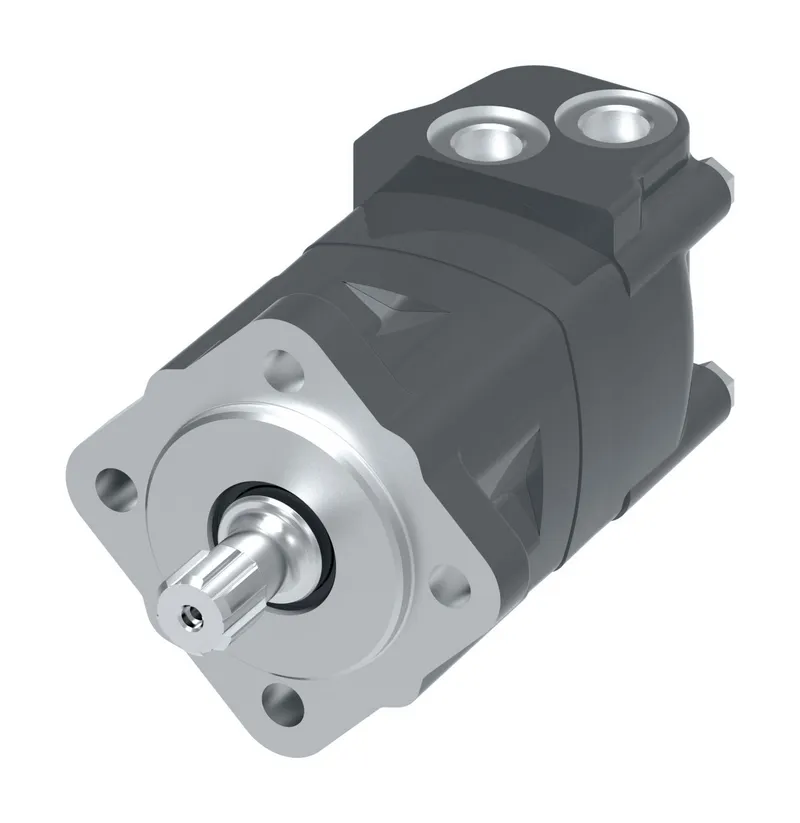

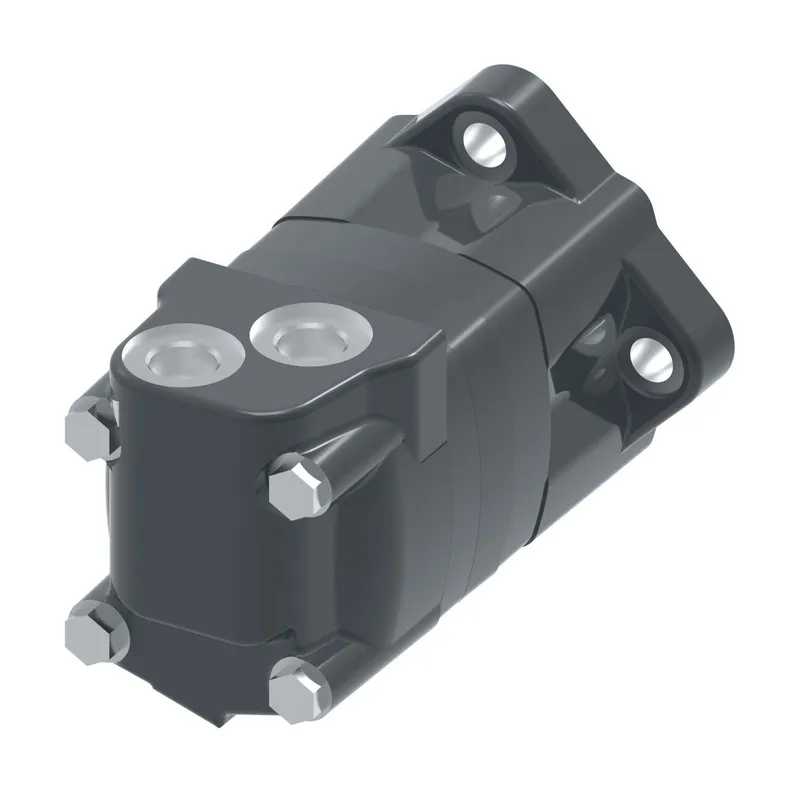

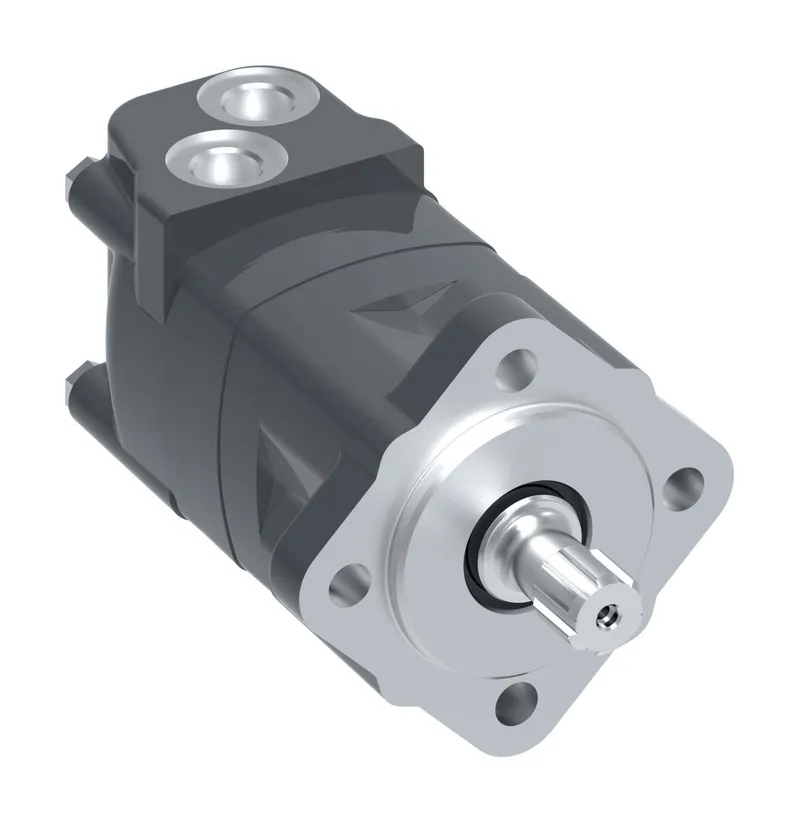

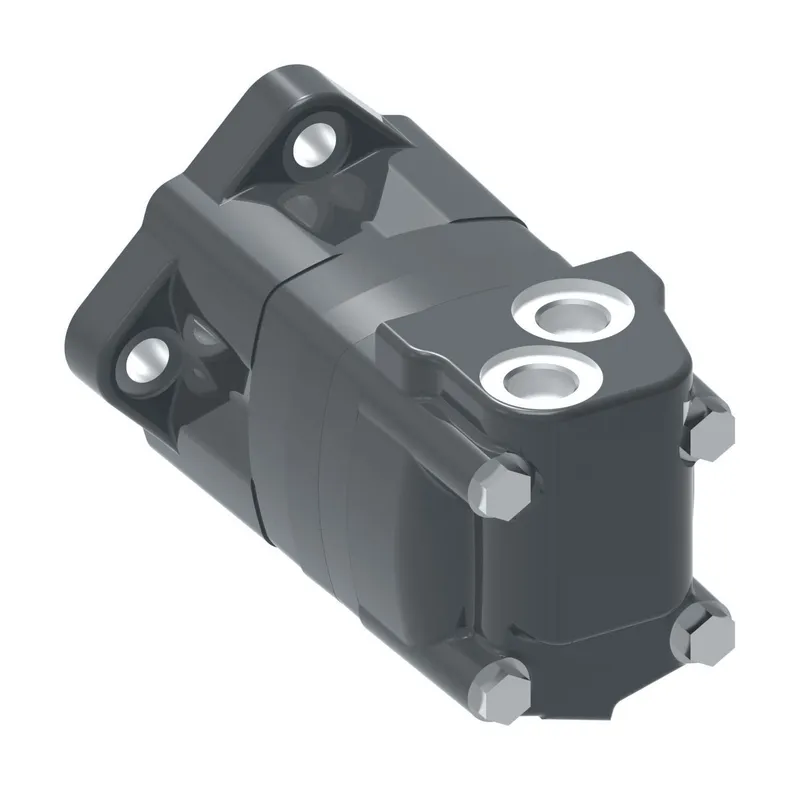

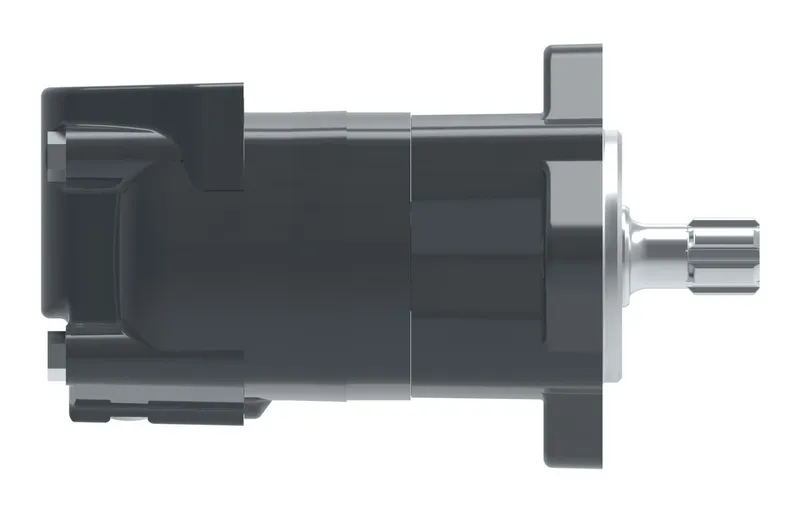

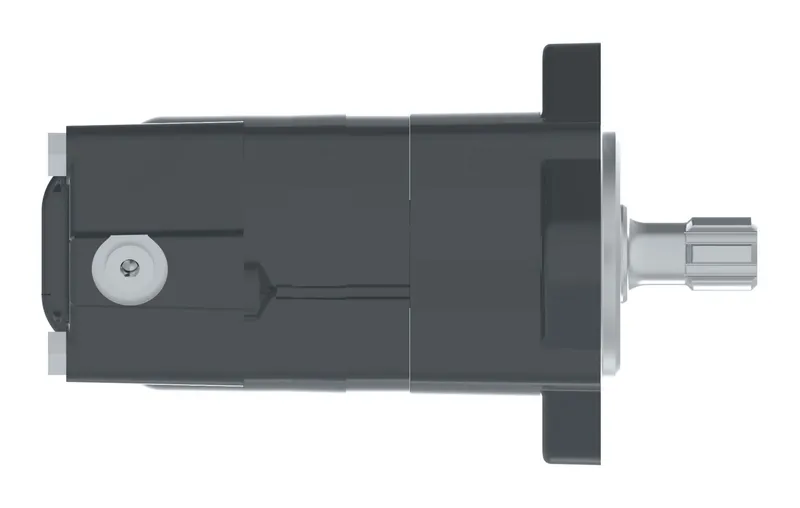

MOTOR-ORBITAL,2000 SERIES 395 [24.0], M02240BW00AG0200010000700ABAAF

MPN: 106-1198-006
Category: Danfoss orbital motor quick selector

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 106-1198-006?

Danfoss MOTOR-ORBITAL,2000 SERIES 395 [24.0], M02240BW00AG0200010000700ABAAF, manufacturer part number 106-1198-006. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Model Code	M02240BW00AG0200010000700ABAAF
Motor Series	2000 Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Motor size	395
Geometric displacement [cm3/r [in3/r]]	393.8 [24.03]
Motor type	Short
Motor function	Standard
Mounting flange type	8 Bolt - Short
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]	68.8 x 4.0, 92.1, M10 x 1.50-6H [2.71 x 0.16, 3.63, M10 x 1.50-6H] - Spec. Component
Shaft type	None
Shaft dimension	n/a
Shaft Key	n/a
Main port thread type	BSP
Main port style	Sideport - staggered
Main port dimension	G 1/2
Drain Port Dimension	G 1/4
Brake Release Port Dimension	n/a
Painted	Yes
Paint information	Primer, Black, Low gloss
Special Features Assembly	Standard
Dust seal	n/a
Shaft Seal	n/a
Seal Kit	No data available
Front bearing type	n/a
Rear bearing type	n/a
Orbital gearwheel set	Standard
Check valve function	Yes
Hydraulic valve function	None
Sensor	None
Packaging	Single pack
Name Tag	Danfoss name tag
Design code	06
Brand	Danfoss
Sub brand	Char-Lynn
