Danfoss 10513-52-20Z

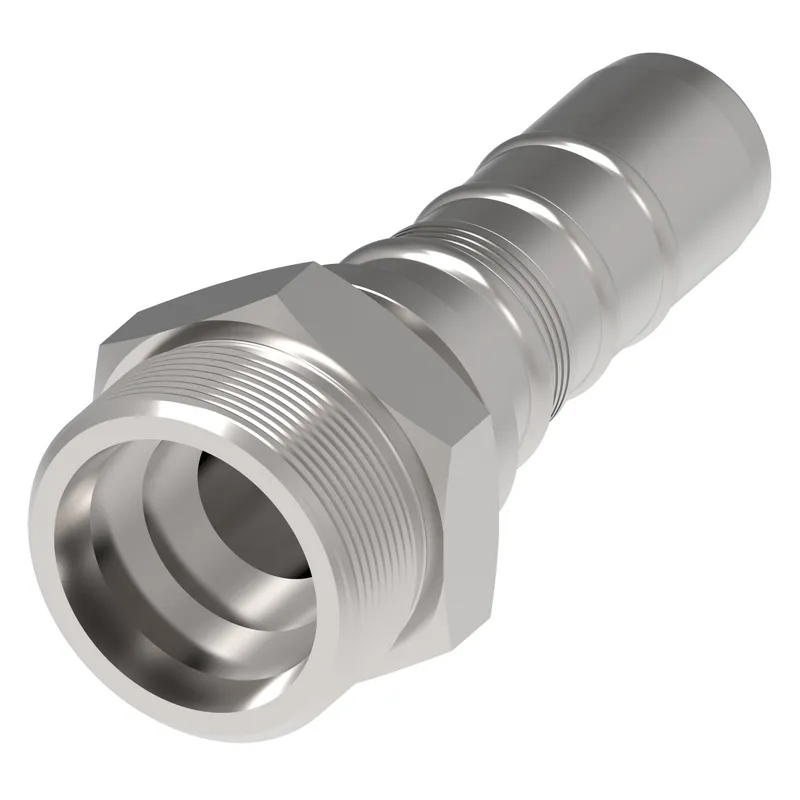

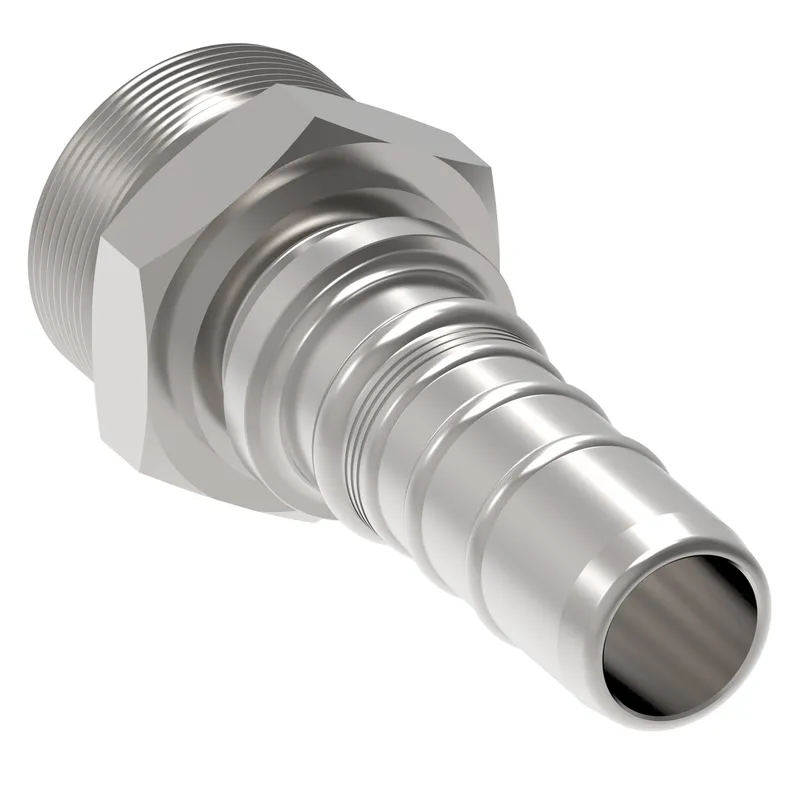

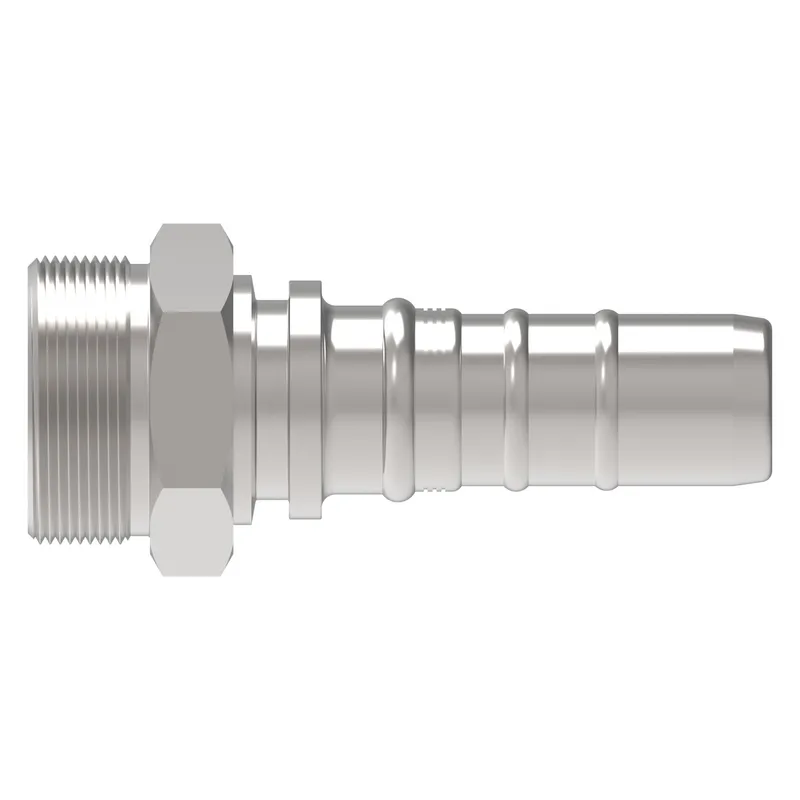

HOSE NIPPLE ASSY, 2P/20, EK/52, CS, STR

MPN: 10513-52-20Z
Category: Spiral hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 10513-52-20Z?

Danfoss HOSE NIPPLE ASSY, 2P/20, EK/52, CS, STR, manufacturer part number 10513-52-20Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	5.270
A dimension MM	134.000
Angle shape	Straight
Application	General industrial use, Hydraulic systems, Petroleum based fluids, Water based fluids
Brand	Winner by Danfoss
Compatible hose ID IN	1.250
Compatible hose ID MM	31.800
Construction Style	Crimp
End connection torque	245-258 lb-ft(334-352 Nm)
End type 1	24 deg. tube port heavy duty
End type 2	Line/hose/tube
Finish plating	Zinc plating
Hex size 1 IN	2.165
Hex size 1 MM	55.000
Hose cut off factor IN	2.070
Hose cut off factor MM	52.800
Hose size	-20
Inside diameter IN	0.9400
Inside diameter MM	24.0000
Product height in	2.500
Product height mm	63.500
Product length in	5.276
Product length mm	134.000
Product material	Carbon steel
Product width in	2.165
Product width mm	55.000 mm
Series	Winner 2-Piece
Thread sealant	No
Thread size 1	M52x2
