Danfoss 10508B-108-BG

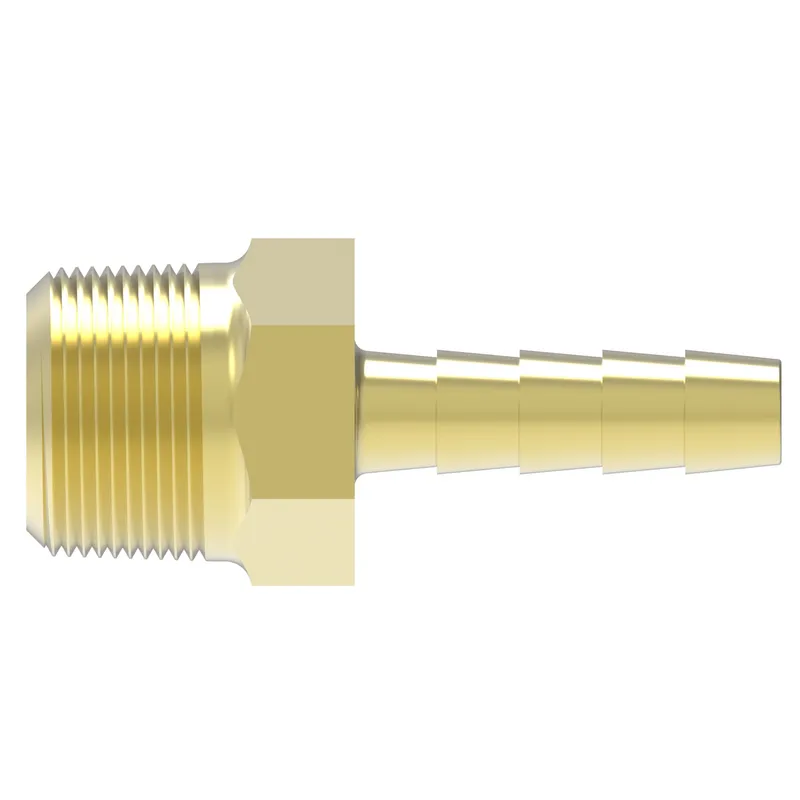

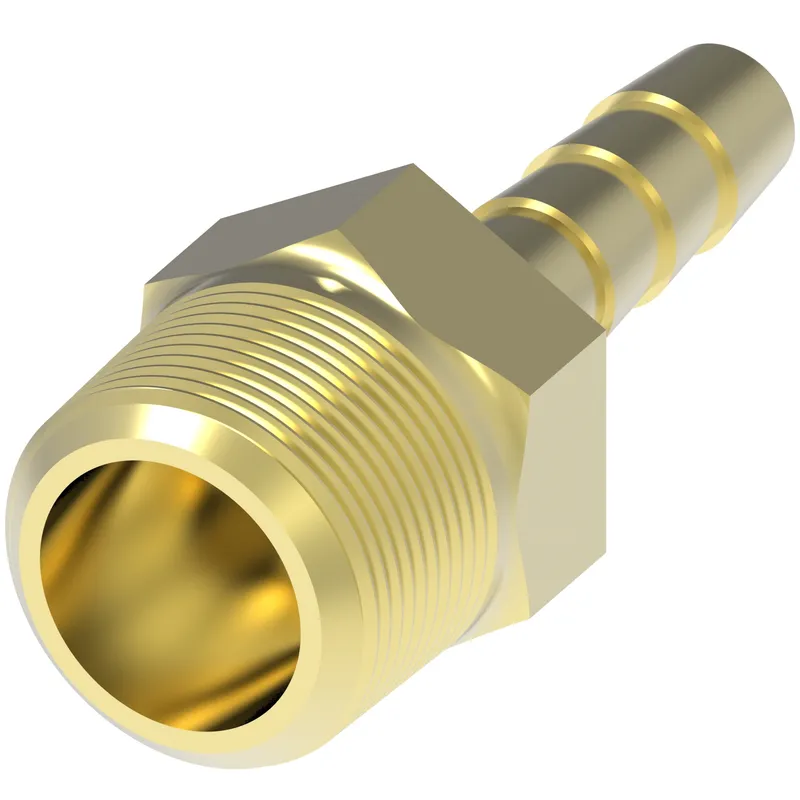

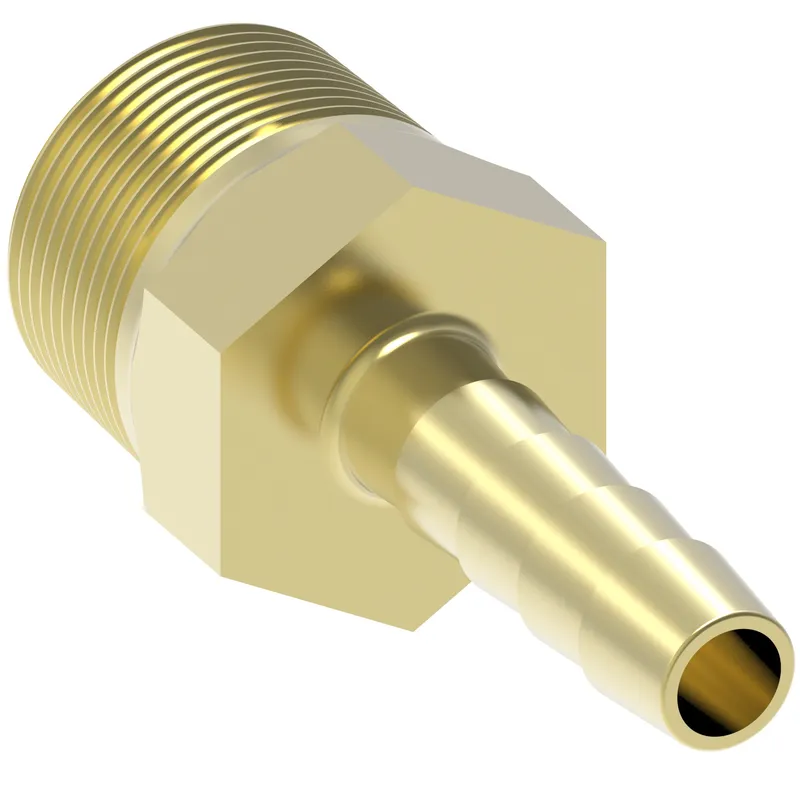

HOSE INSERT ASSY,B1/08,NPTF-M/08,B,STR

MPN: 10508B-108-BG
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 10508B-108-BG?

Danfoss HOSE INSERT ASSY,B1/08,NPTF-M/08,B,STR, manufacturer part number 10508B-108-BG. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	1.950
A dimension MM	49.530
Angle shape	Straight
Construction Style	Reusable
End type 1	Male pipe (NPTF)
Hex size 1 IN	0.866
Hex size 1 MM	22.0
Hex size 2 IN	0.000
Hose cut off factor IN	0.970
Hose cut off factor MM	24.790
Hose size	-8
Inside diameter IN	0.370
Inside diameter MM	9.390
Product height in	0.880
Product height mm	22.352
Product length in	1.950
Product length mm	49.530
Product material	Brass
Product width in	0.880
Product width mm	22.352 mm
Series	105 B
Thread size 1	1/2-14 NPTF
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
