Danfoss 105-1386-006

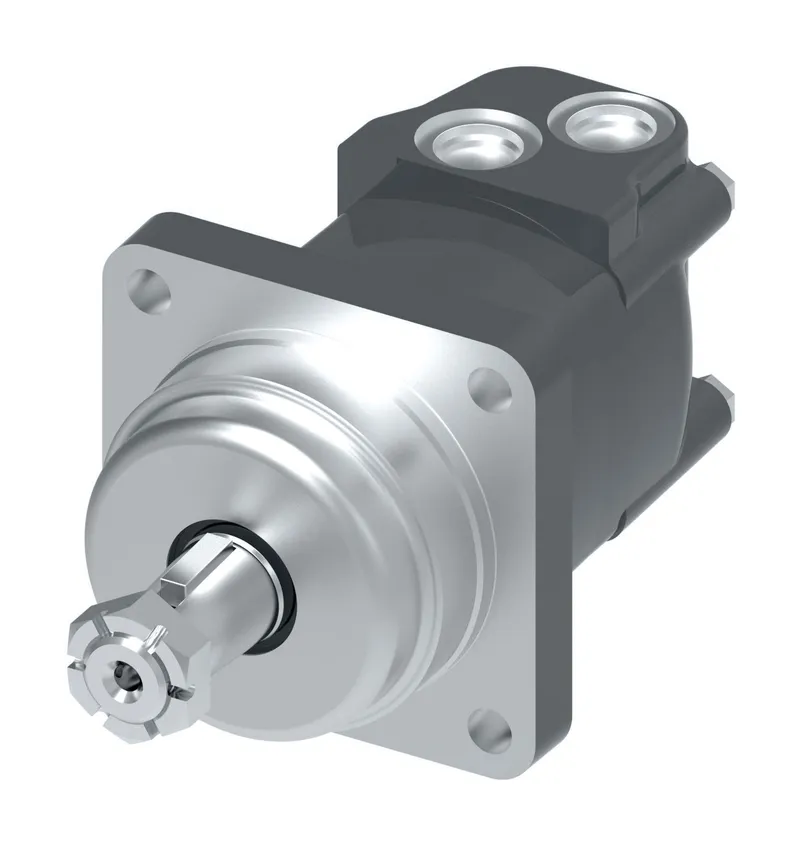

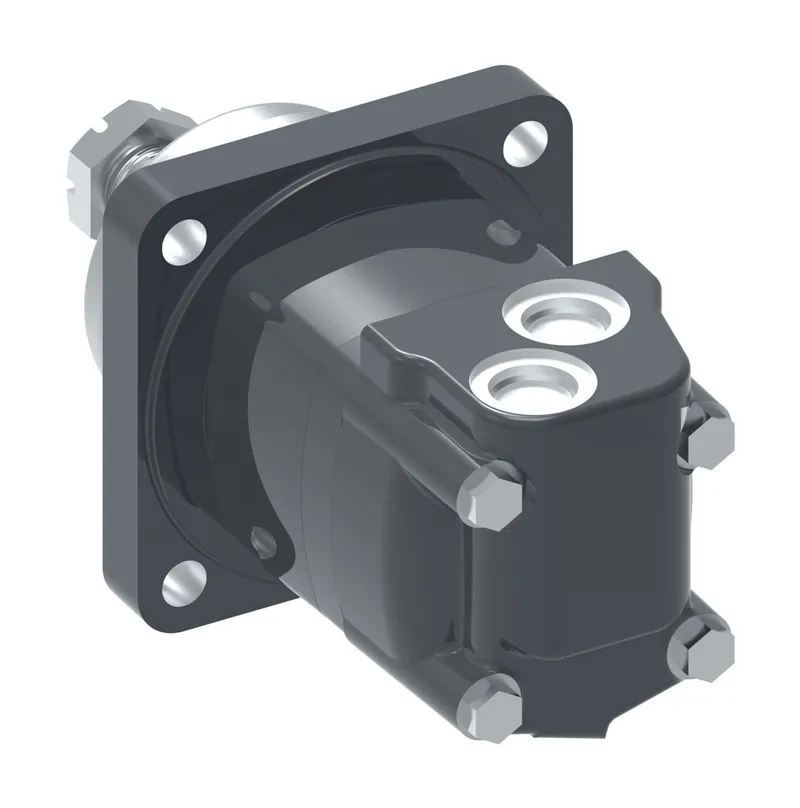

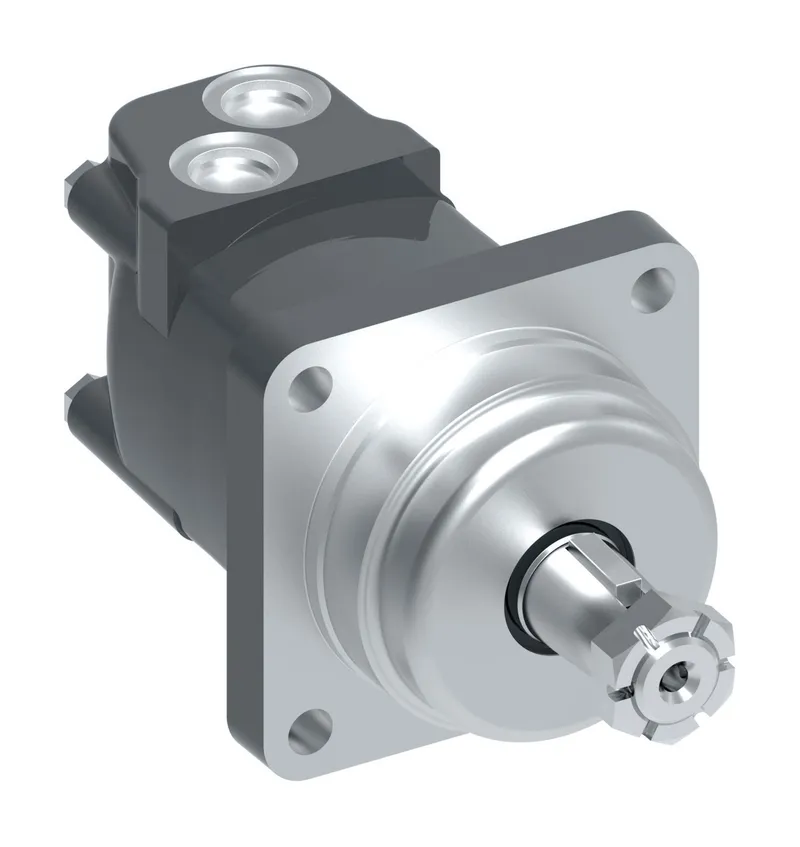

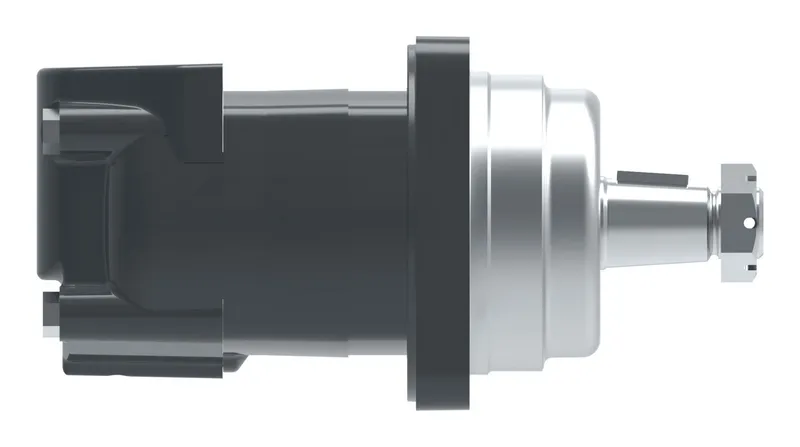

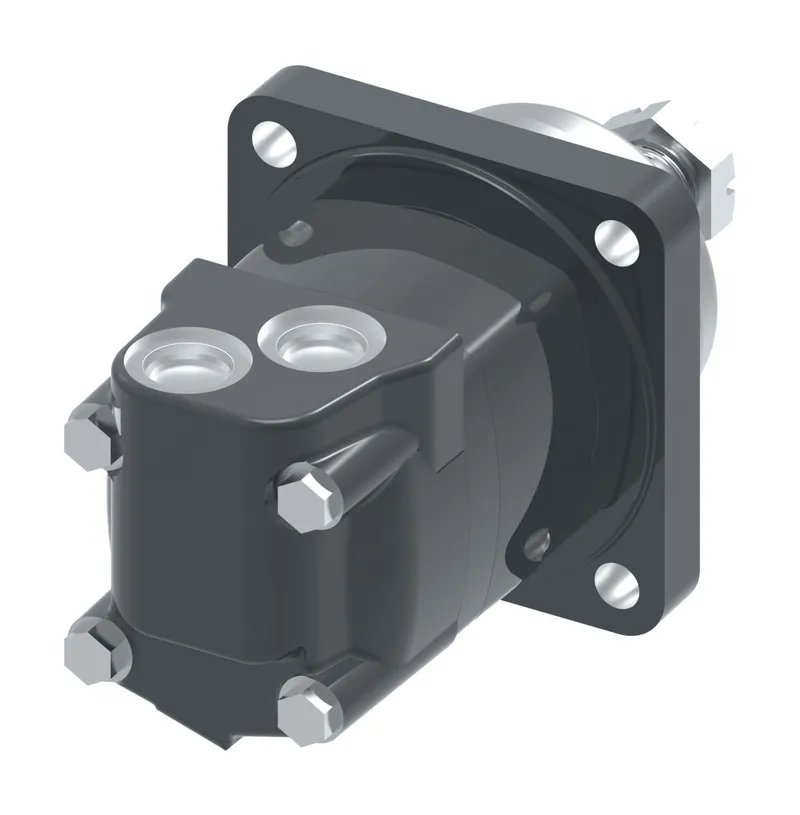

MOTOR-ORBITAL,2000 SERIES 395 [24.0], M02240BG03AA01000150000AEAFAAF

MPN: 105-1386-006
Category: Danfoss orbital motor quick selector

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 105-1386-006?

Danfoss MOTOR-ORBITAL,2000 SERIES 395 [24.0], M02240BG03AA01000150000AEAFAAF, manufacturer part number 105-1386-006. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Model Code	M02240BG03AA01000150000AEAFAAF
Motor Series	2000 Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Motor size	395
Geometric displacement [cm3/r [in3/r]]	393.8 [24.03]
Motor type	Wheel
Motor function	Standard
Mounting flange type	4 Bolt - Wheel
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]	108.0 x 6.4, 137.7, 13.6 [4.25 x 0.25, 5.42, 0.54] Rear: 114.3 x #, 137.7, 13.6 [4.50 x #, 5.42, 0.54] - Spec. Component
Shaft dimension	Dia. 1 1/4 inch, 1:8 SAE J501, 1 - 20 UNEF-2A thread in shaft end
Shaft Key	Square key, 5/16 x 1 inch
Main port thread type	UN / UNF
Main port style	Sideport - staggered
Main port dimension	7/8 - 14 UNF-2B SAE O-Ring port
Drain Port Dimension	7/16 - 20 UNF-2B SAE O-Ring port
Brake Release Port Dimension	n/a
Painted	Yes
Paint information	Primer, Black, Low gloss
Special Features Assembly	Turned component
Dust seal	Extreme duty seal guard
Shaft Seal	NBR - Standard
Seal Kit	9900395-000
Front bearing type	Tapered roller bearing
Rear bearing type	Tapered roller bearing
Orbital gearwheel set	Standard
Check valve function	Yes
Hydraulic valve function	None
Sensor	None
Packaging	Bulk box
Name Tag	Danfoss name tag
Design code	06
Brand	Danfoss
Sub brand	Char-Lynn
