Danfoss 105

CPLG100Series F Half Brass 4BodyX6MP

MPN: 105
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 105?

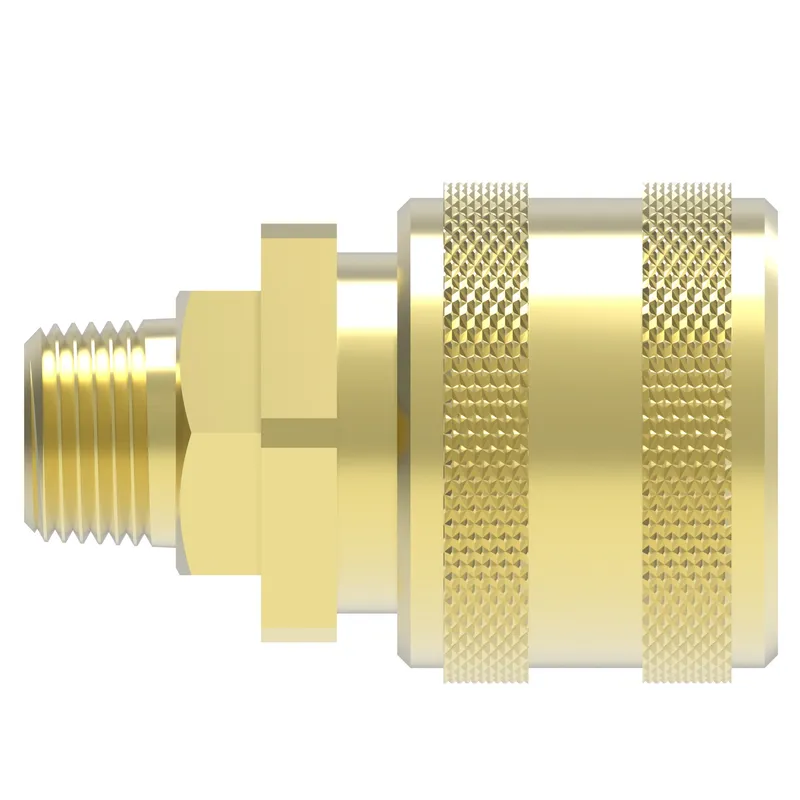

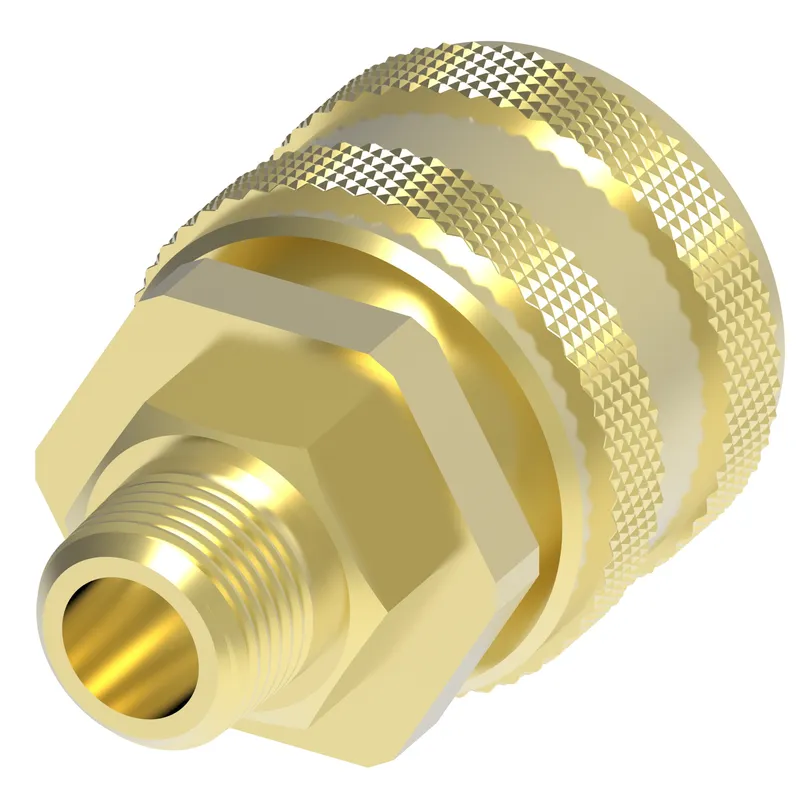

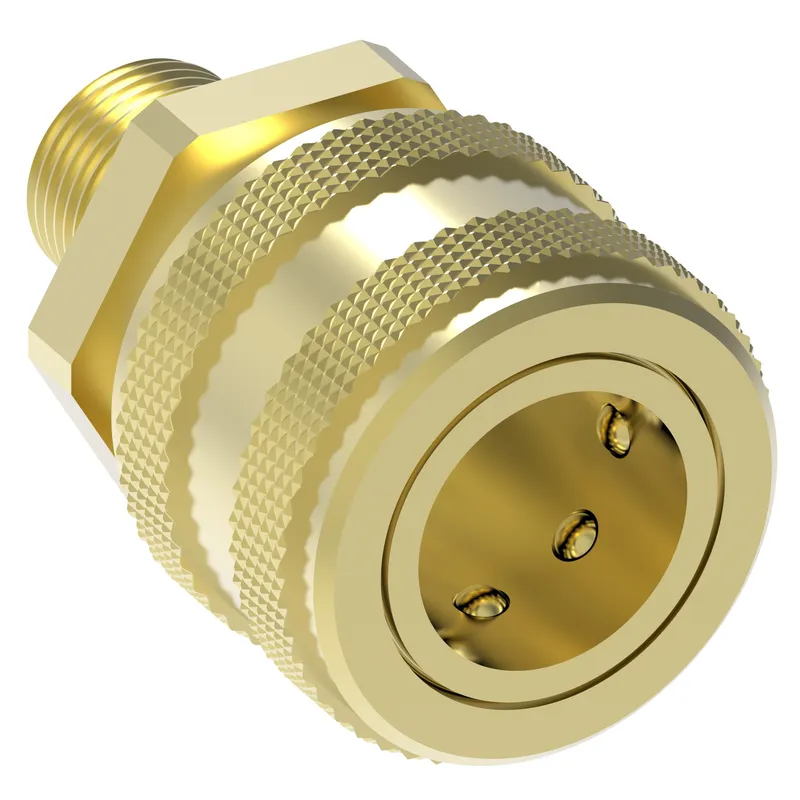

Danfoss CPLG100Series F Half Brass 4BodyX6MP, manufacturer part number 105. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146195852
Angle shape	Straight
Body size	1/4
Brand	Danfoss
Burst pressure min bar	193
Burst pressure min psi	2800
Connection style	Manual connect
End size 2	-6
End type 1	Female Push to Connect
End type 2	Male pipe (NPTF)
Finish plating	Nickel
Flow rate GPM	149.52
Flow rate LPM	566.00
Fluid compatibility	Compressed air and other gases
Hex size 1 IN	0.690
Hex size 1 MM	17.526
Item type	Female half
Latch type	Push/pull
Product height in	1.000
Product height mm	25.400
Product length in	2.010
Product length mm	53.086
Product material	Brass
Product width in	1.000
Product width mm	25.400 mm
Safety locking mechanism	Sleeve lock
Seal material	Nitrile (NBR)
Sub brand	Hansen
Valve type	2 way
Working pressure max psi	350
Working pressure max BAR	24
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40
