Danfoss 10412N-45-20Z

HOSE NIPPLE ASSY,2P/20,DKOL/45,CS,STR

MPN: 10412N-45-20Z
Category: Spiral hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

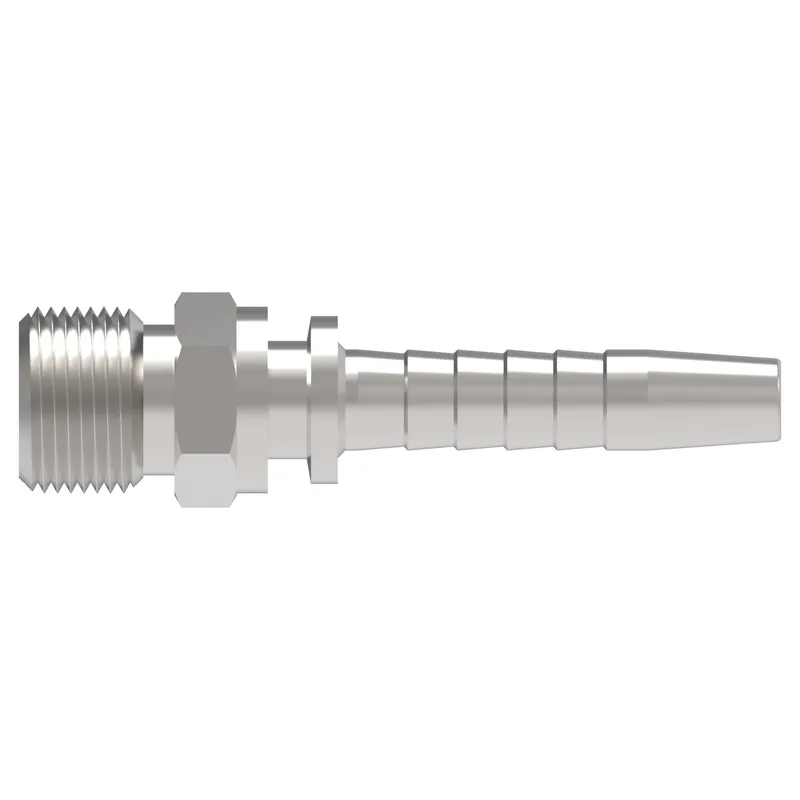

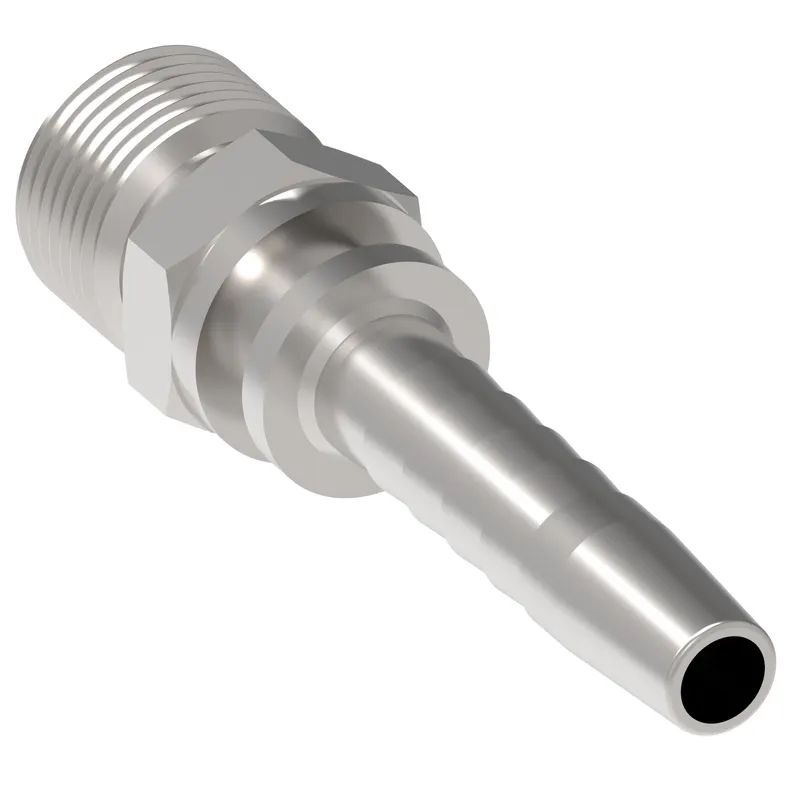

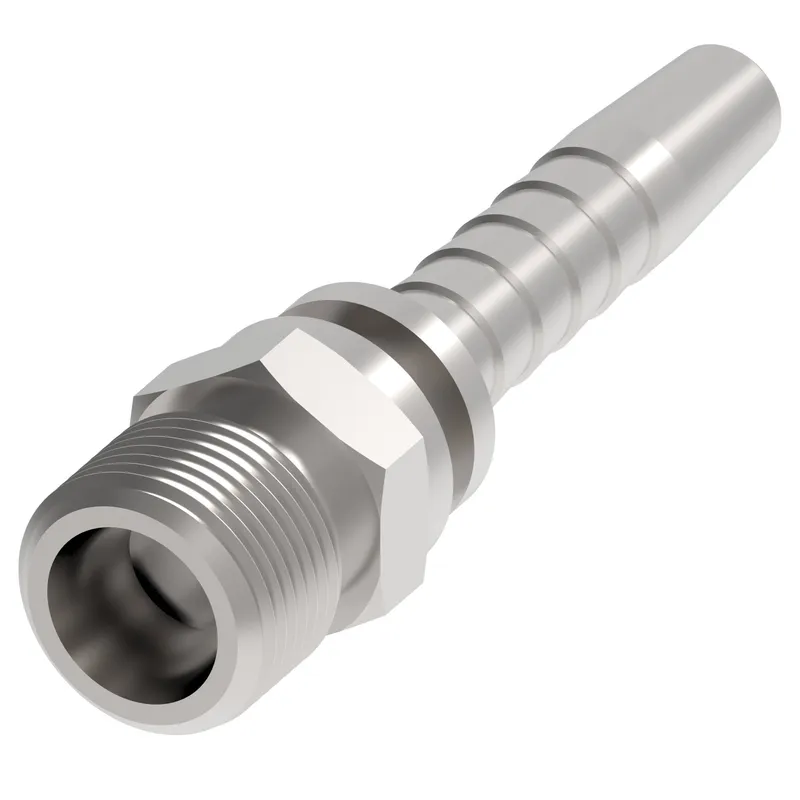

What is the Danfoss 10412N-45-20Z?

Danfoss HOSE NIPPLE ASSY,2P/20,DKOL/45,CS,STR, manufacturer part number 10412N-45-20Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	3.960
A dimension MM	100.500
Angle shape	Straight
Application	General industrial use, Hydraulic systems, Petroleum based fluids, Water based fluids
Brand	Winner by Danfoss
Compatible hose ID IN	1.250
Compatible hose ID MM	31.800
Construction Style	Crimp
End type 1	24 deg. DKO swivel light duty
End type 2	Line/hose/tube
Finish plating	Zinc plating
Hex size 1 IN	1.811
Hex size 1 MM	46.000
Hose cut off factor IN	1.510
Hose cut off factor MM	38.600
Hose size	-20
Inside diameter IN	1.0000
Inside diameter MM	25.6000
Product height in	2.087
Product height mm	53.000
Product length in	3.957
Product length mm	100.500
Product material	Carbon steel
Product width in	1.811
Product width mm	46.000 mm
Series	Winner 2-Piece
Thread sealant	No
Thread size 1	M45x2
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
