Danfoss 104-4786-006

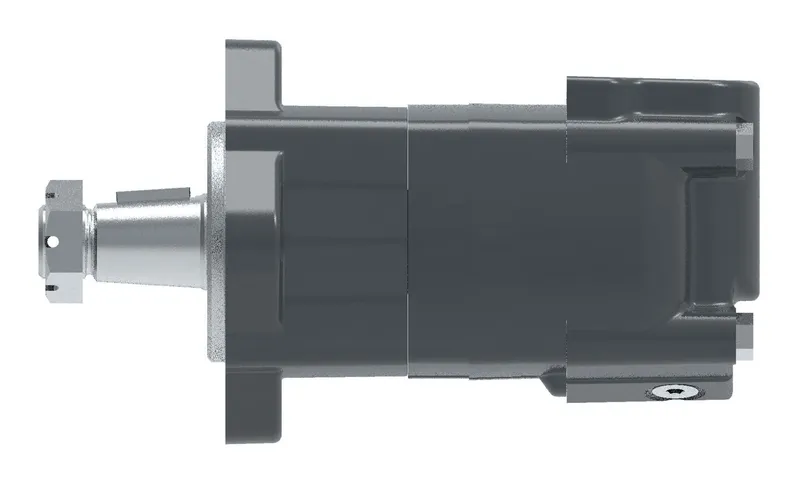

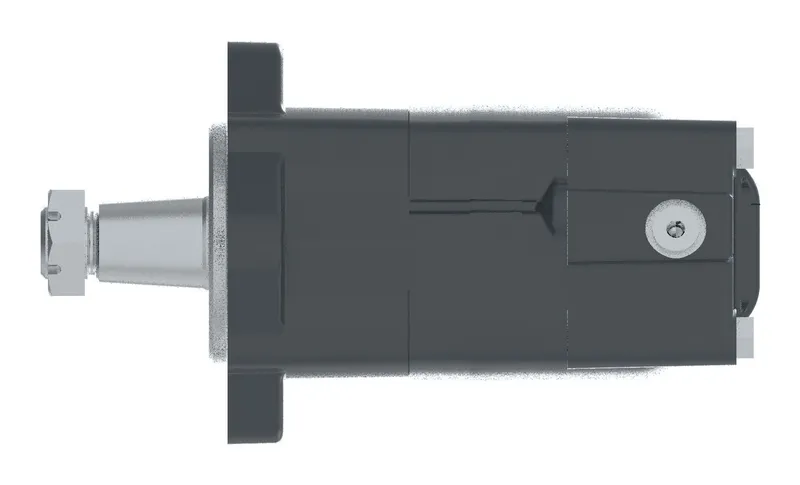

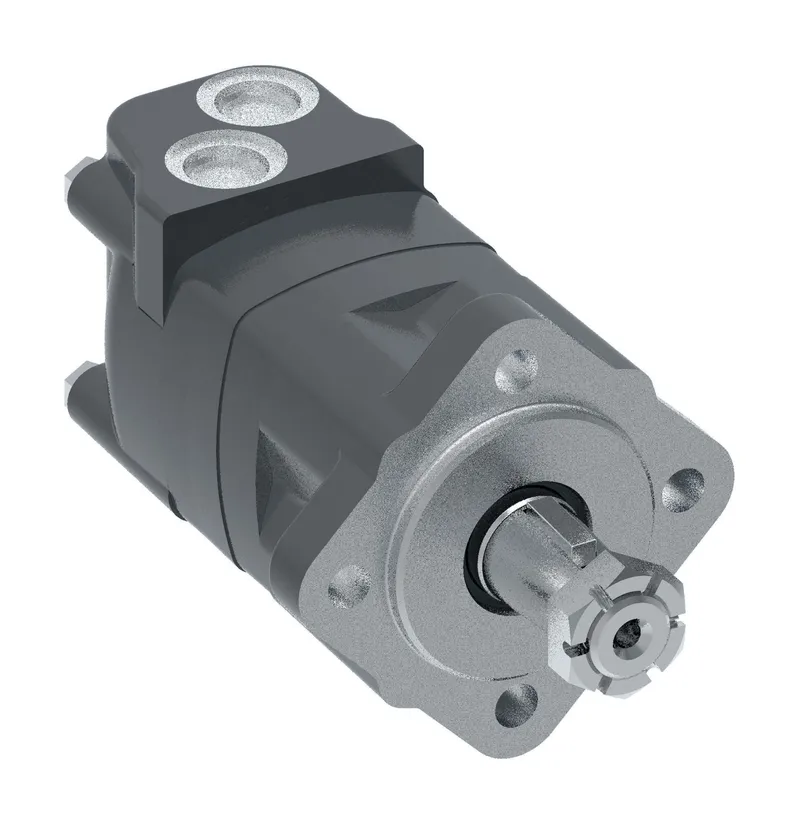

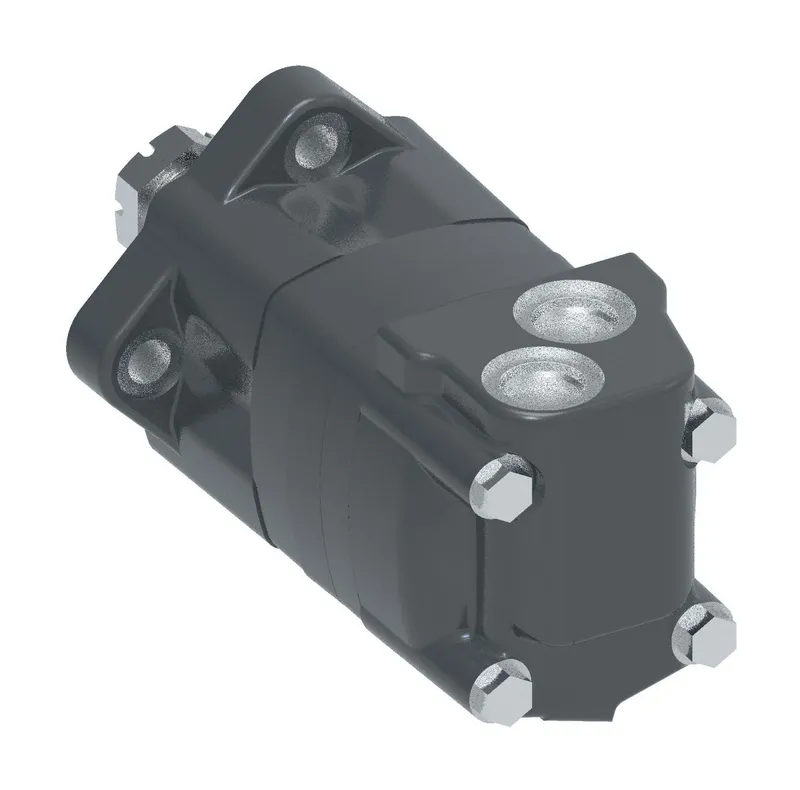

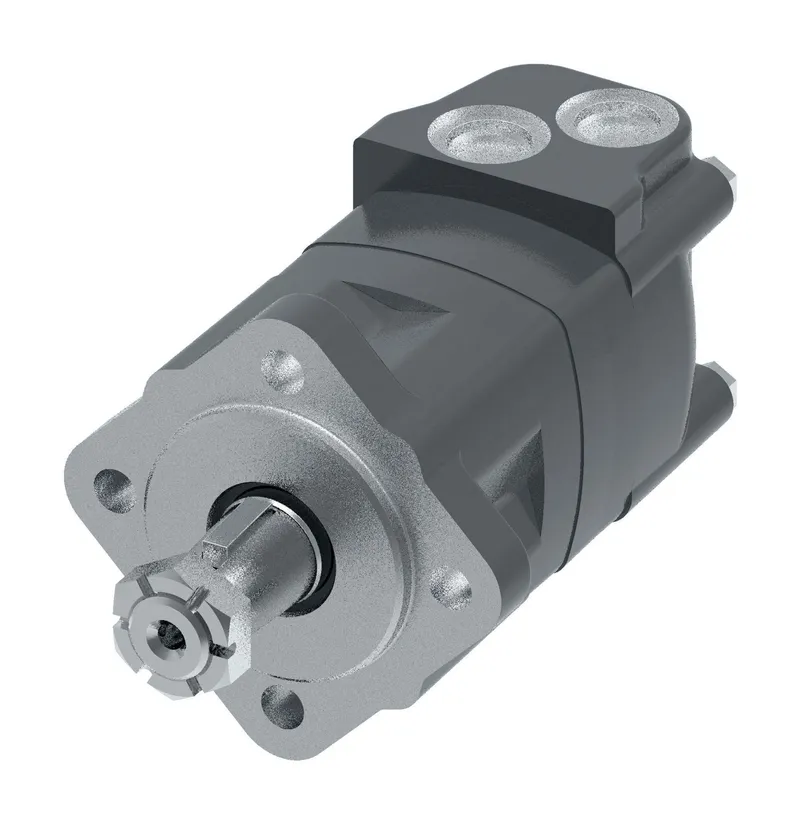

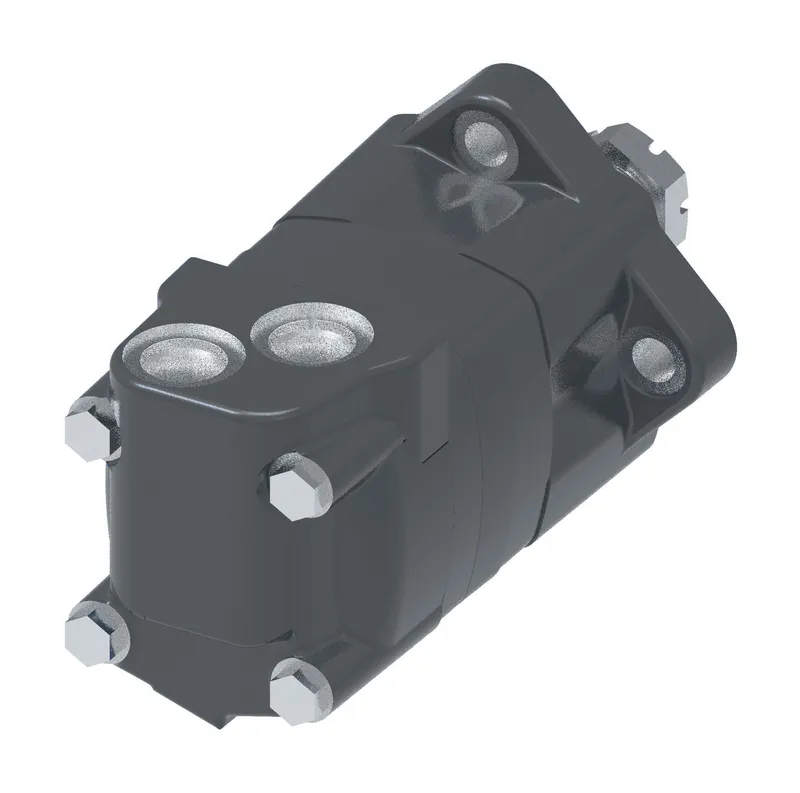

MOTOR-ORBITAL,2000 SERIES 90 [5.5], M02055AH19BE15000150000ABABAUF

MPN: 104-4786-006
Category: Danfoss orbital motor quick selector

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 104-4786-006?

Danfoss MOTOR-ORBITAL,2000 SERIES 90 [5.5], M02055AH19BE15000150000ABABAUF, manufacturer part number 104-4786-006. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Model Code	M02055AH19BE15000150000ABABAUF
Motor Series	2000 Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Motor size	90
Geometric displacement [cm3/r [in3/r]]	90.6 [5.53]
Motor type	Standard
Motor function	Standard
Mounting flange type	4 Bolt - Square
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]	82.6 x 6.4, 106.4, 13.6 [3.25 x 0.25, 4.19, 0.54]
Shaft type	Straight
Shaft dimension	Dia. 25 mm, M8 x 1.25-6H thread in shaft end
Shaft Key	Rectangular key, 8 x 7 x 32 mm
Main port thread type	Metric
Main port style	Sideport - 180 deg to each other
Main port dimension	M22 x 1.5-6H O-Ring port
Drain Port Dimension	M12 x 1.5-6H O-ring port
Brake Release Port Dimension	n/a
Painted	Yes
Paint information	Primer, Black, Low gloss
Special Features Assembly	Direction of rotation
Dust seal	Extreme duty seal guard
Shaft Seal	NBR - Standard
Seal Kit	9900395-000
Front bearing type	Tapered roller bearing
Rear bearing type	Tapered roller bearing
Orbital gearwheel set	Standard
Check valve function	Yes
Hydraulic valve function	None
Sensor	None
Packaging	Single pack
Name Tag	Customized
Design code	06
Brand	Danfoss
Sub brand	Char-Lynn
