Danfoss 104-4324-006

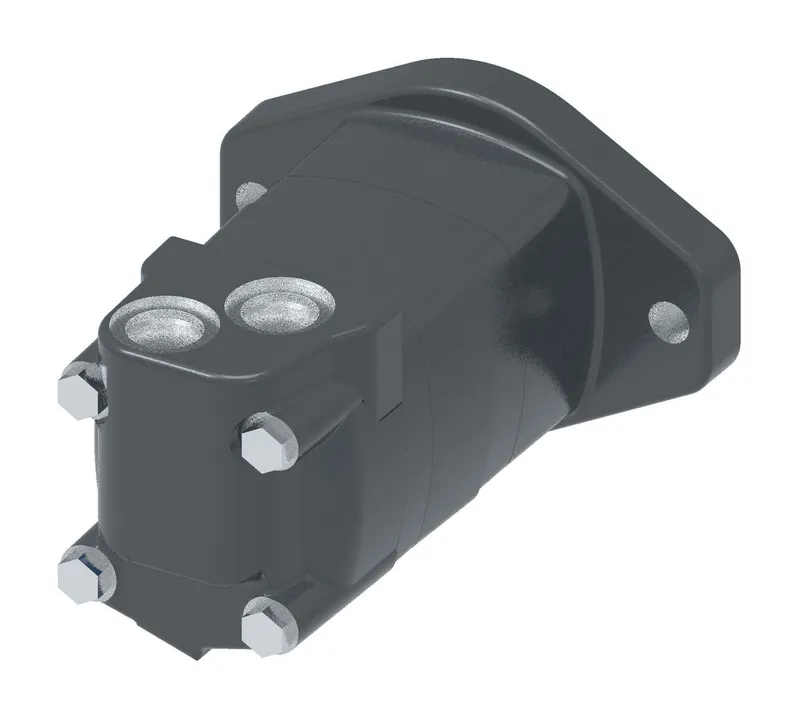

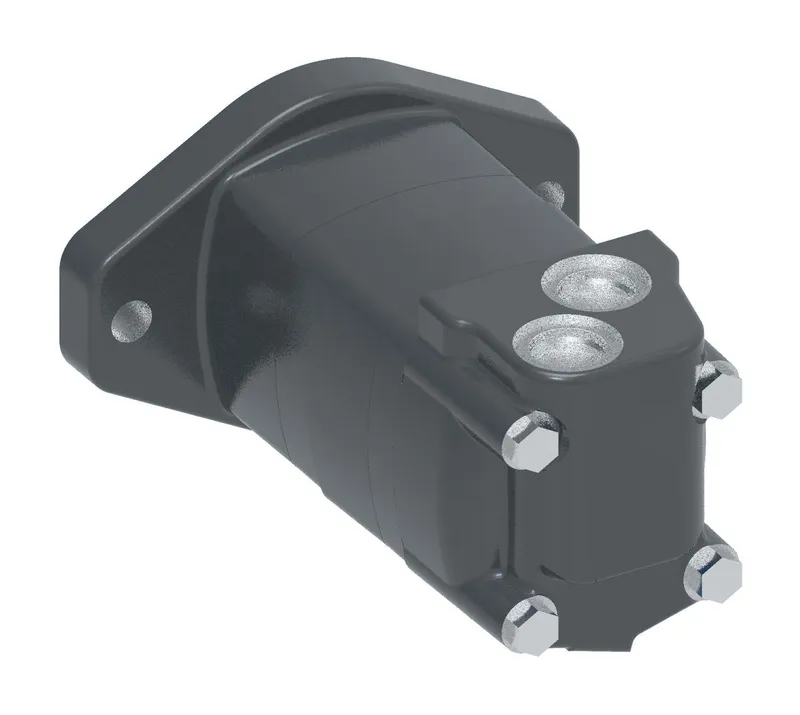

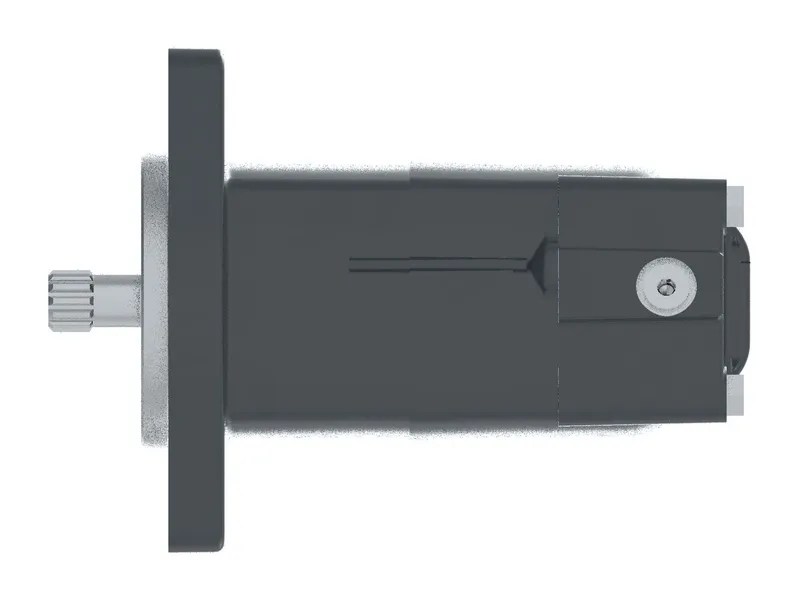

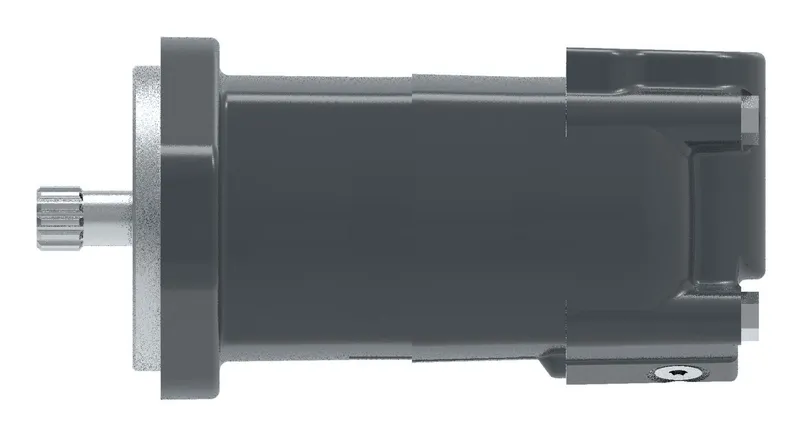

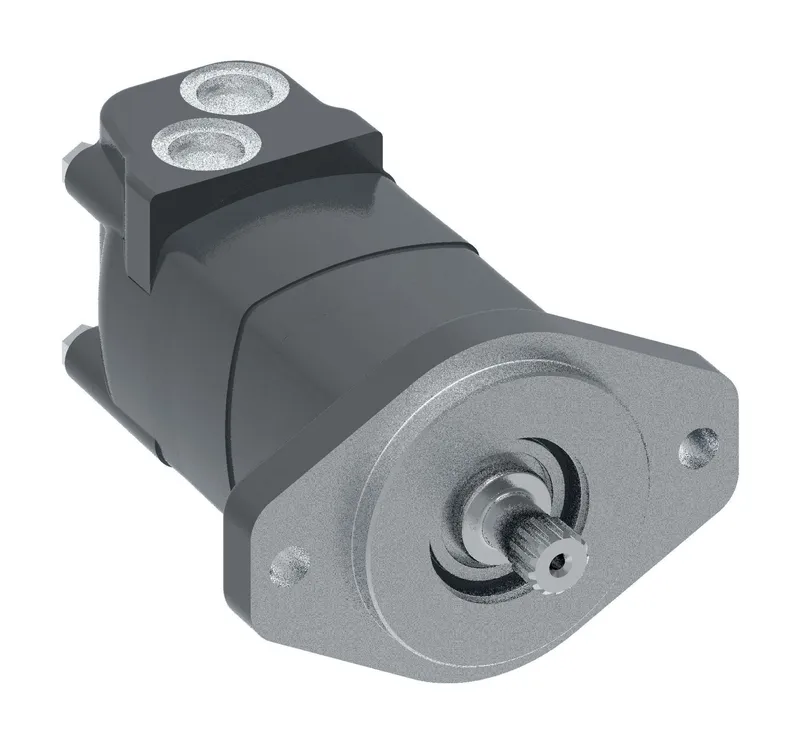

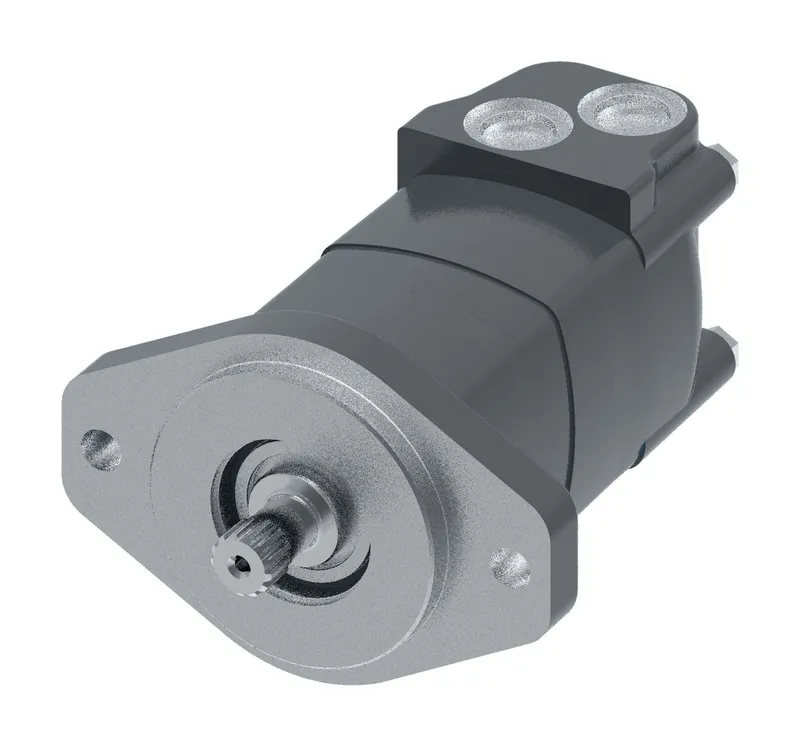

2K MOTOR/SPSEN, M02096AF07AA0100010AA0000AAAAF

MPN: 104-4324-006
Category: Danfoss orbital motor quick selector

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 104-4324-006?

Danfoss 2K MOTOR/SPSEN, M02096AF07AA0100010AA0000AAAAF, manufacturer part number 104-4324-006. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Model Code	M02096AF07AA0100010AA0000AAAAF
Motor Series	2000 Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Motor size	160
Geometric displacement [cm3/r [in3/r]]	158.1 [9.65]
Motor type	Standard
Motor function	Standard
Mounting flange type	2 Bolt - B
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]	101.6 x 9.4, 146.0, 14.4 [4.00 x 0.37, 5.75, 0.57] SAE B
Shaft type	Splined
Shaft dimension	Dia. 7/8 inch, 13T
Shaft Key	n/a
Main port thread type	UN / UNF
Main port style	Sideport - staggered
Main port dimension	7/8 - 14 UNF-2B SAE O-Ring port
Drain Port Dimension	7/16 - 20 UNF-2B SAE O-Ring port
Brake Release Port Dimension	n/a
Painted	No
Paint information	n/a
Special Features Assembly	Standard
Dust seal	Standard
Shaft Seal	NBR - Standard
Seal Kit	61258-000
Front bearing type	Tapered roller bearing
Rear bearing type	Tapered roller bearing
Orbital gearwheel set	Standard
Check valve function	Yes
Hydraulic valve function	None
Sensor	Speed, Hall effect, 30 pulses, 127 mm [5.0 inch] wire length, Packard weather pac shroud connector
Packaging	Single pack
Name Tag	Danfoss name tag
Design code	06
