Danfoss 104-4301-006

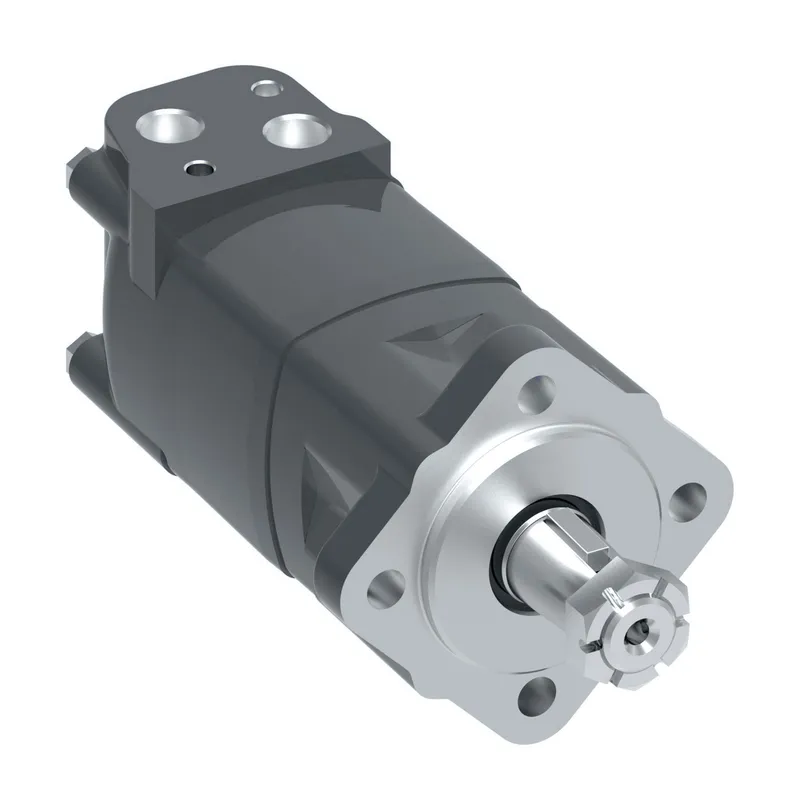

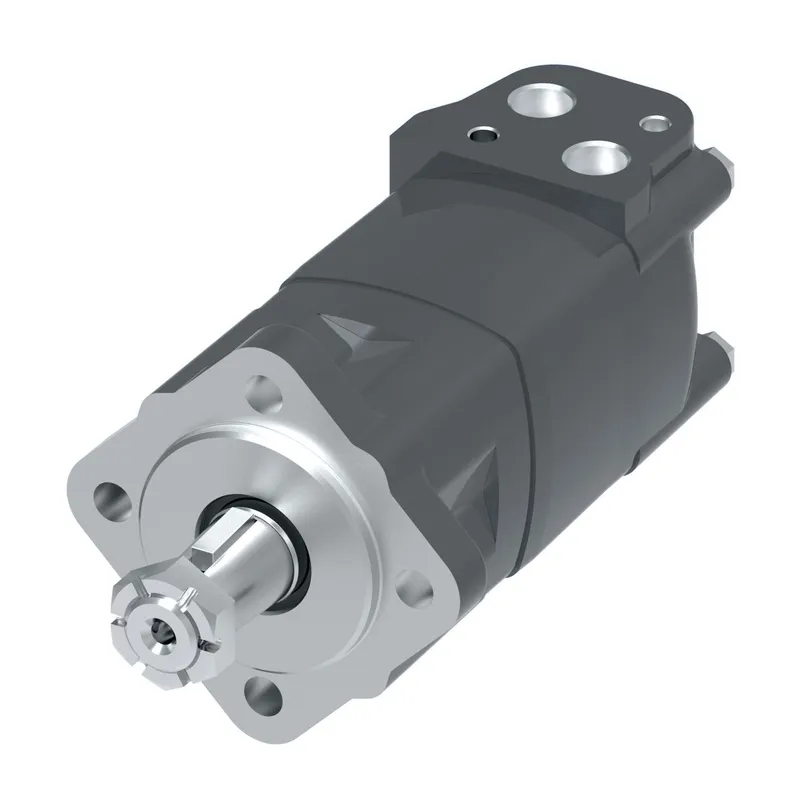

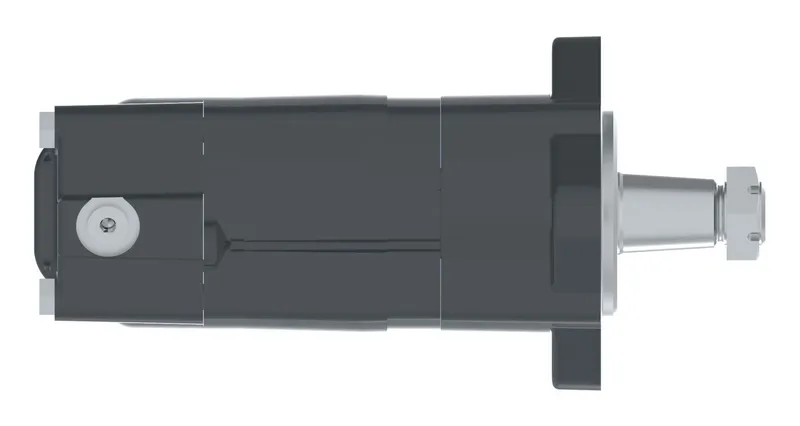

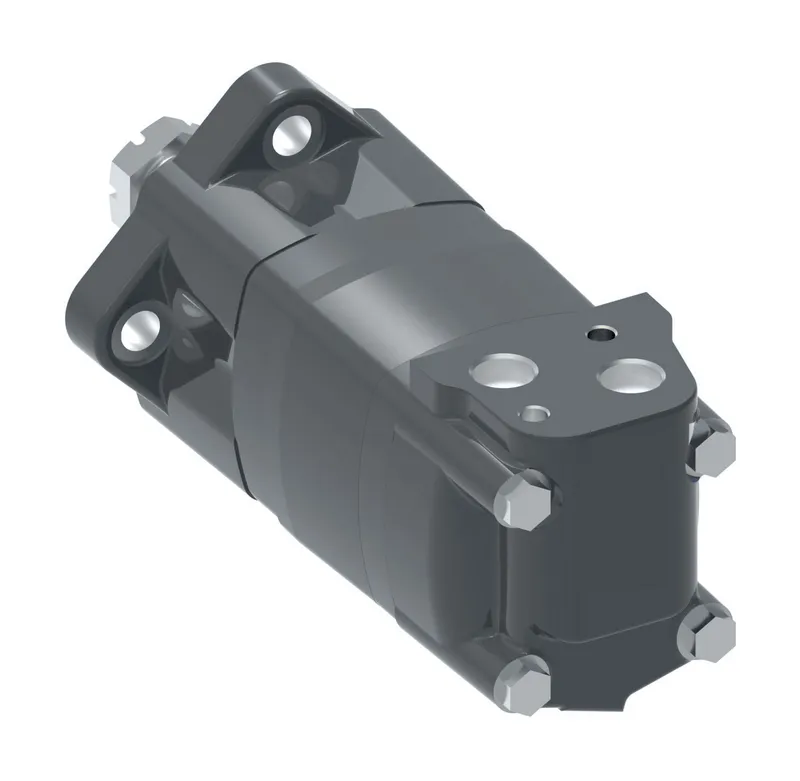

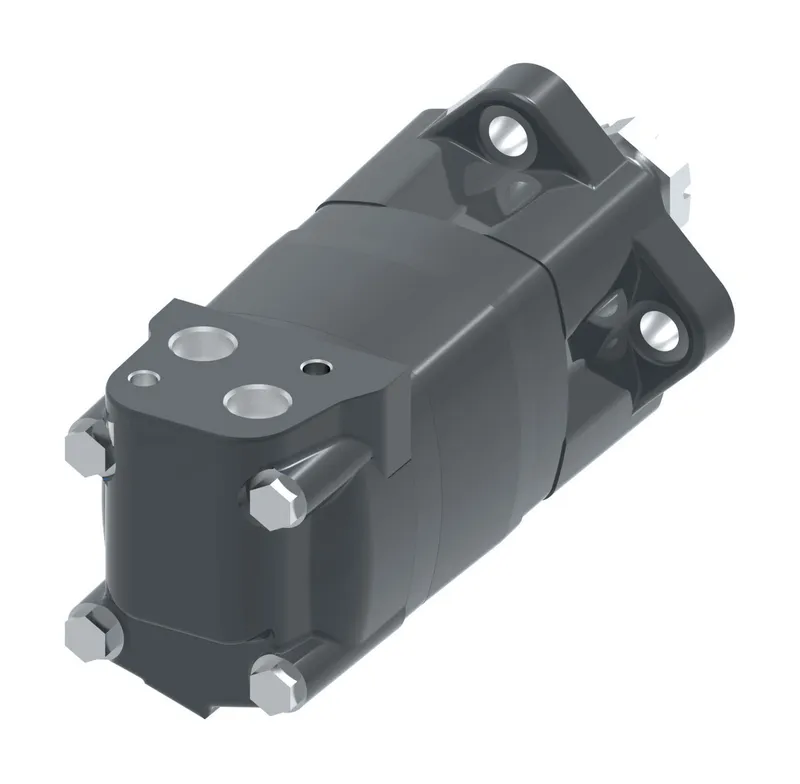

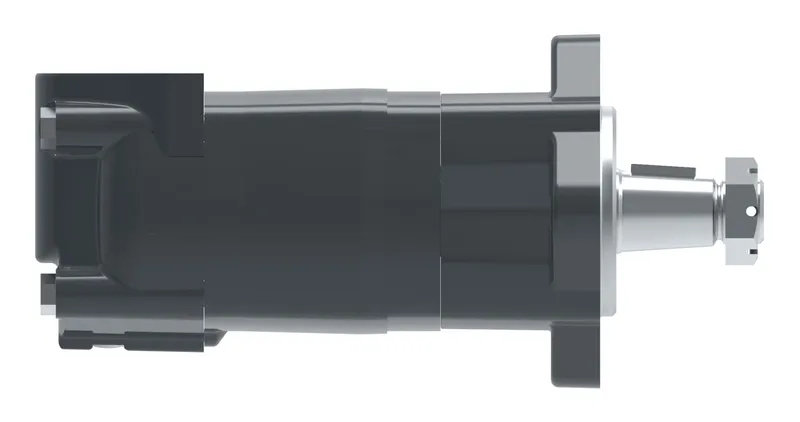

2K MOTOR, M02149AH03AS02000330003ABAAAAF

MPN: 104-4301-006
Category: Danfoss orbital motor quick selector

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 104-4301-006?

Danfoss 2K MOTOR, M02149AH03AS02000330003ABAAAAF, manufacturer part number 104-4301-006. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Model Code	M02149AH03AS02000330003ABAAAAF
Motor Series	2000 Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Motor size	245
Geometric displacement [cm3/r [in3/r]]	244.3 [14.91]
Motor type	Standard
Motor function	Standard
Mounting flange type	4 Bolt - Square
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]	82.6 x 6.4, 106.4, 13.6 [3.25 x 0.25, 4.19, 0.54]
Shaft dimension	Dia. 1 1/4 inch, 1:8 SAE J501, 1 - 20 UNEF-2A thread in shaft end
Shaft Key	Square key, 5/16 x 1 inch
Main port thread type	BSP
Main port style	Sideport - staggered
Main port dimension	G 1/2, 2 x M10 x 1.5-6H block mounting threads
Drain Port Dimension	G 1/4
Brake Release Port Dimension	n/a
Painted	No
Paint information	n/a
Special Features Assembly	Direction of rotation
Dust seal	Standard
Shaft Seal	NBR - High pressure
Seal Kit	9900876-000
Front bearing type	Tapered roller bearing
Rear bearing type	Tapered roller bearing
Orbital gearwheel set	Tight
Check valve function	Yes
Hydraulic valve function	None
Sensor	None
Packaging	Single pack
Name Tag	Danfoss name tag
Design code	06
