Danfoss 104

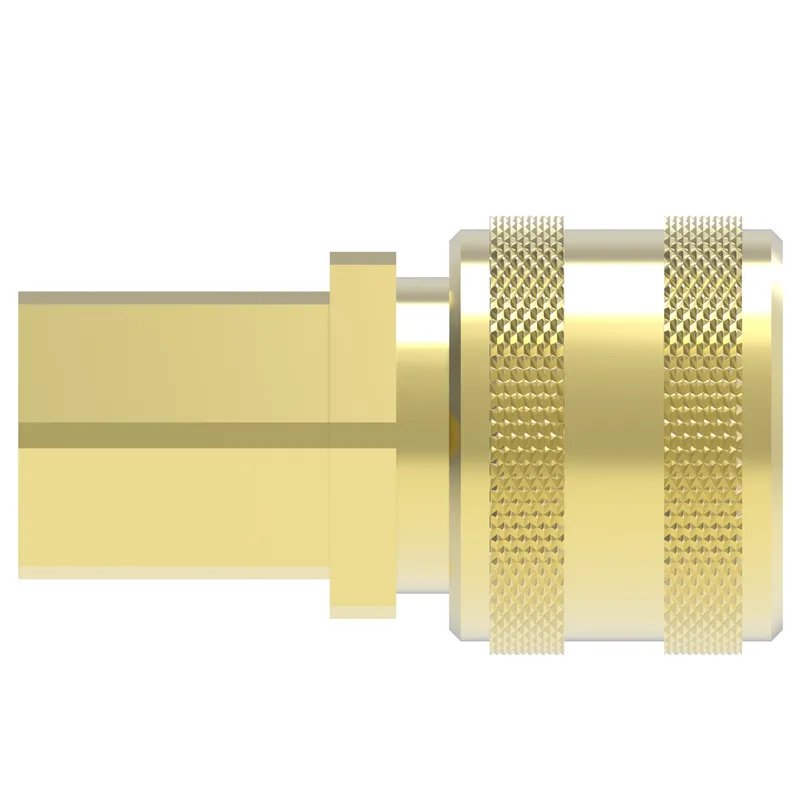

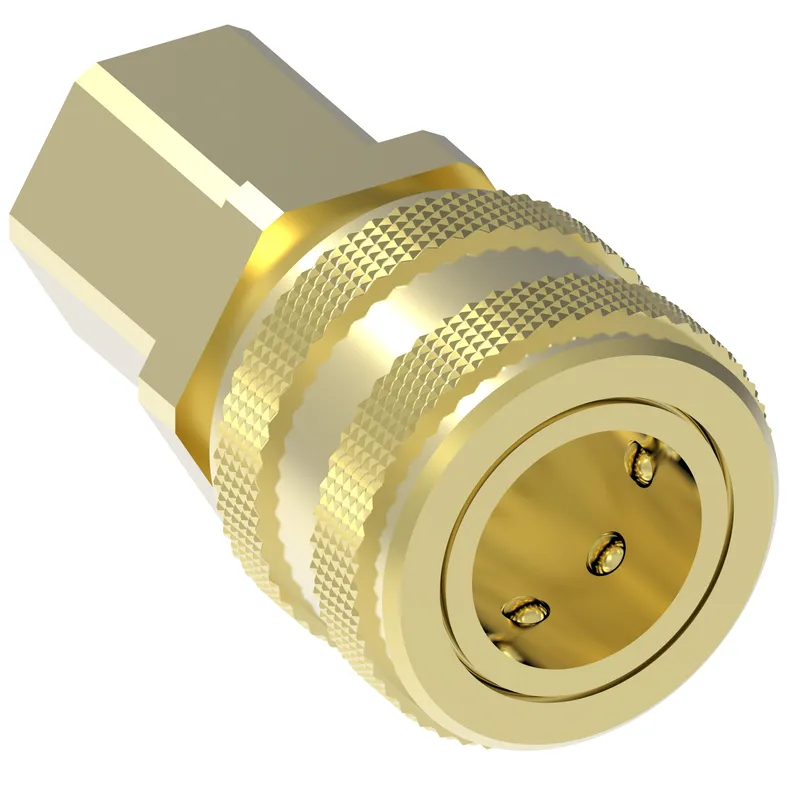

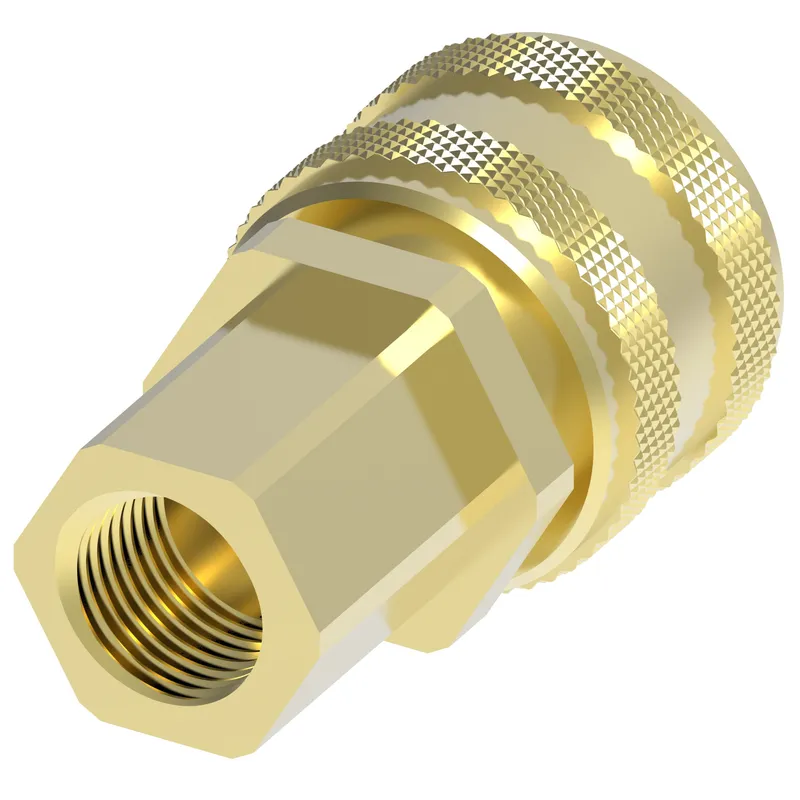

CPLG100Series F Half Brass 4BodyX6FP

MPN: 104
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 104?

Danfoss CPLG100Series F Half Brass 4BodyX6FP, manufacturer part number 104. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146195845
Angle shape	Straight
Body size	1/4
Brand	Danfoss
Burst pressure min bar	193
Burst pressure min psi	2800
Connection style	Manual connect
End size 2	-6
End type 1	Female Push to Connect
End type 2	Female pipe (NPTF)
Finish plating	Nickel
Flow rate GPM	149.52
Flow rate LPM	566.00
Fluid compatibility	Compressed air and other gases
Hex size 1 IN	0.750
Hex size 1 MM	19.050
Item type	Female half
Latch type	Push/pull
Product height in	1.000
Product height mm	25.400
Product length in	2.050
Product length mm	52.324
Product material	Brass
Product width in	1.000
Product width mm	25.400 mm
Safety locking mechanism	Sleeve lock
Seal material	Nitrile (NBR)
Sub brand	Hansen
Valve type	2 way
Working pressure max psi	350
Working pressure max BAR	24
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40
