Danfoss 1000BV

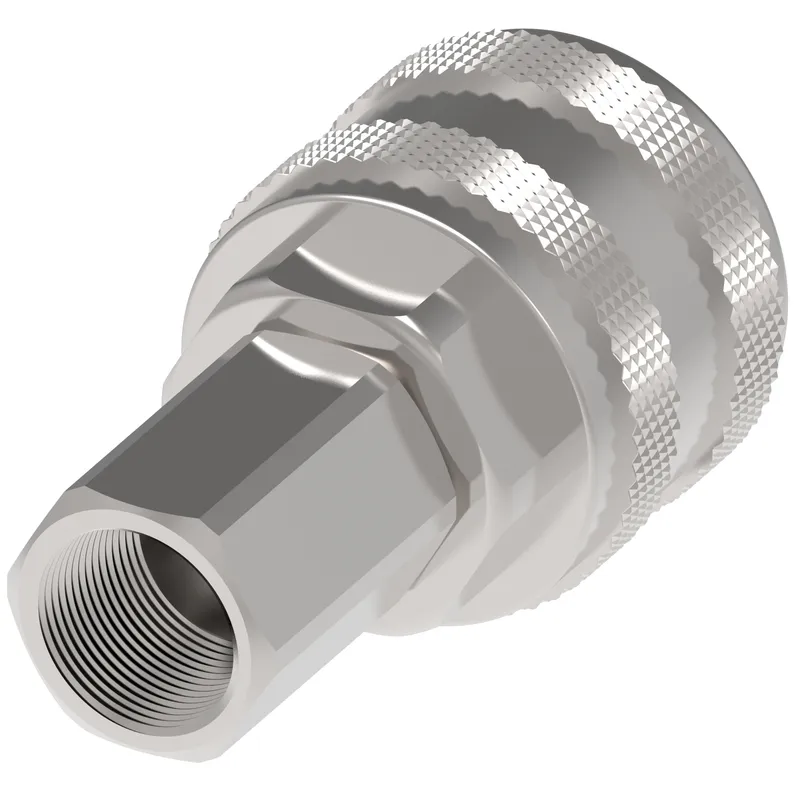

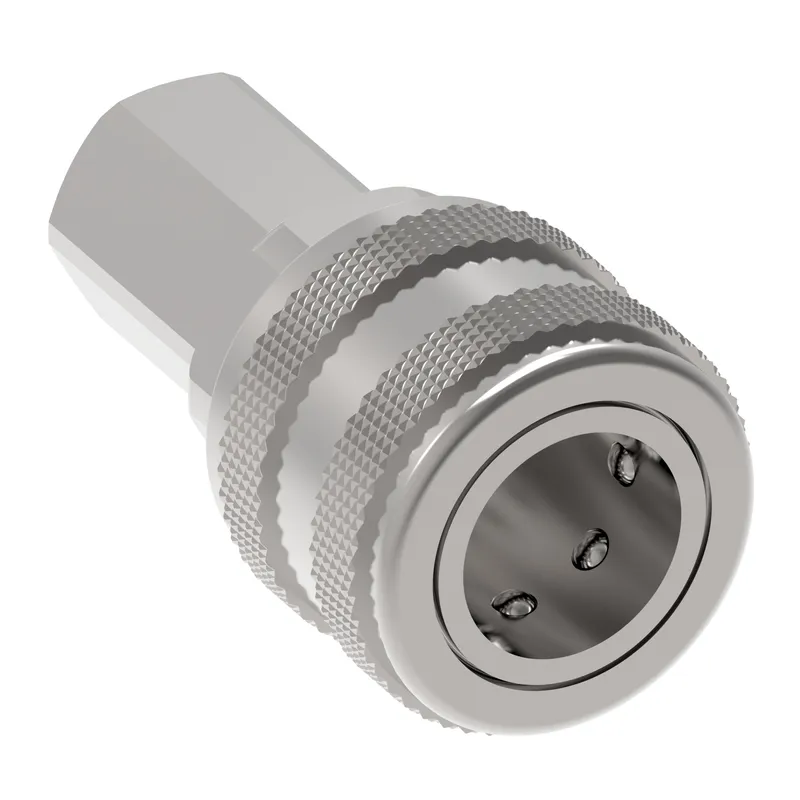

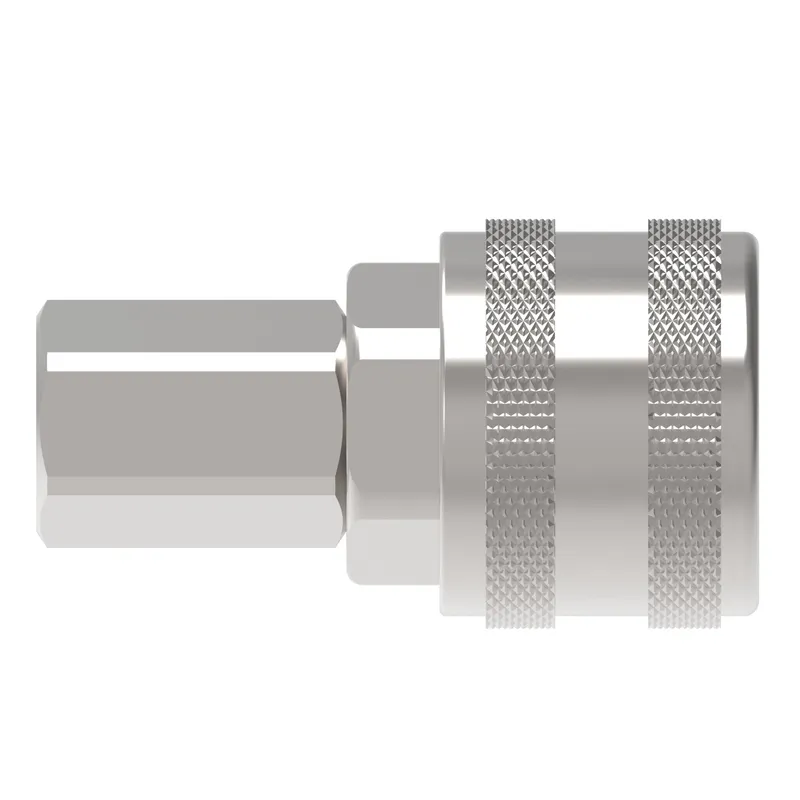

COUPLING,1000,F,1/4,B,-4NPT,NBR

MPN: 1000BV
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1000BV?

Danfoss COUPLING,1000,F,1/4,B,-4NPT,NBR, manufacturer part number 1000BV. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146096159
Angle shape	Straight
Application	Construction, General industry, General pneumatics
Body size	1/4
Burst pressure min bar	552
Burst pressure min psi	8000
Compliances	A-A-59439
Connection style	Manual connect
End size 1	-4
End size 2	-4
End type 1	Female pipe (NPTF)
Flow rate GPM	179.00
Flow rate LPM	677.59
Hex size 1 IN	0.690
Hex size 1 MM	17.526
Item type	Female half
Latch type	Push to connect
Product length in	2.080
Product material	Brass
Seal material	Nitrile (NBR)
Valve type	2 way
Working pressure max psi	2000
Working pressure max BAR	138
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40
