Danfoss 08Z-G71

Hose End (perm) 1S/1R 90 D Code 61 Fla

MPN
08Z-G71
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

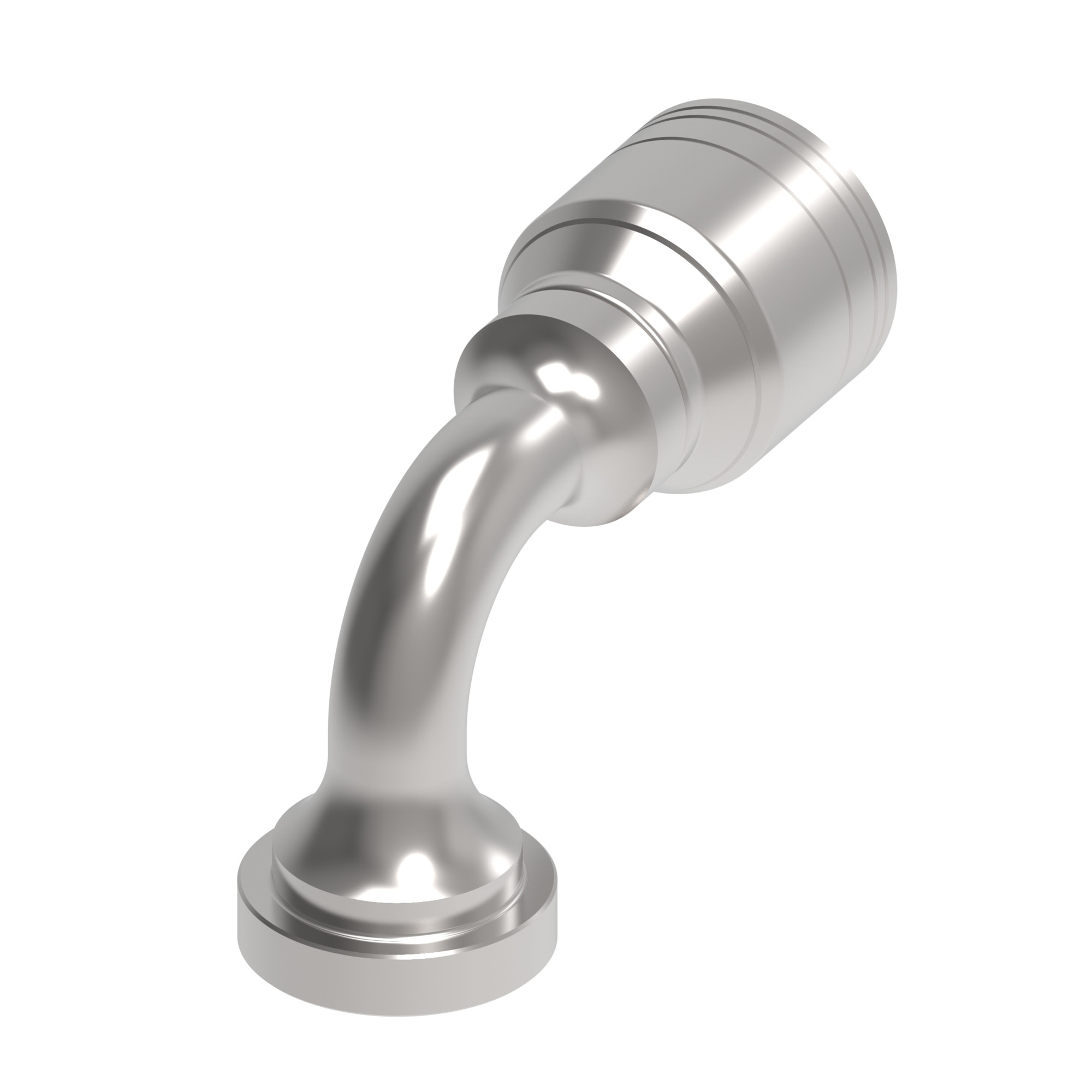

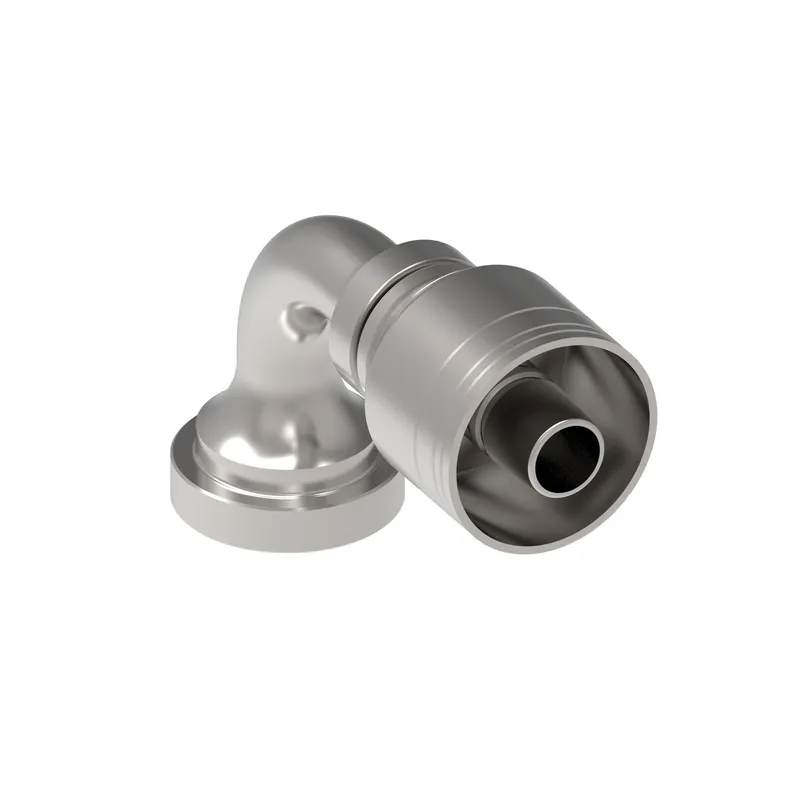

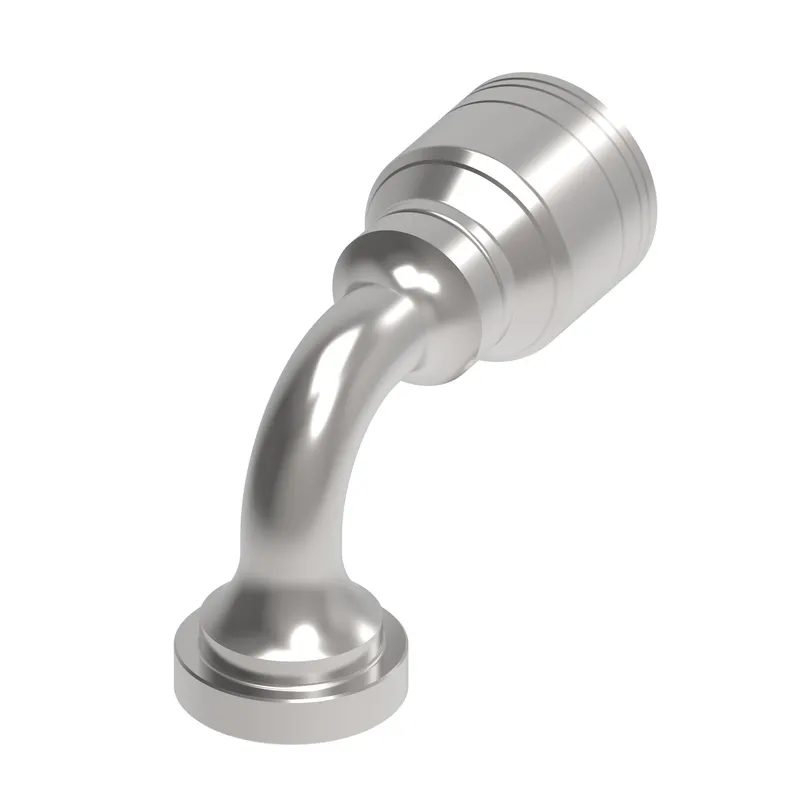

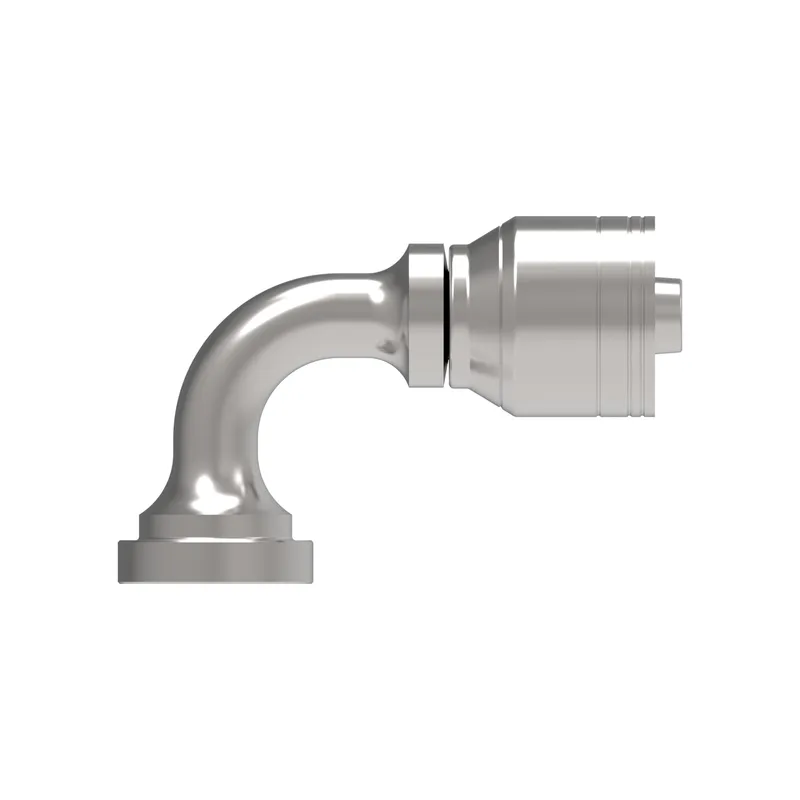

What is the Danfoss 08Z-G71?

Danfoss Hose End (perm) 1S/1R 90 D Code 61 Fla, manufacturer part number 08Z-G71. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC639789294906
Angle shape90 Degree
BrandWeatherhead by Danfoss
Compatible hose ID IN0.500
Compatible hose ID MM12.700
Compatible tube OD IN0.50
Compatible tube OD MM12.700
CompliancesSAE J1176
Construction StyleCrimp
Drop dimension IN1.630
Drop dimension MM41.4
Finish platingDura-Kote
Hose cut off factor IN1.690
Hose cut off factor MM42.926
Hose size-8
Inside diameter IN0.370
Inside diameter MM9.398
Product materialCarbon steel
Thread sealantNo
Tube OD 1 IN0.500
Tube OD 1 MM12.700
