Danfoss 06Z-S66-200BX

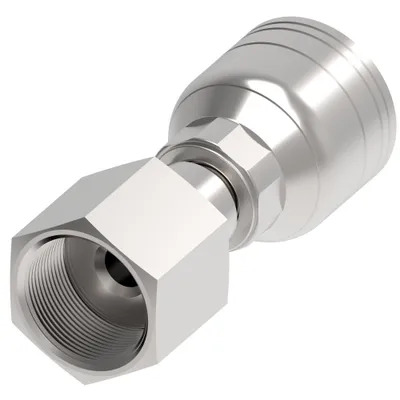

HOSE FTG, 1Z/6, ORS-F/6, -S

MPN: 06Z-S66-200BX
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 06Z-S66-200BX?

Danfoss HOSE FTG, 1Z/6, ORS-F/6, -S, manufacturer part number 06Z-S66-200BX. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	639789328946
A dimension IN	2.070
A dimension MM	52.700
Angle shape	Straight
Compatible hose ID IN	0.380
Compatible hose ID MM	9.500
Compatible hoses	H881
Construction Style	Crimp
End connection torque	18-20 lb-ft(24-27 Nm)
End size 1	-6
End type 1	Female ORFS swivel
Finish plating	Dura-Kote
Hex size 1 MM	21.000
Hex size 2 IN	0.688
Hex size 2 MM	17.000
Hose cut off factor IN	1.240
Hose cut off factor MM	31.400
Hose size	-6
Inside diameter IN	0.2600
Inside diameter MM	6.7000
Product height in	1.067
Product height mm	27.100
Product material	Carbon steel
Series	1A/Z Series
Thread sealant	No
Thread size 1	11/16-16 UN
Working pressure max BAR	621
Working pressure max PSI	9100
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
