Danfoss 06Z-L66-200BX

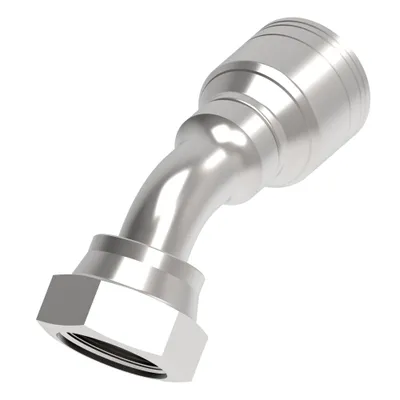

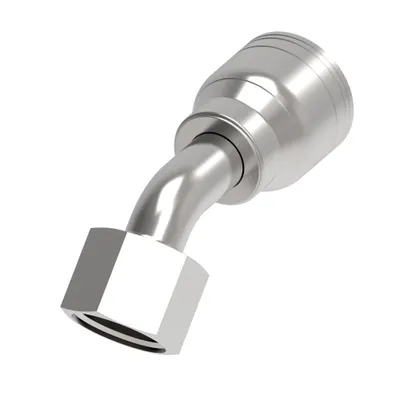

HOSE FTG, 1Z/6, ORS-F/6, -S, 45D

MPN: 06Z-L66-200BX
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 06Z-L66-200BX?

Danfoss HOSE FTG, 1Z/6, ORS-F/6, -S, 45D, manufacturer part number 06Z-L66-200BX. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	639789328939
A dimension IN	2.360
A dimension MM	59.900
Angle shape	45 Degree
Compatible hose ID IN	0.380
Compatible hose ID MM	9.500
Compatible hoses	H881
Construction Style	Crimp
Drop dimension IN	0.430
Drop dimension MM	10.90
End connection torque	18-20 lb-ft(24-27 Nm)
End size 1	-6
End type 1	Female ORFS swivel
Finish plating	Dura-Kote
Hex size 1 MM	21.000
Hose cut off factor IN	1.430
Hose cut off factor MM	36.300
Hose size	-6
Inside diameter IN	0.2400
Inside diameter MM	6.2000
Product height in	0.430
Product height mm	10.900
Product material	Carbon steel
Series	1A/Z Series
Thread sealant	No
Thread size 1	11/16-16 UN
Working pressure max BAR	621
Working pressure max PSI	9100
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
