Danfoss 06Z-606-TZ

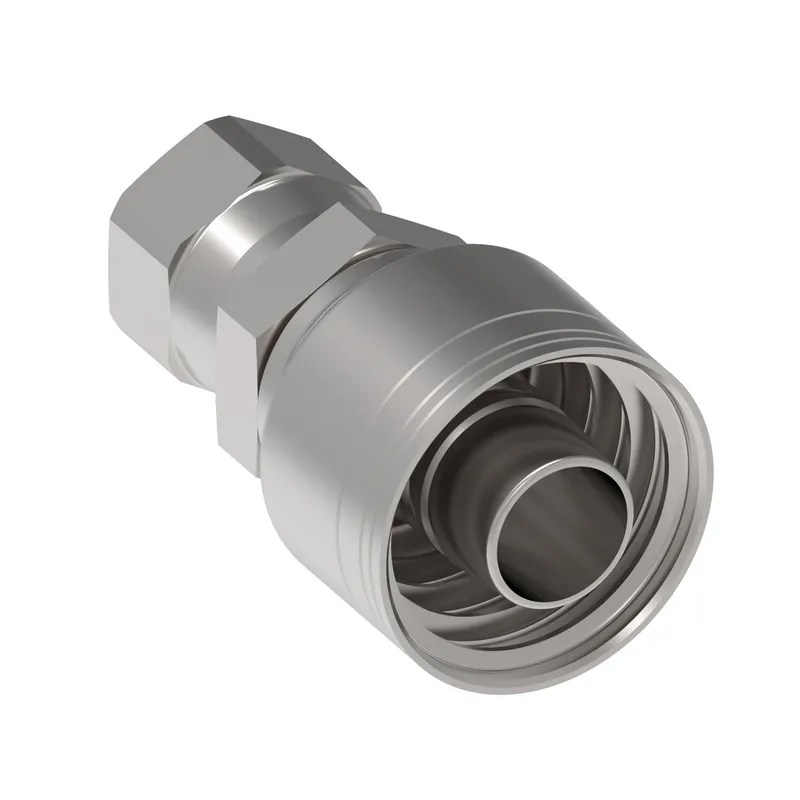

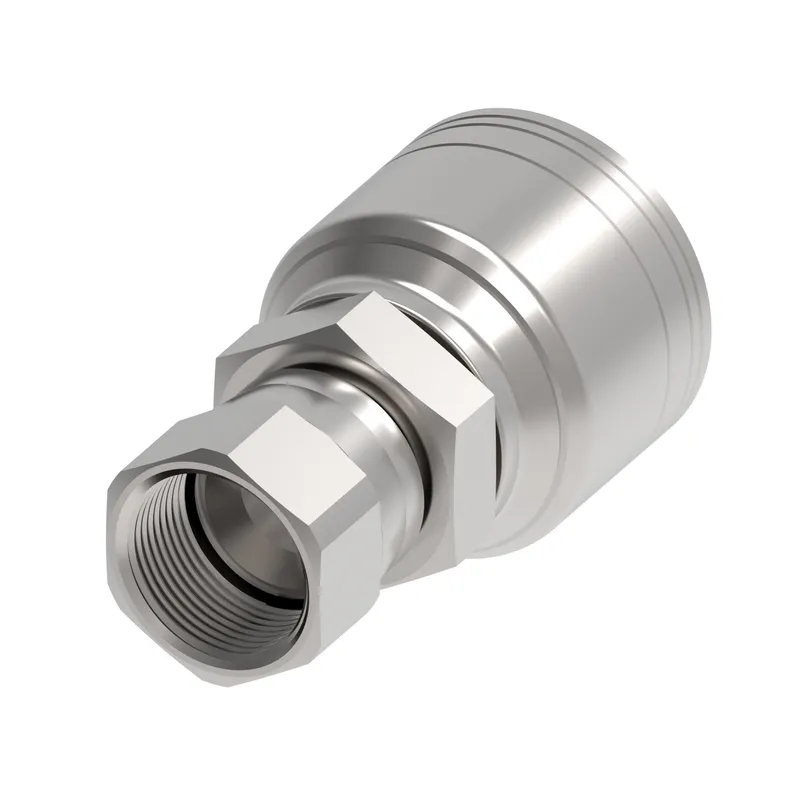

Ftng (perm) R2 Female JIC Straight

MPN: 06Z-606-TZ
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 06Z-606-TZ?

Danfoss Ftng (perm) R2 Female JIC Straight, manufacturer part number 06Z-606-TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	810075333947
Angle shape	Straight
Brand	Weatherhead by Danfoss
Compatible hose ID IN	0.380
Compatible hose ID MM	9.652
Compatible tube OD IN	0.38
Compatible tube OD MM	9.652
Construction Style	Crimp
End size 1	-6
End type 1	Female 37 degree swivel
Hex size 1 IN	0.690
Hex size 1 MM	17.500
Hex size 2 IN	0.690
Hex size 2 MM	17.500
Hose cut off factor IN	1.280
Hose cut off factor MM	32.512
Hose size	-6
Inside diameter IN	0.2600
Inside diameter MM	6.6040
Product material	Carbon steel
Thread sealant	No
Tube OD 1 IN	0.380
Tube OD 1 MM	9.652
