Danfoss 06Z-506-TZ

Ftng (perm), SAE 37 R2 Male JIC

MPN: 06Z-506-TZ
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 06Z-506-TZ?

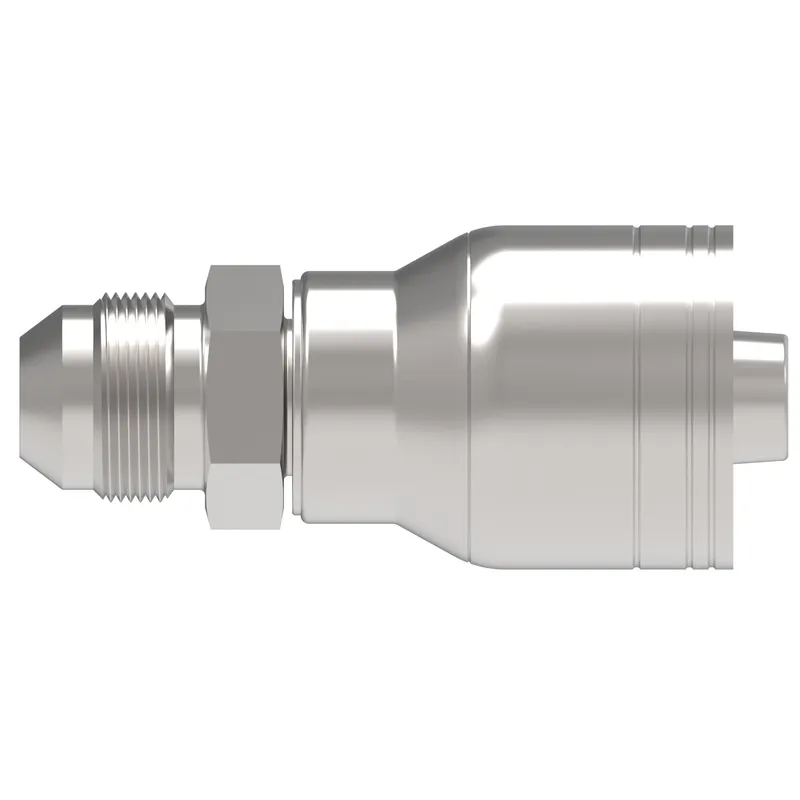

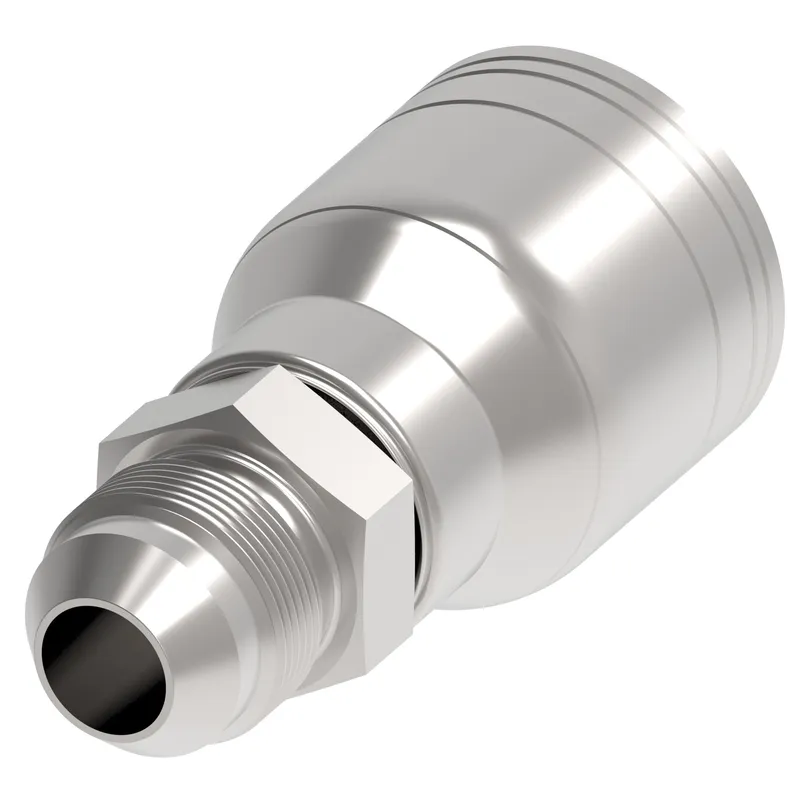

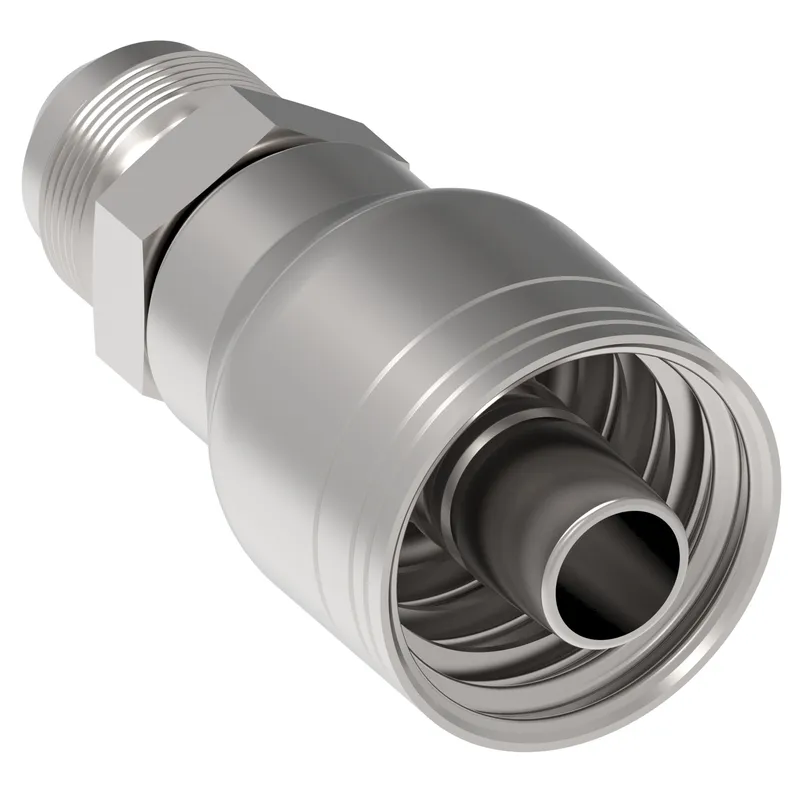

Danfoss Ftng (perm), SAE 37 R2 Male JIC, manufacturer part number 06Z-506-TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	810075334074
Angle shape	Straight
Brand	Weatherhead by Danfoss
Compatible hose ID IN	0.380
Compatible hose ID MM	9.652
Compatible tube OD IN	0.38
Compatible tube OD MM	9.652
Construction Style	Crimp
End size 1	-6
End type 1	Male 37 degree
Hex size 1 IN	0.690
Hex size 1 MM	17.500
Hose cut off factor IN	1.220
Hose cut off factor MM	30.988
Hose size	-6
Inside diameter IN	0.2600
Inside diameter MM	6.6040
Product material	Carbon steel
Thread sealant	No
Tube OD 1 IN	0.380
Tube OD 1 MM	9.652
