Danfoss 036-0137-002

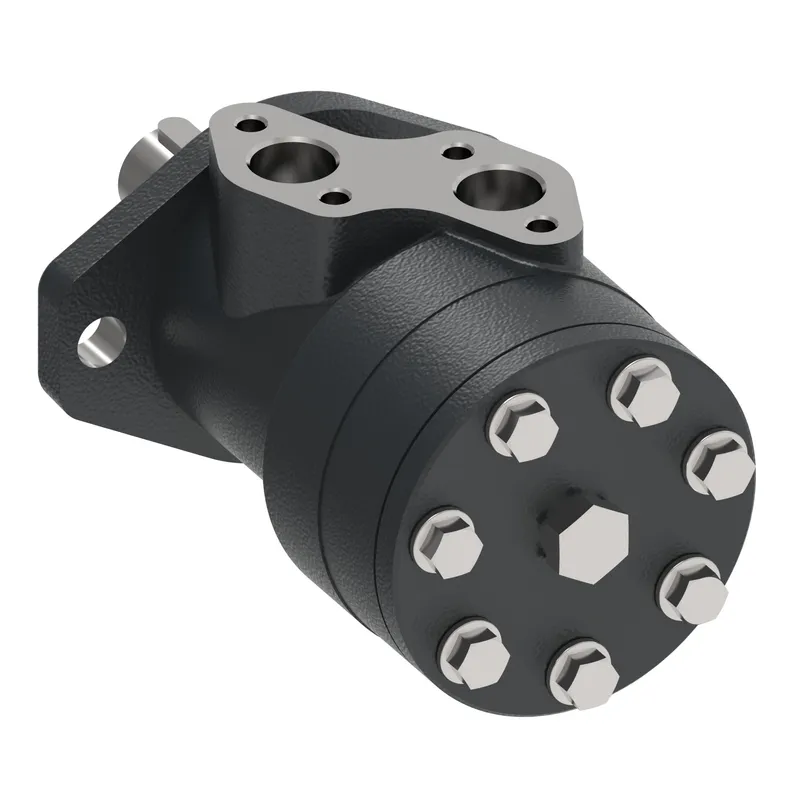

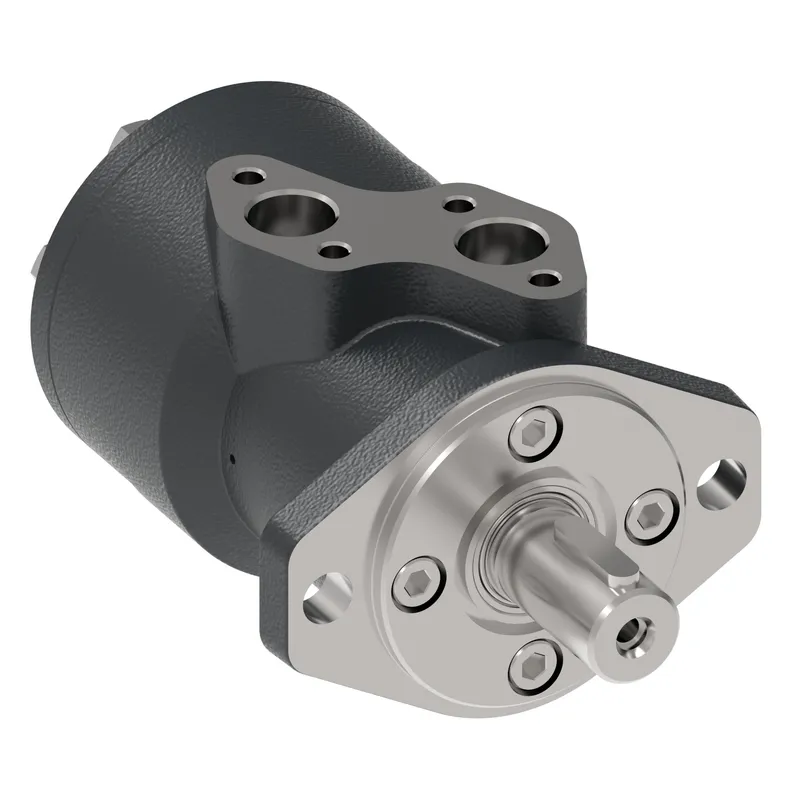

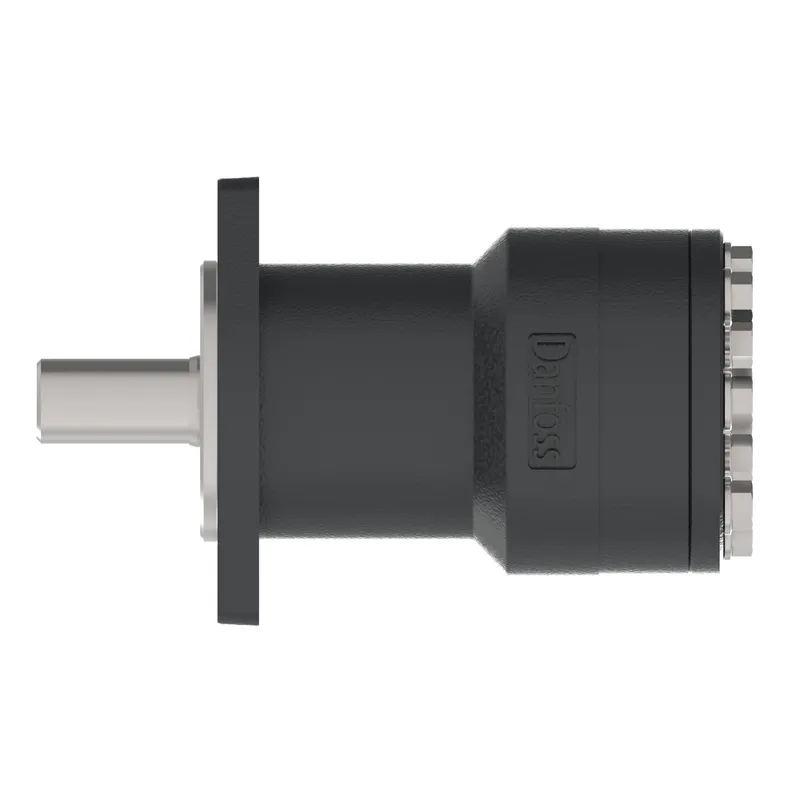

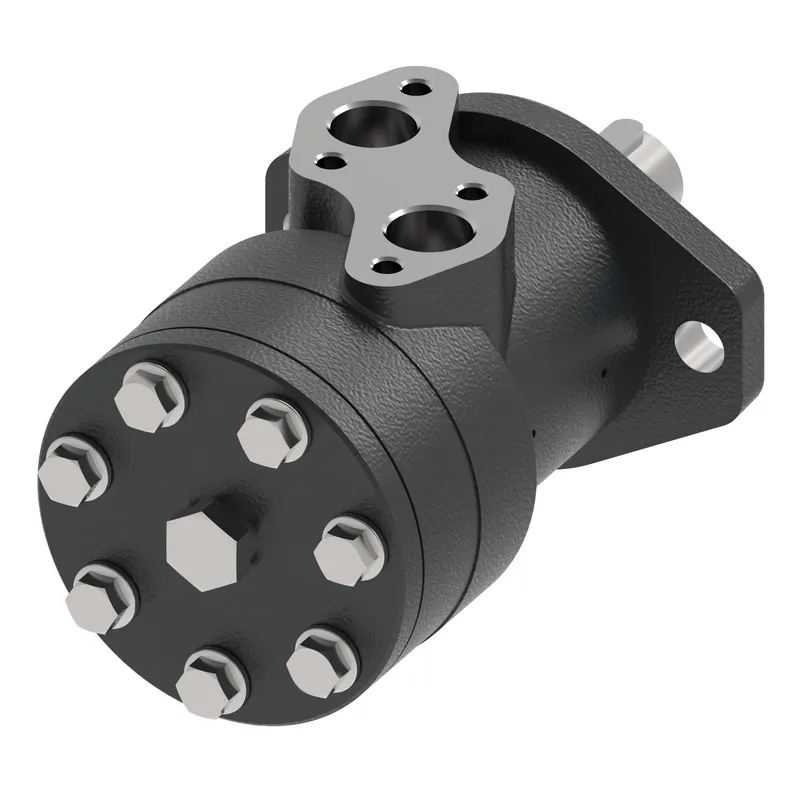

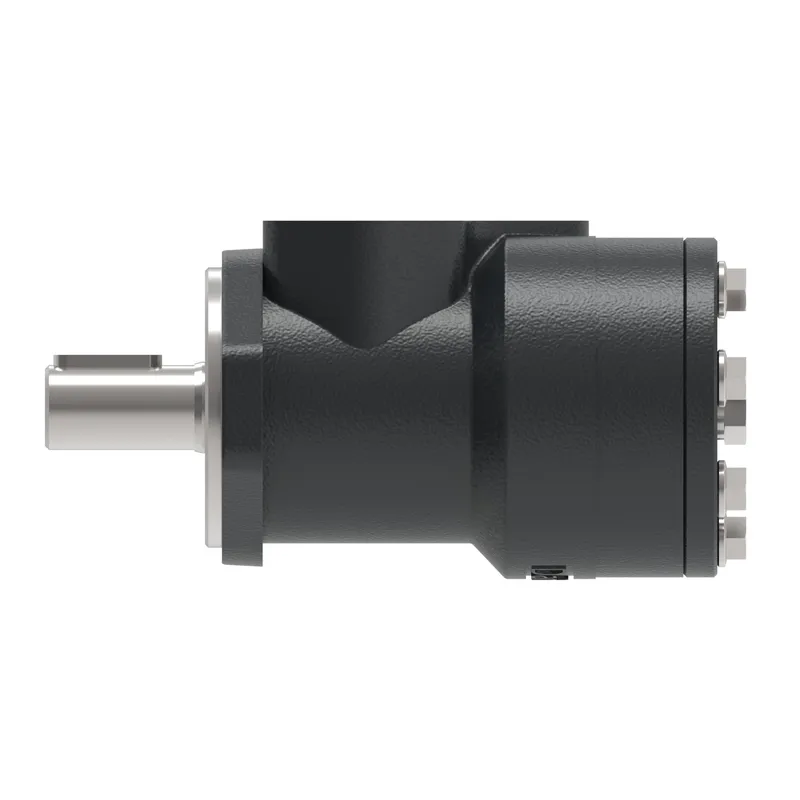

MOTOR-ORBITAL,XLS SERIES 245 [14.9], MCS245AA01AA110000A000B00B

MPN: 036-0137-002
Category: Danfoss orbital motor quick selector

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 036-0137-002?

Danfoss MOTOR-ORBITAL,XLS SERIES 245 [14.9], MCS245AA01AA110000A000B00B, manufacturer part number 036-0137-002. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Model Code	MCS245AA01AA110000A000B00B
Motor Series	XLS Series
Valve system	Spool valve
Orbital gearwheel set type	Geroler
Motor size	245
Geometric displacement [cm3/r [in3/r]]	243.9 [14.88]
Motor type	Standard
Motor function	Standard
Mounting flange type	2 Bolt - A
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]	82.6 x 5.0, 106.4, 13.5 [3.25 x 0.20, 4.19, 0.53]
Shaft type	Straight
Shaft dimension	Dia. 25 mm, M8 thread in shaft end
Shaft Key	Rectangular key, A8 x 7 x 32 mm
Main port thread type	BSP
Main port style	Sideport - staggered
Main port dimension	G 1/2, 4 x M8 block mounting threads
Drain Port Dimension	G 1/4
Brake Release Port Dimension	n/a
Painted	Yes
Paint information	Painted, Blue
Special Features Assembly	Standard
Dust seal	Standard
Shaft Seal	NBR - Standard
Seal Kit	Z331-25
Front bearing type	Journal bearing
Rear bearing type	Journal bearing
Orbital gearwheel set	Standard
Check valve function	Yes
Hydraulic valve function	None
Sensor	None
Packaging	No data available
Name Tag	Danfoss name tag
Brand	Danfoss
Sub brand	Xcel
