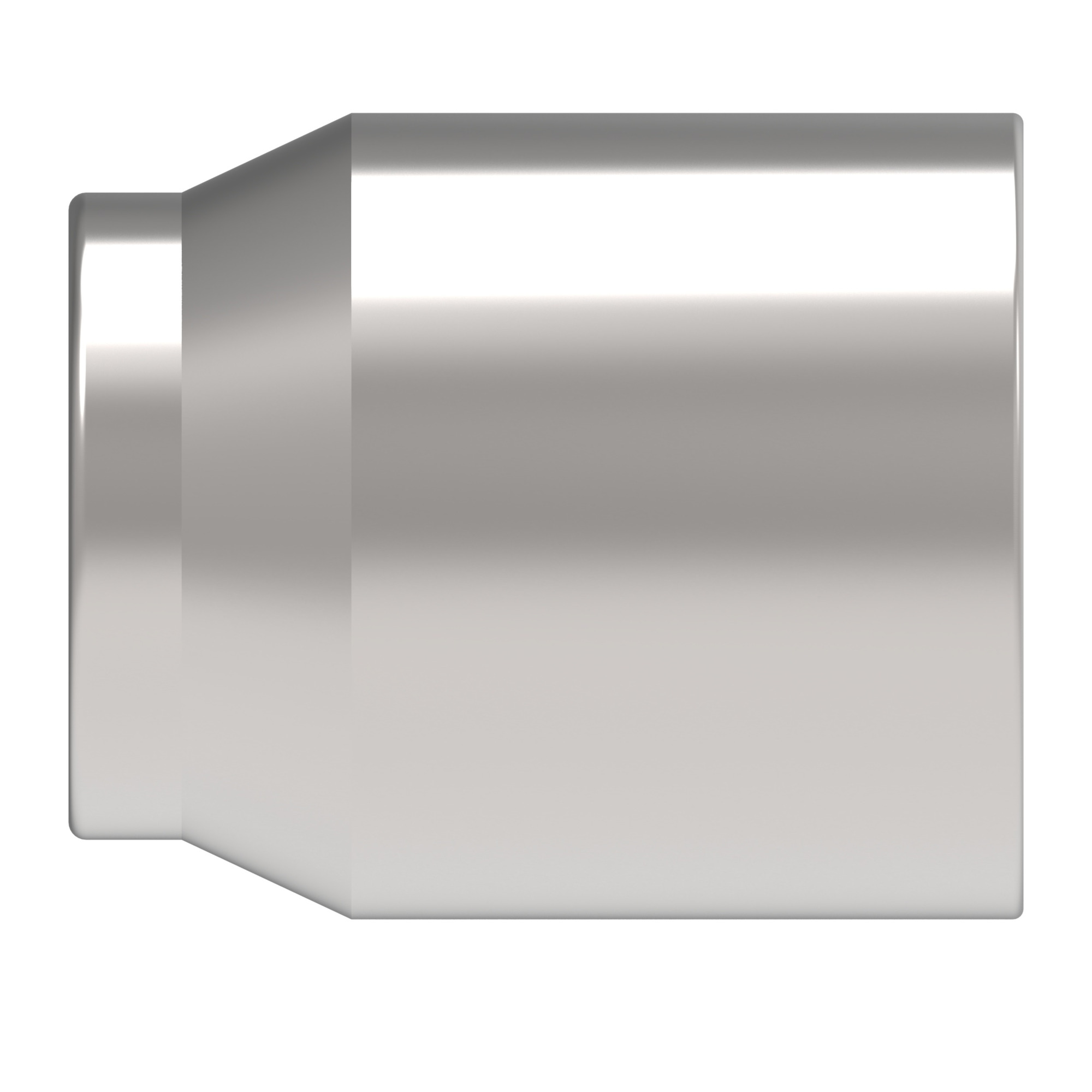

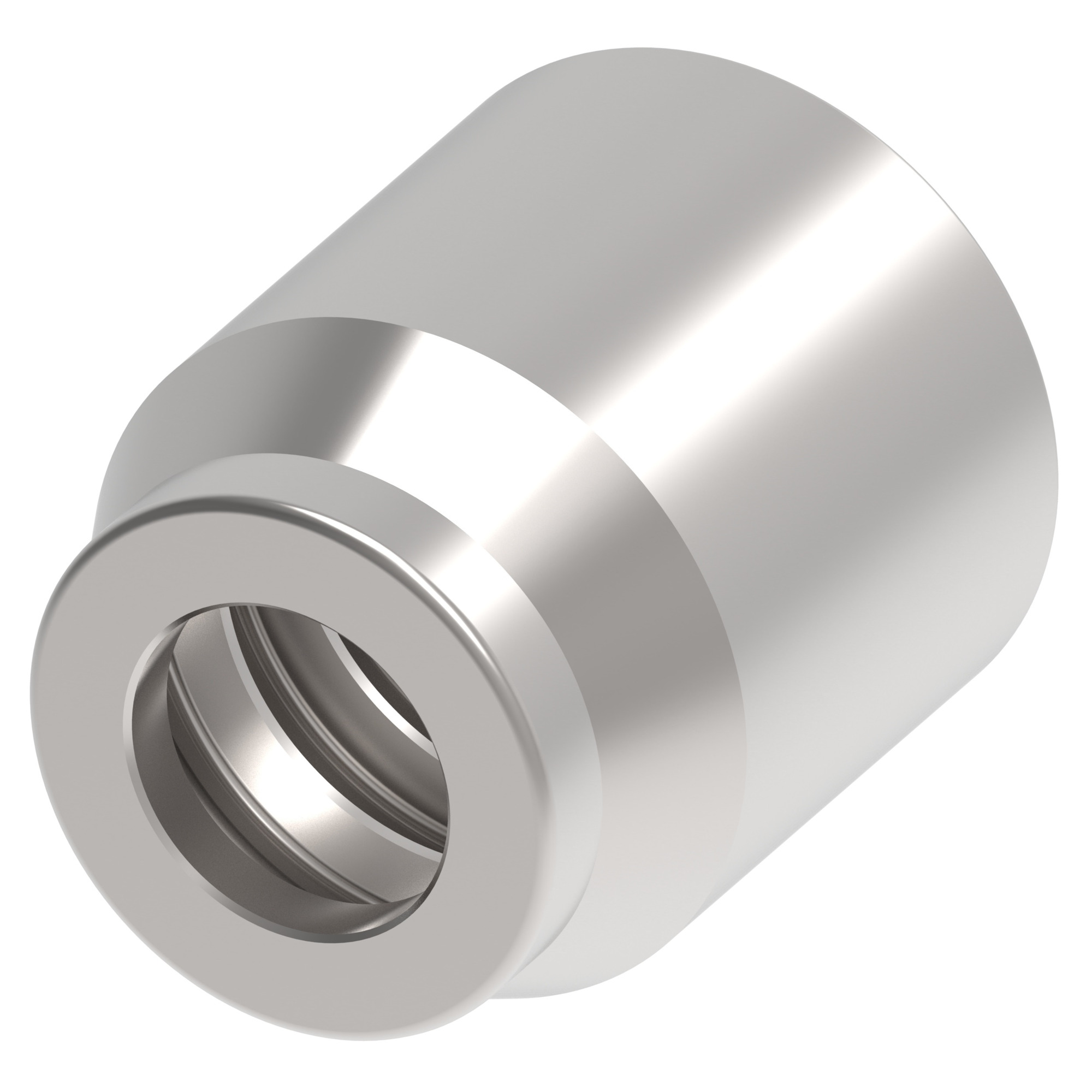

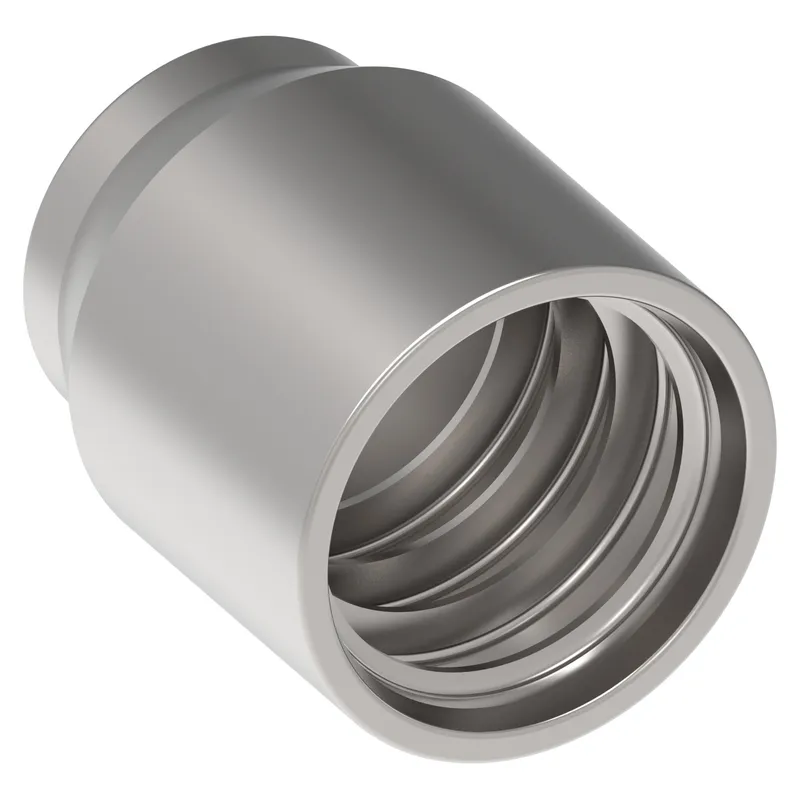

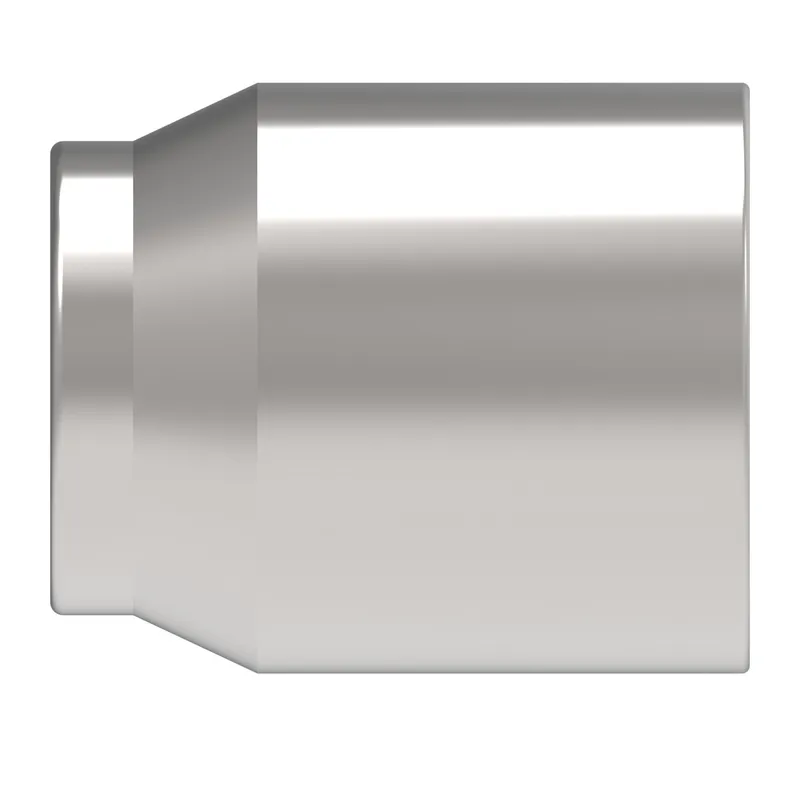

Danfoss 03310-04CSV

SOCKET-PERM, 2P/04, AP

MPN: 03310-04CSV
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Danfoss 03310-04CSV?

Danfoss SOCKET-PERM, 2P/04, AP, manufacturer part number 03310-04CSV. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	1.062
A dimension MM	27.000
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	0.250
Compatible hose ID MM	6.400
Construction Style	Crimp
Finish plating	Dura-Kote
Hose size	-4
Inside diameter IN	0.4300
Inside diameter MM	11.0000
Product height in	0.905
Product height mm	23.000
Product length in	1.201
Product length mm	30.500
Product material	Carbon steel
Product width in	0.905
Product width mm	23.000 mm
Series	Winner 2-Piece
Thread sealant	No
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40

03310-04CSV: frequently asked questions

When can 03310-04CSV be shipped?

03310-04CSV is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 03310-04CSV in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 03310-04CSV and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 03310-04CSV, subject to availability and destination.
