Danfoss 02-466533

PVQ32-B2R-SE1S-21-CM7-12-S2, PVQ32-B2R-SE1S-21-CM7-12-S2

MPN: 02-466533
Category: Medium-duty open-circuit piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-466533?

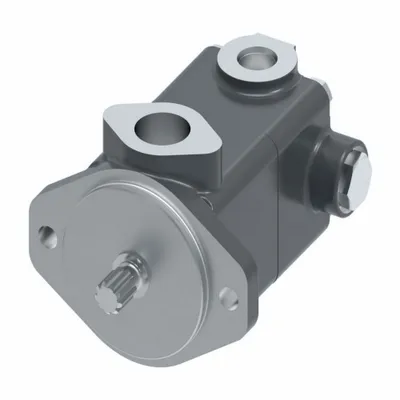

Danfoss PVQ32-B2R-SE1S-21-CM7-12-S2, PVQ32-B2R-SE1S-21-CM7-12-S2, manufacturer part number 02-466533. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Series	INLINE PISTON PUMP WITH VARIABLE VOLUME, QUIET SERIES
DISPLACEMENT	32,9 CC/REV (2.01 cir), 140 BAR (2000 PSI)
Mounting Flange	SAE "B" 2 BOLT
ROTATION (VIEWED FROM S END)	RIGHT HAND (CW)
THRU-DRIVE WITHOUT COUPLING	NO THRU-DRIVE
PORT TYPE AND LOCATION	SAE O-RING REAR PORT, 1.625” INLET AND OUTLET (STANDARD)
INPUT SHAFT	STRAIGHT KEYED SAE “B” MODIFIED, 2.31'' LONG
SEALS	BUNA N, STANDARD
PUMP DESIGN NUMBER	21-DESIGN NUMBER
CONTROL_TYPE	LOW PRESSURE COMPENSATOR, INDICATING FACTORY SETTING OF 70 BAR (1000 PSI); RANGE IS 02-10 IN TENS OF BAR (350-2000 PSI).
CONTROL OPTION	WITHOUT ADJUSTABLE MAXIMUM DISPLACEMENT STOP (STANDARD)
CONTROL DESIGN	C14, C21, CM7, CD AND CMD
SPECIAL PUMP OPTION SUFFIXES	SHAFT UP MOUNTING
Brand	Vickers by Danfoss
IPM FRAME SIZE	PVQ 32cc Pump
Model Code 1	PVQ32-B2R-SE1S-21-CM7-12-S2
