Home / Danfoss (Drives) / Industrial vane pumps / Danfoss 02-466342-7

Danfoss (Drives)

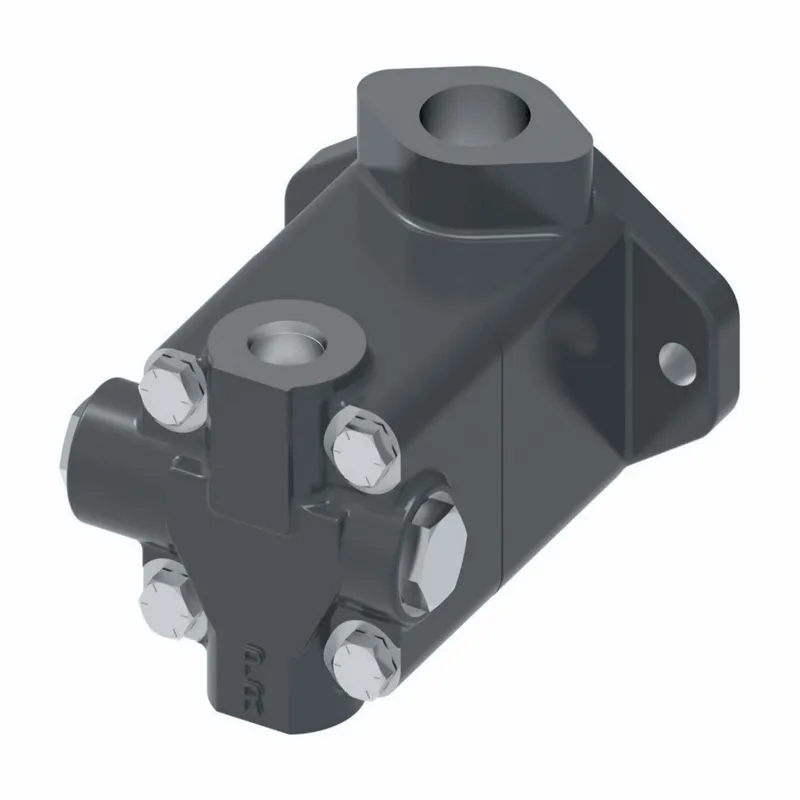

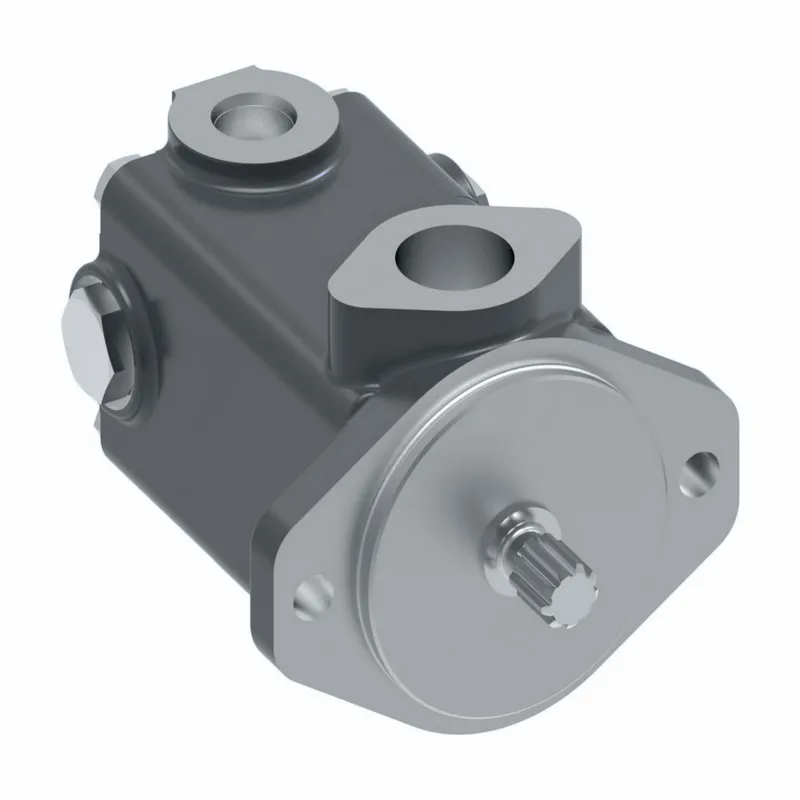

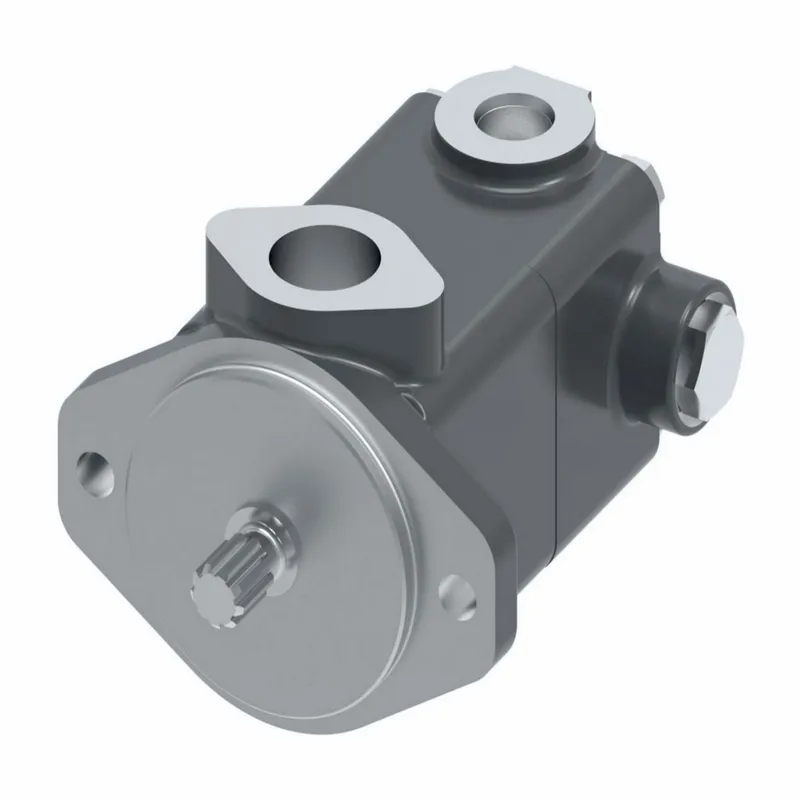

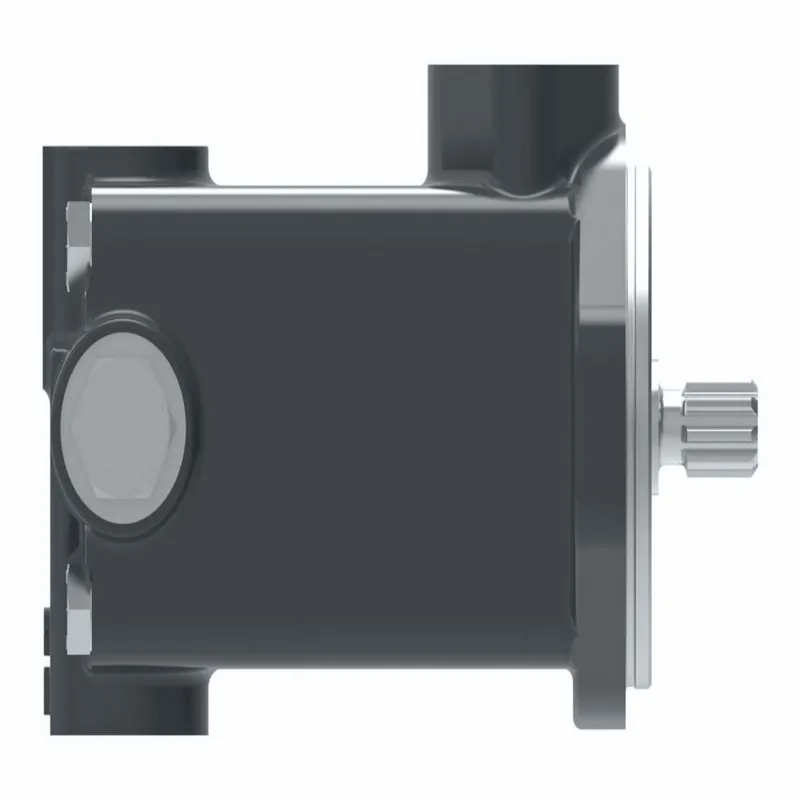

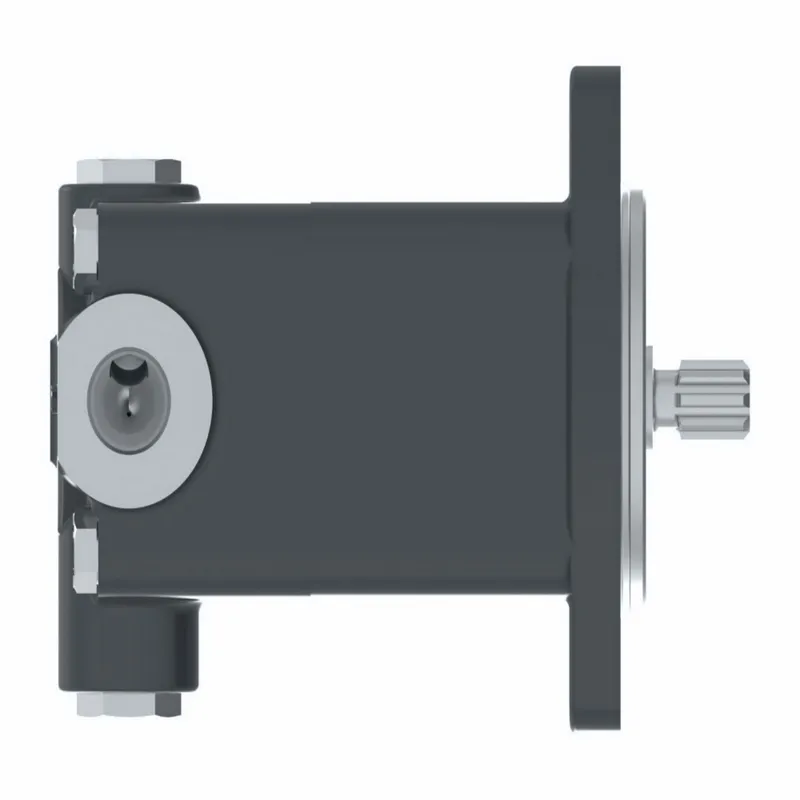

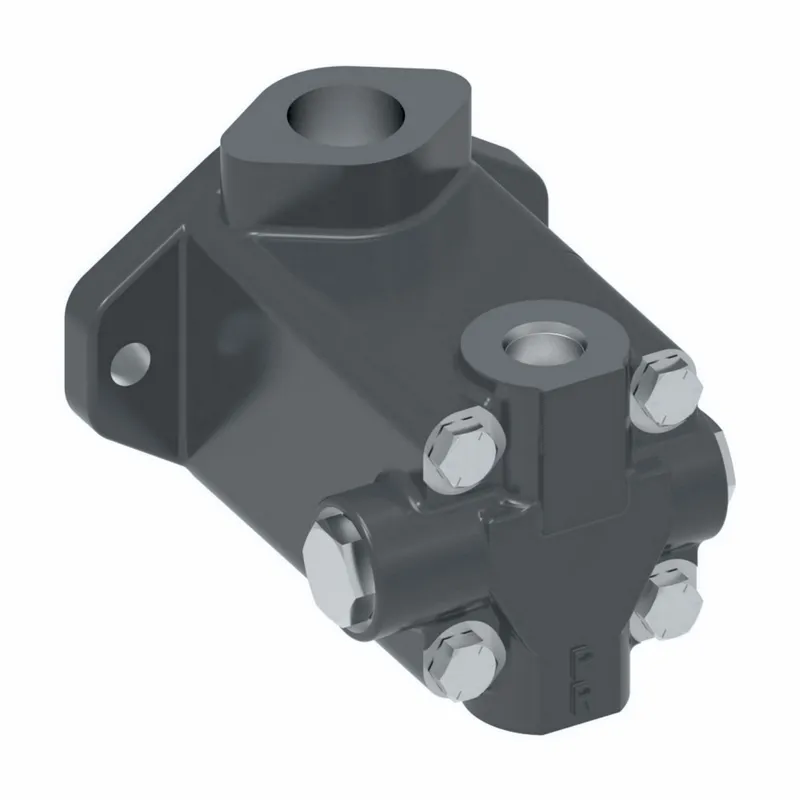

Danfoss 02-466342-7

Industrial vane pump

MPN: 02-466342-7
Category: Industrial vane pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-466342-7?

Danfoss F3 V20F 1S13P S38C10H 22 L, F3 V20F 1S13P S38C10H 22 L, manufacturer part number 02-466342-7. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

SEALS TYPE	ALL SEALS VITON
PUMP TYPE	VANE PUMP
Series	SERIES DESIGNATION
Cover type	FLOW CONTROL VALVE COVER
Mounting type	2 BOLT FLANGE SAE-A SIZE
INLET PORT TYPE	1.625-12UN-2B THREAD
RING CAPACITY	13 GPM
OUTLET PORT TYPE	COVER STANDARD - .750 NPT THREAD, F COVER- PRESSURE PORT-.750-16 UN-2B ,TANK PORT -.500 NPT
SHAFT SEAL AND BEARING	DUAL LIP SEAL & OPEN BEARING
Shaft type	11TEETH 16/32 FLAT ROOT SIDE FIT
IPM FRAME SIZE	V20 Single Pump
Model Code 1	F3 V20F 1S13P S38C10H 22 L
