Danfoss 02-414973
FCG-3-10-A-K-15, FCG310AK15
- MPN
- 02-414973
- Category
- Industrial valves
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Danfoss 02-414973?

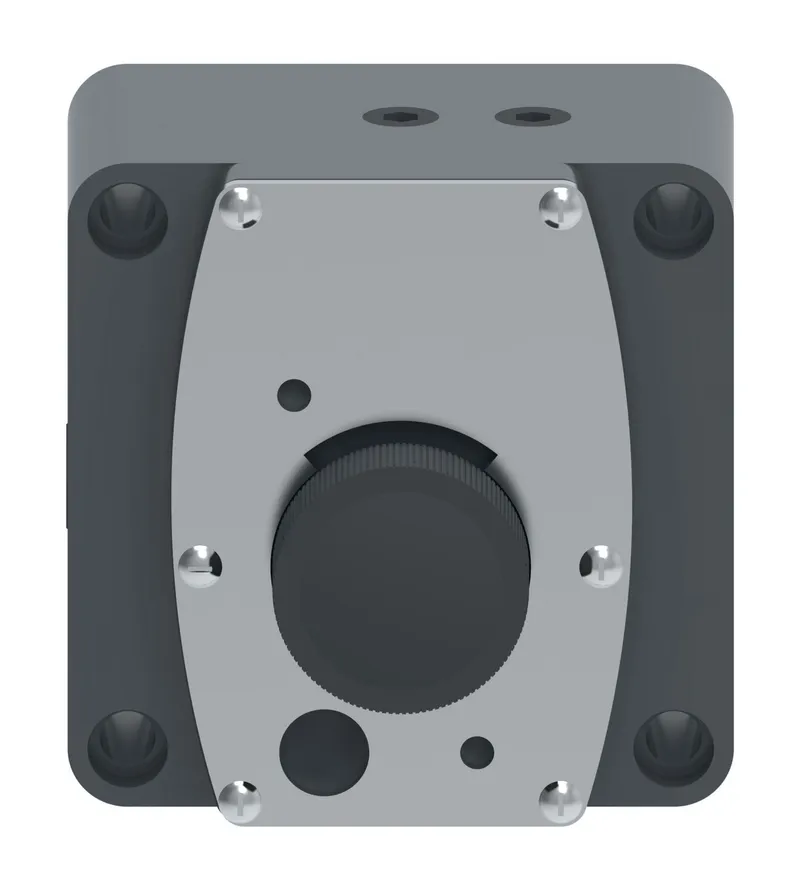

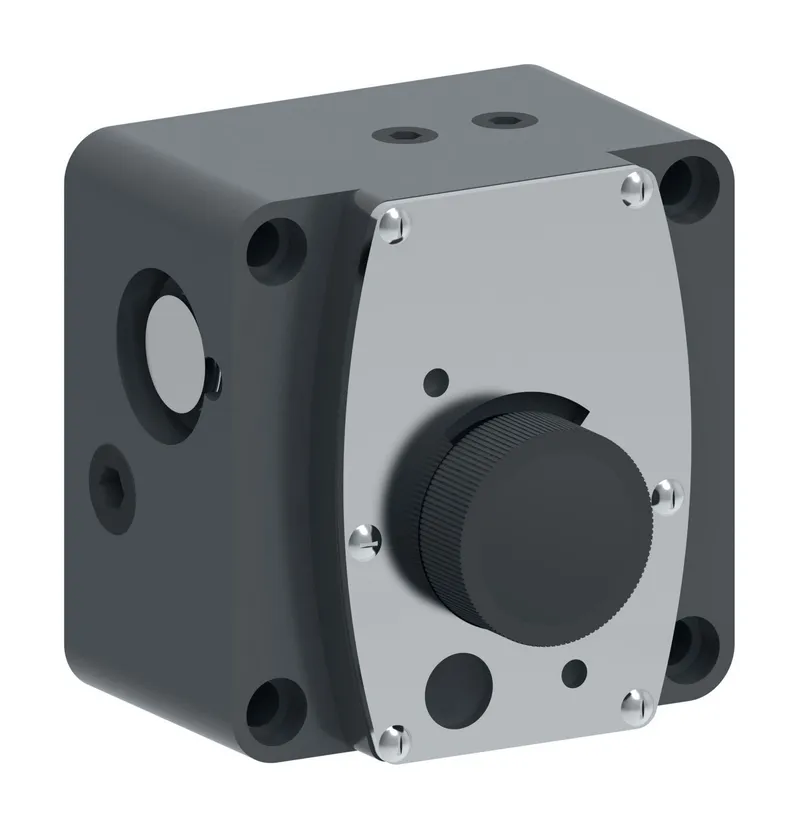

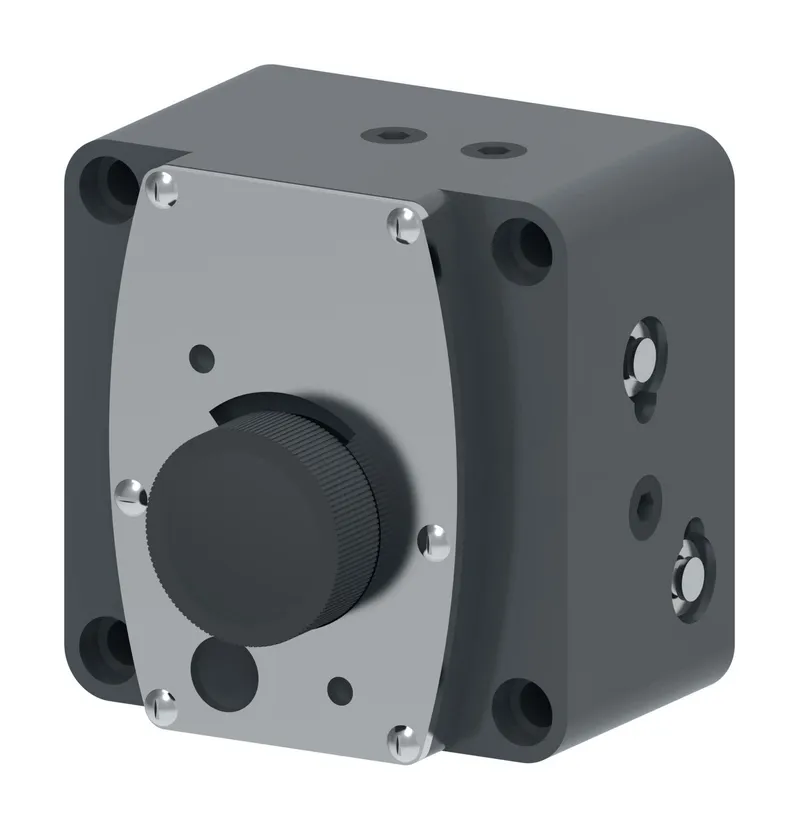

Danfoss FCG-3-10-A-K-15, FCG310AK15, manufacturer part number 02-414973. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Adjustment | Yes |
| Adjustment type | Manual with Keylock |
| Brand | Vickers by Danfoss |
| Check valve | Yes |
| Design code | 15 Series |
| Flow compensation | Pressure and Temperature |
| Flow rate LPM | 1.00 |
| Fluid Cleanliness | 19/17/14 micron |
| Fluid compatibility | Anti-wear hydraulic oil |
| Interface | 03/NFPA D01 |
| Leakage | Standard |
| Lock | Key lock |
| Model Code 1 | FCG310AK15 |
| Pressure rating BAR | 160.00 |
| Product height in | 5.220 |
| Product height mm | 132.588 |
| Product length in | 2.340 |
| Product length mm | 59.436 |
| Product width in | 4.880 |
| Product width mm | 123.952 |
| Seal material | Nitrile |
| Special features | Anti-jump |
| Valve Mount Type | Subplate |
| Valve type | Flow control valve |
| Working temp max C | 80 |
| Working temp min C | -20 |
02-414973: frequently asked questions
When can 02-414973 be shipped?
02-414973 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 02-414973 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 02-414973 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-414973, subject to availability and destination.
