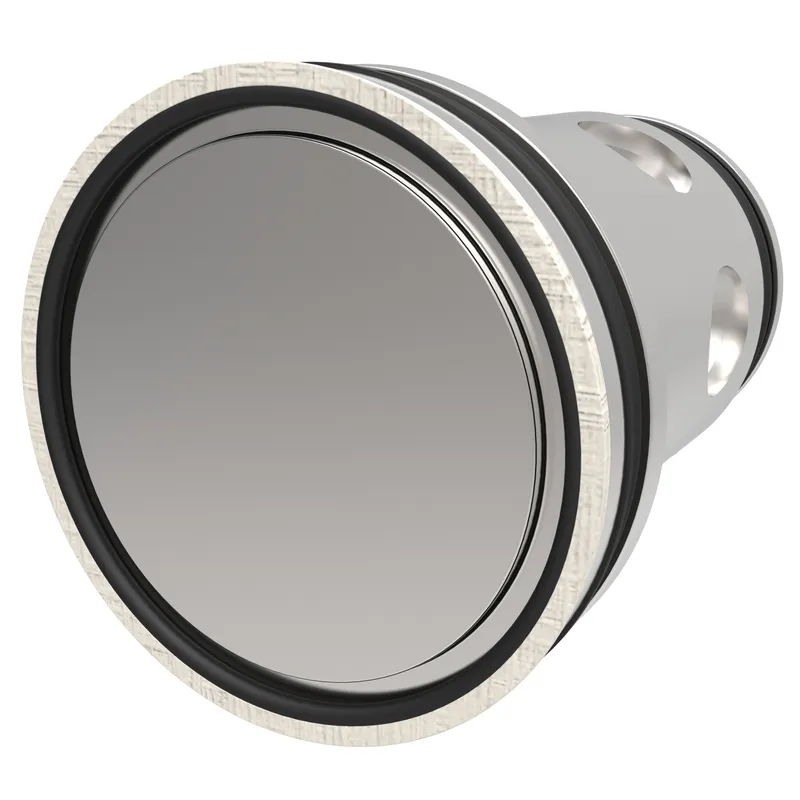

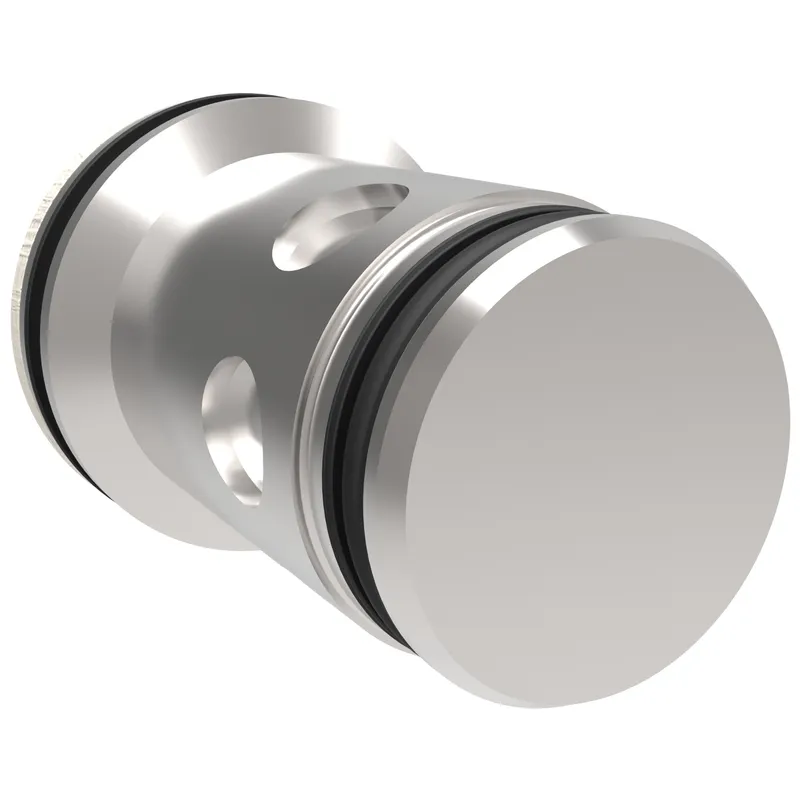

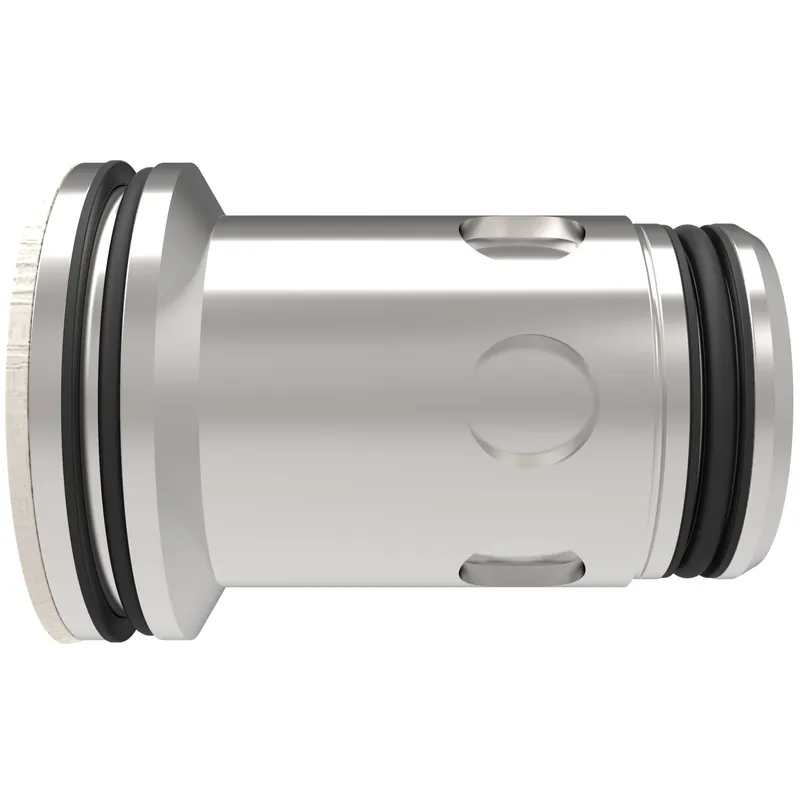

Danfoss 02-414887

CVI-25-X2-50-EN106, CVI25X250EN106

MPN: 02-414887
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-414887?

Danfoss CVI-25-X2-50-EN106, CVI25X250EN106, manufacturer part number 02-414887. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Adjustment	No
Brand	Vickers by Danfoss
Cracking pressure BAR	1.80
Cracking pressure PSI	26.0
Design Series	50 Design
Flow rate LPM	350
Flow rate USGPM	92.0
Fluid Cleanliness	18/16/13 micron
Fluid compatibility	Water Glycol, Water-in-Oil Emulsions and Petroleum Oil
Gauge port thread	SAE
Insert ratio	1:1
Insert type	Reducing - Normally Closed
Interface	No
Leakage	Standard
Model Code 1	CVI25X250EN106
Normal function	Normally closed
Pilot port orientation	ISO
Pressure rating BAR	350
Pressure rating PSI	5000
Product height in	1.770
Product height mm	44.958
Product length in	2.830
Product length mm	71.882
Product width in	1.770
Product width mm	44.958
Seal material	Buna-N
Size	NG 25
Special feature	High pressure seals
Spool position sensor	No
Valve type	Cartridge valve insert
Valvistor	No
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
