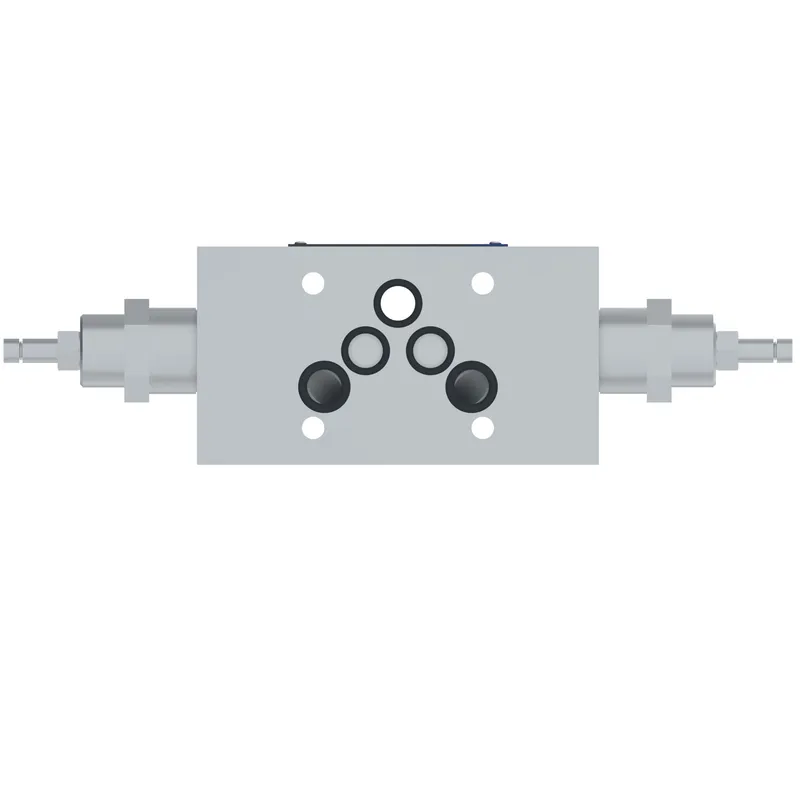

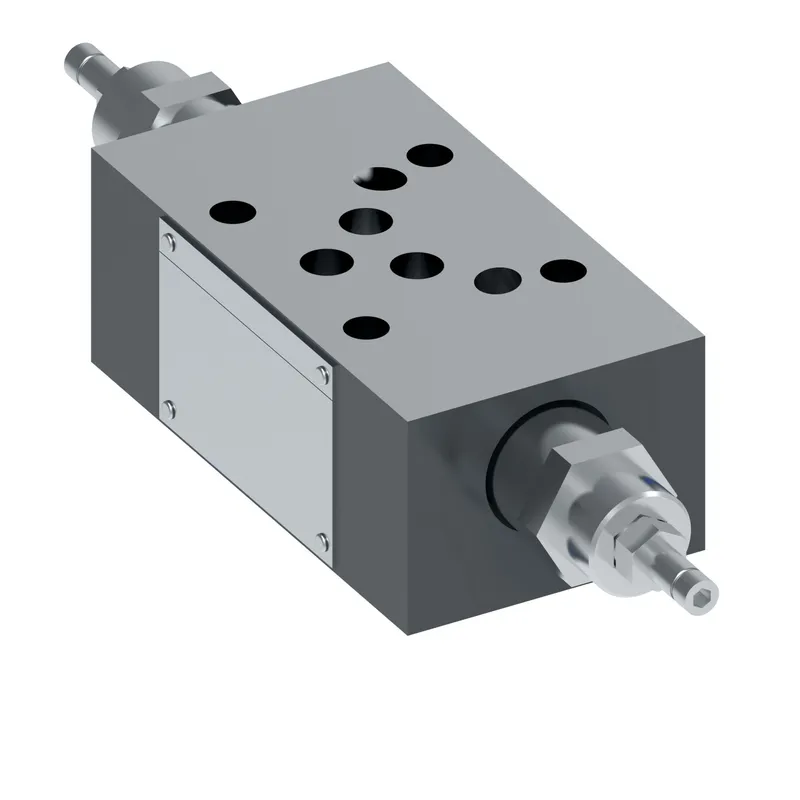

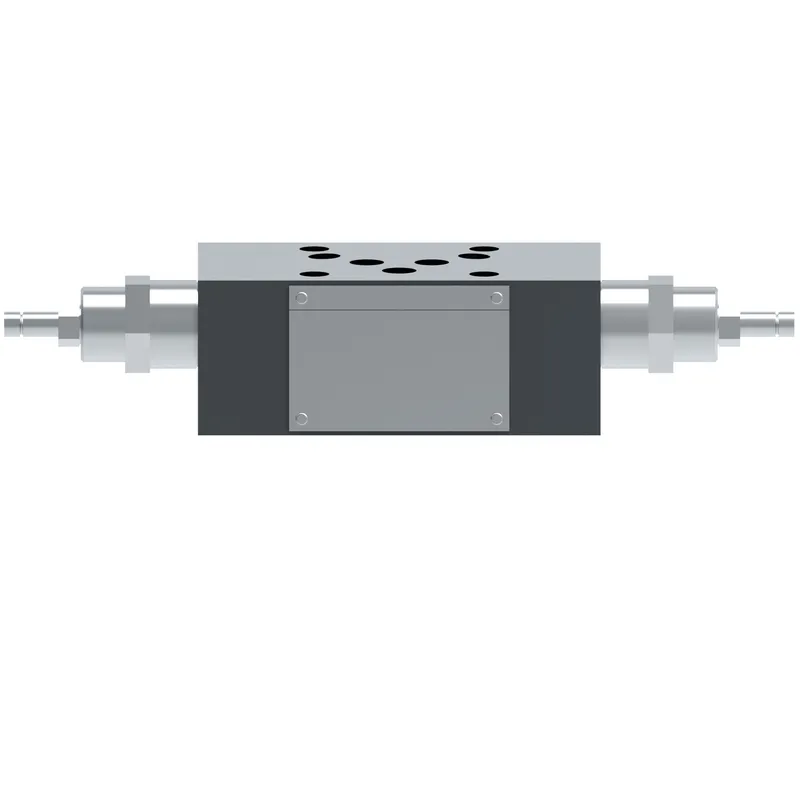

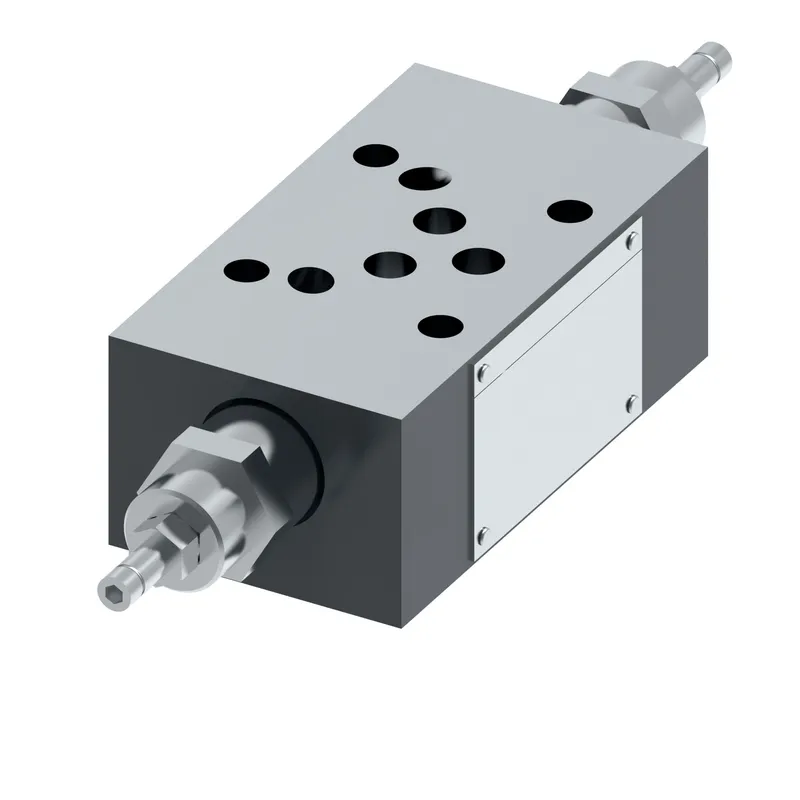

Danfoss 02-413078

DGMFN-7-Y-A2W-B2W-30, DGMFN7YA2WB2W30

MPN: 02-413078
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-413078?

Danfoss DGMFN-7-Y-A2W-B2W-30, DGMFN7YA2WB2W30, manufacturer part number 02-413078. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Pressure operated
Adjustment type	Wrench adjustment
Brand	Vickers by Danfoss
Control type 1	Standard control
Control type 2	Standard control
Design Series	30 Series
Direction of flow	Meter-out control
Flow rate upto LPM	250
Flow rate upto USGPM	66.0
Fluid Cleanliness	19/17/14 micron
Fluid compatibility	Anti-wear hydraulic oil
Interface	ISO4401-07
Location control function 1	Line A
Location control function 2	Line B
Maximum pressure upto bar	315
Maximum pressure upto psi	4500
Model Code 1	DGMFN7YA2WB2W30
Performance	Standard
Product height in	3.150
Product height mm	80.010
Product length in	11.570
Product length mm	293.878
Product width in	3.660
Product width mm	92.964
Seal type	Buna-N
Special features	None
Valve Mount Type	Subplate/manifold mounted
Valve type	Throttle valve with check
Working temp max C	80
Working temp max F	176
Working temp min C	-20
Working temp min F	-4
