Danfoss 02-412951

DG5V 5 2C T VM U H7 10, DG5V52CTVMUH710

MPN: 02-412951
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-412951?

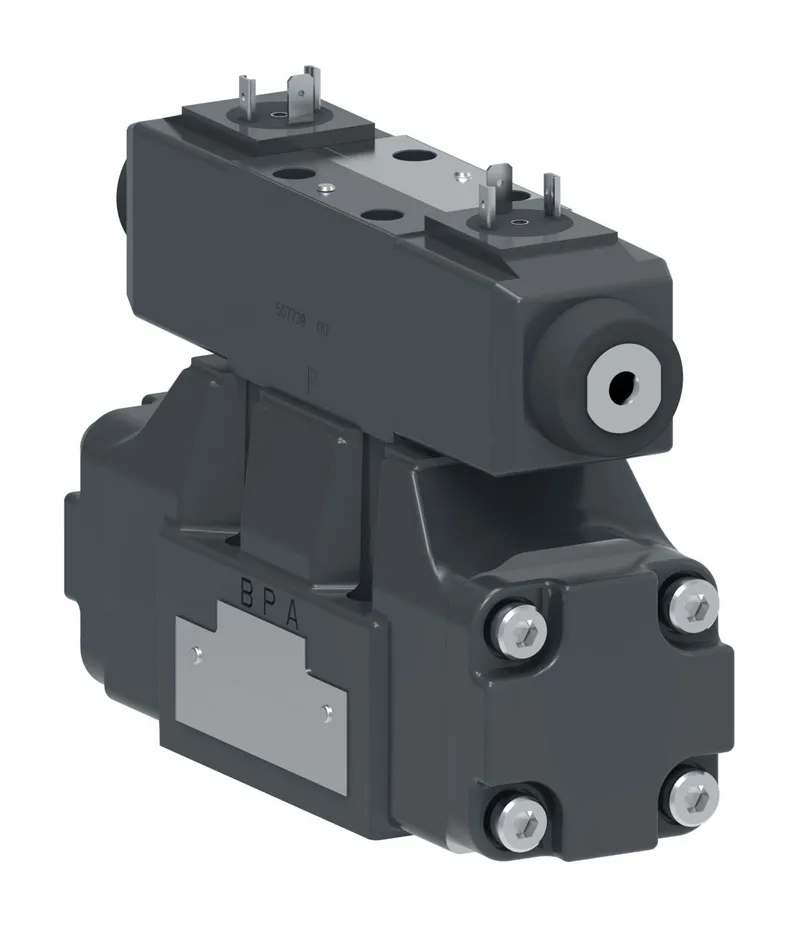

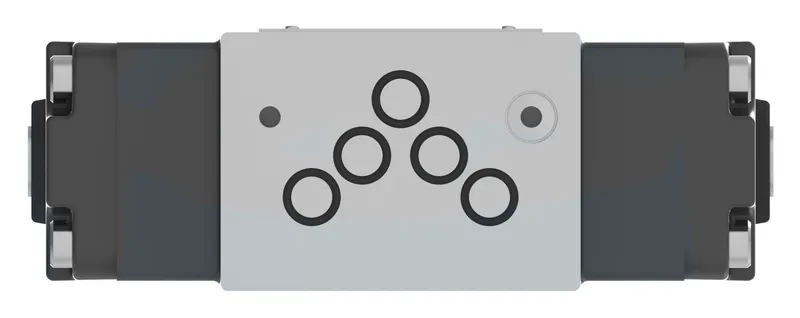

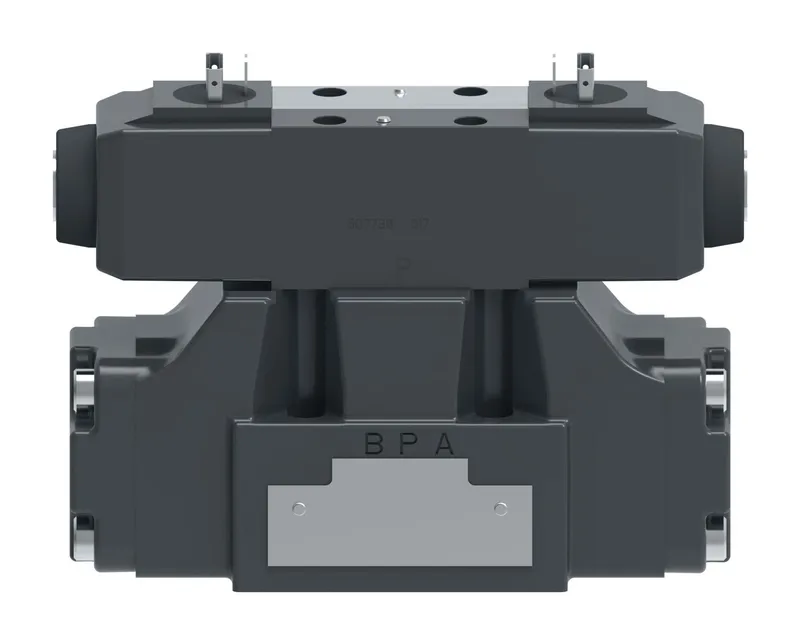

Danfoss DG5V 5 2C T VM U H7 10, DG5V52CTVMUH710, manufacturer part number 02-412951. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Pilot operated
Brand	Vickers by Danfoss
Coil Rating	24 VDC
Design Series	10 Series
Electrical Connection	ISO 4400 (Din 43650) connector
Ext pilot pressure	Internal
Flow rate upto GPM	42.0
Flow rate upto LPM	160.0
Fluid Cleanliness	19/17/14 micron
Fluid compatibility	Petroleum oils
Indicator Light	No
Int pilot drain	Internal
Interface	ISO4401-05
Manual override	Plain
Model Code 1	DG5V52CTVMUH710
Performance	High performance
Power Consumption	30 watt
Pressure rating BAR	315
Pressure rating PSI	4500
Product height in	6.900
Product height mm	175.260
Product length in	8.660
Product length mm	219.964
Product width in	2.860
Product width mm	72.644
Seal type	Buna-N
Solenoid Energising ID	Sol A port A/Sol B port B
Special features	None
Spool Position Monitor	No
Spool Type	Spool 2
Spring Arrangement	Spring centred
Stage	Two stage
Surge Suppr Damper	No
Tank port rating BAR	210
Tank port rating PSI	3000
Valve Mount Type	Subplate/manifold mounted
Valve type	Directional control valve
Working temp max C	80
Working temp max F	176
Working temp min C	-20
Working temp min F	-4

02-412951: frequently asked questions

When can 02-412951 be shipped?

02-412951 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-412951 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-412951 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-412951, subject to availability and destination.
