Danfoss 02-412723

DG5V 5 2N E M U H7 10, DG5V52NEMUH710

MPN
02-412723
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

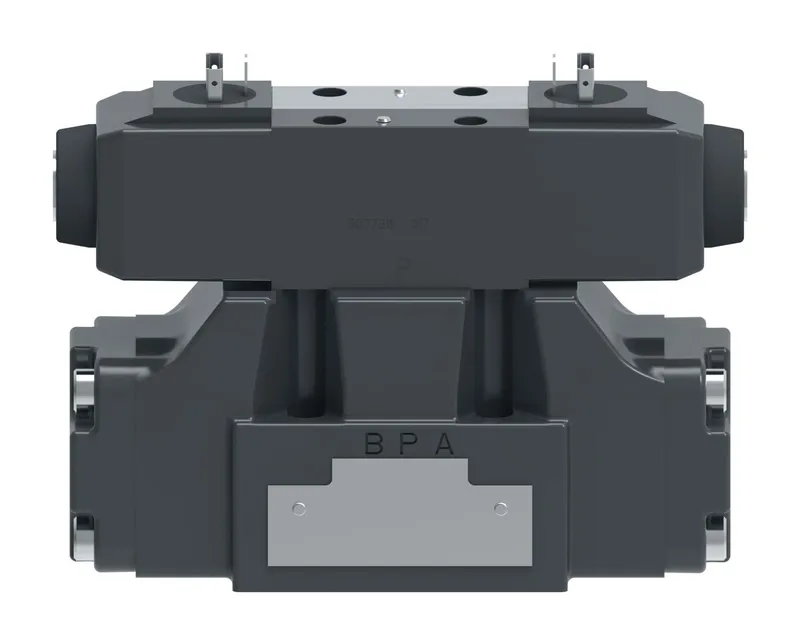

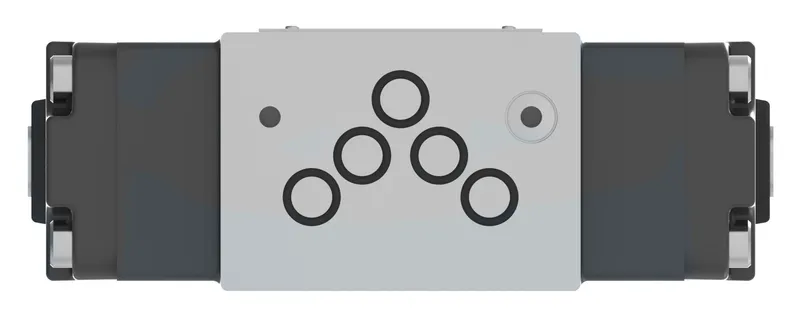

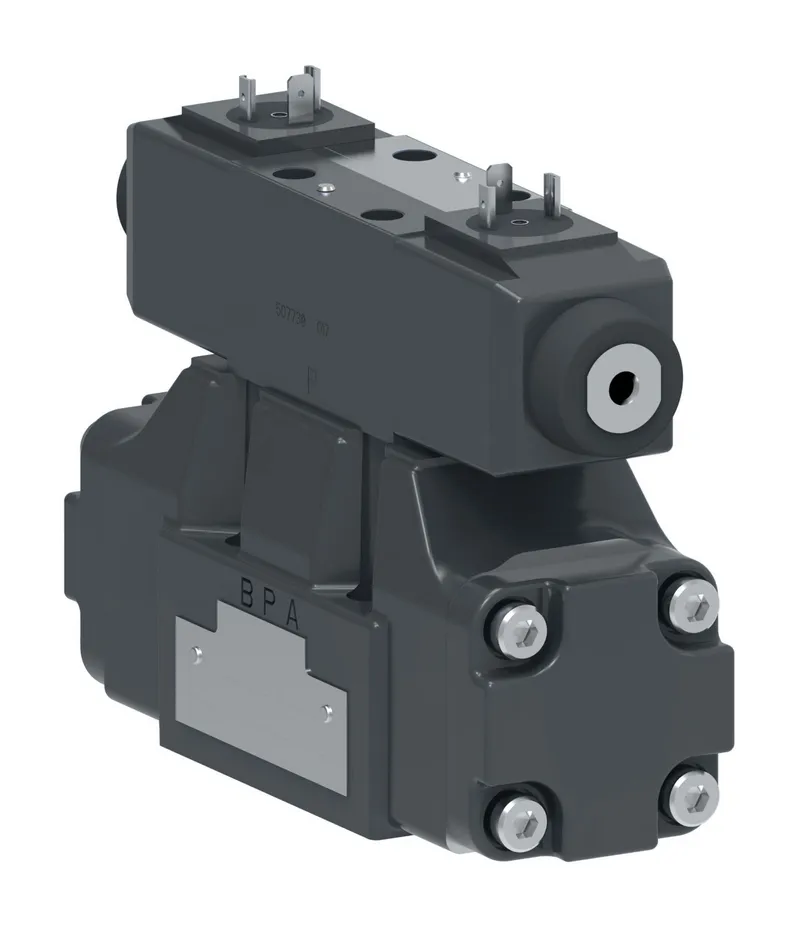

What is the Danfoss 02-412723?

Danfoss DG5V 5 2N E M U H7 10, DG5V52NEMUH710, manufacturer part number 02-412723. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Actuation TypePilot operated
BrandVickers by Danfoss
Coil Rating24 VDC
Design Series10 Series
Electrical ConnectionISO 4400 (Din 43650) connector
Ext pilot pressureExternal
Flow rate upto GPM42.0
Flow rate upto LPM160.0
Fluid Cleanliness19/17/14 micron
Fluid compatibilityPetroleum oils
Indicator LightNo
Int pilot drainExternal
InterfaceISO4401-05
Manual overridePlain
Model Code 1DG5V52NEMUH710
PerformanceHigh performance
Power Consumption30 watt
Pressure rating BAR315
Pressure rating PSI4500
Product height in6.900
Product height mm175.260
Product length in8.660
Product length mm219.964
Product width in2.860
Product width mm72.644
Seal typeBuna-N
Solenoid Energising IDStandard as per ANSI B93 9
Special featuresNone
Spool Position MonitorNo
Spool TypeSpool 2
Spring ArrangementNo spring detented
StageTwo stage
Surge Suppr DamperNo
Tank port rating BAR210
Tank port rating PSI3000
Valve Mount TypeSubplate/manifold mounted
Valve typeDirectional control valve
Working temp max C80
Working temp max F176
Working temp min C-20
Working temp min F-4

02-412723: frequently asked questions

When can 02-412723 be shipped?

02-412723 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-412723 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-412723 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-412723, subject to availability and destination.
