XCG2V-10CW-B-10, XCG2V10CWB10
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Industrial valves |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 02-412641 be shipped?
02-412641 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 02-412641 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 02-412641 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-412641, subject to availability and destination.

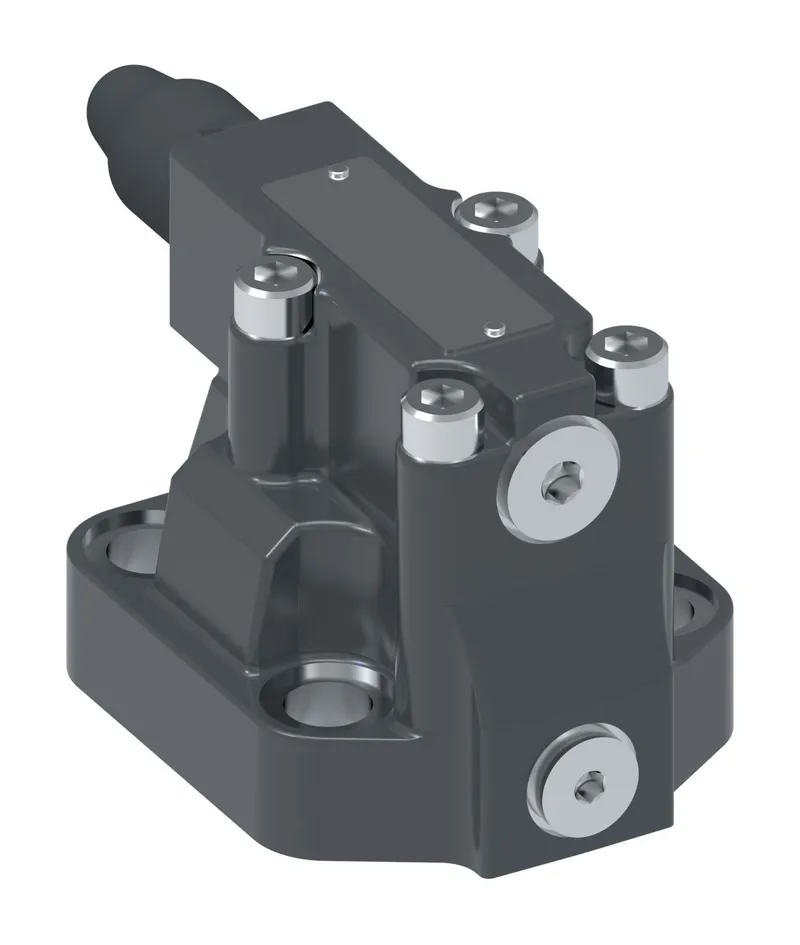

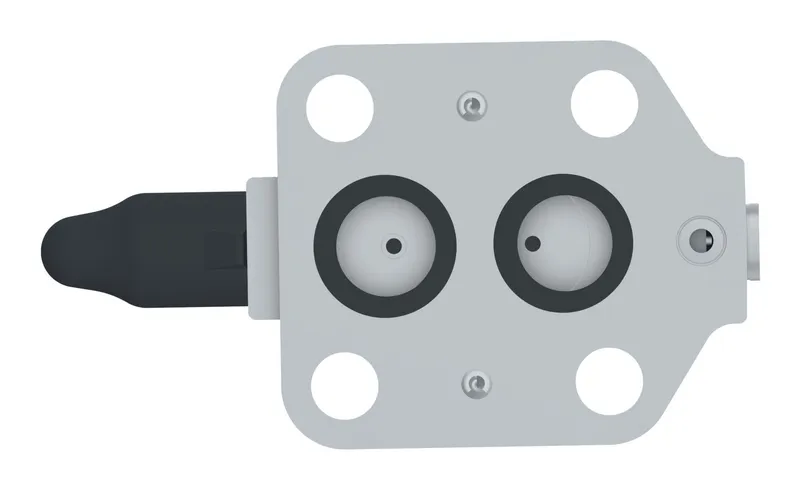

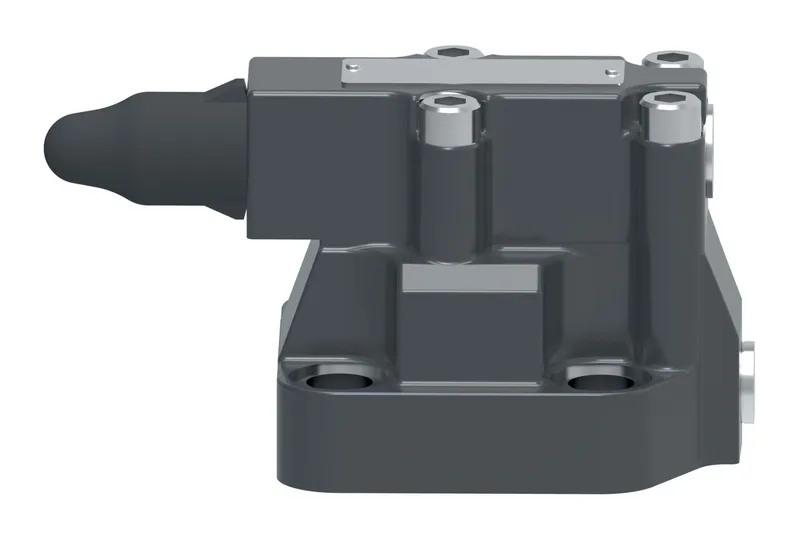

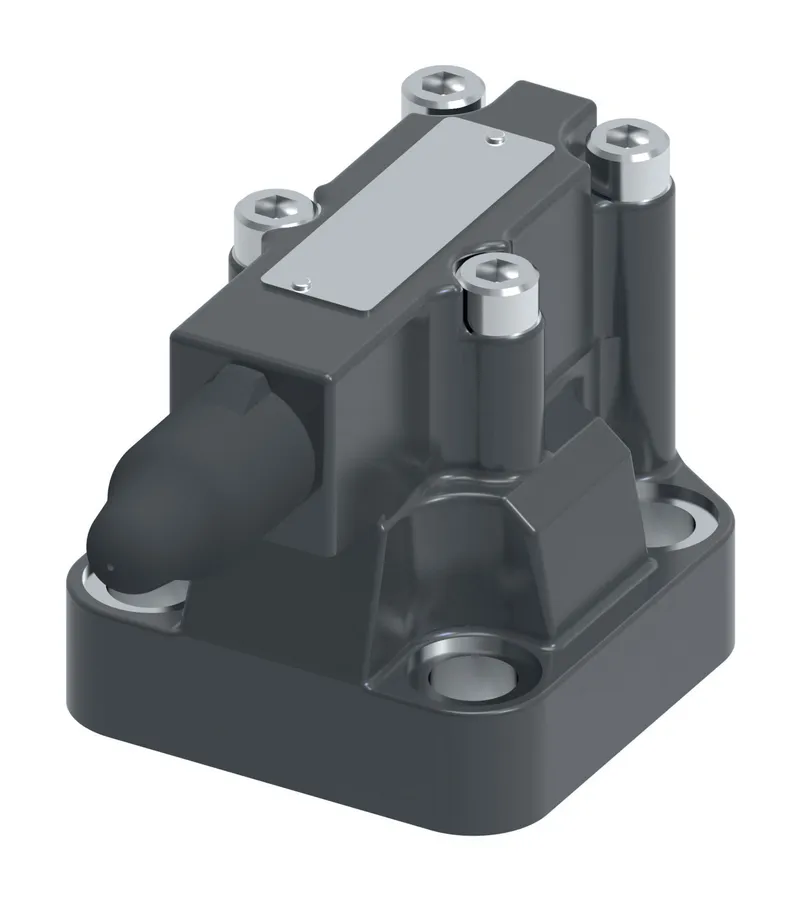

Danfoss XCG2V-10CW-B-10, XCG2V10CWB10, manufacturer part number 02-412641. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Actuation Type | Manually operated |
| Adjustment range bar | 50 |
| Adjustment range PSI | 725 |
| Adjustment type | Wrench |
| Brand | Vickers by Danfoss |
| Check valve | Yes |
| Design Series | 10 Series |
| Drain | Internal |
| Electrical connection | None |
| Flow rate lpm | 400.0 |
| Flow rate USGPM | 105.0 |
| Fluid Cleanliness | 19/17/14 Micron |
| Fluid compatibility | Petroleum oils |
| Gauge port thread | G 1/4 BSP |
| Interface | ISO6264-10, Cetop 10 |
| Leakage | Standard |
| Maximum pressure BAR | 315 |
| Maximum pressure PSI | 4500 |
| Model Code 1 | XCG2V10CWB10 |
| Performance | Standard |
| Product height in | 5.110 |
| Product height mm | 129.794 |
| Product length in | 5.700 |
| Product length mm | 144.780 |
| Product width in | 4.720 |
| Product width mm | 119.888 |
| Seal material | Nitrile |
| Special feature | None |
| Stage | Two stage |
| Valve Mount Type | Subplate mounted |
| Valve type | Reducing valve |
| Working temperature max C | 80 |
| Working temperature max F | 176 |
| Working temperature min C | -30 |
| Working temperature min F | -22 |
