Danfoss 02-411553

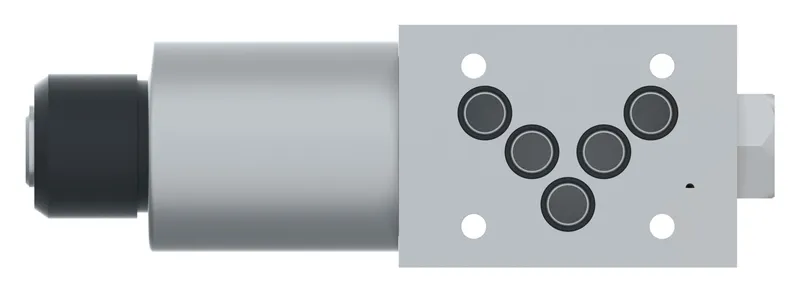

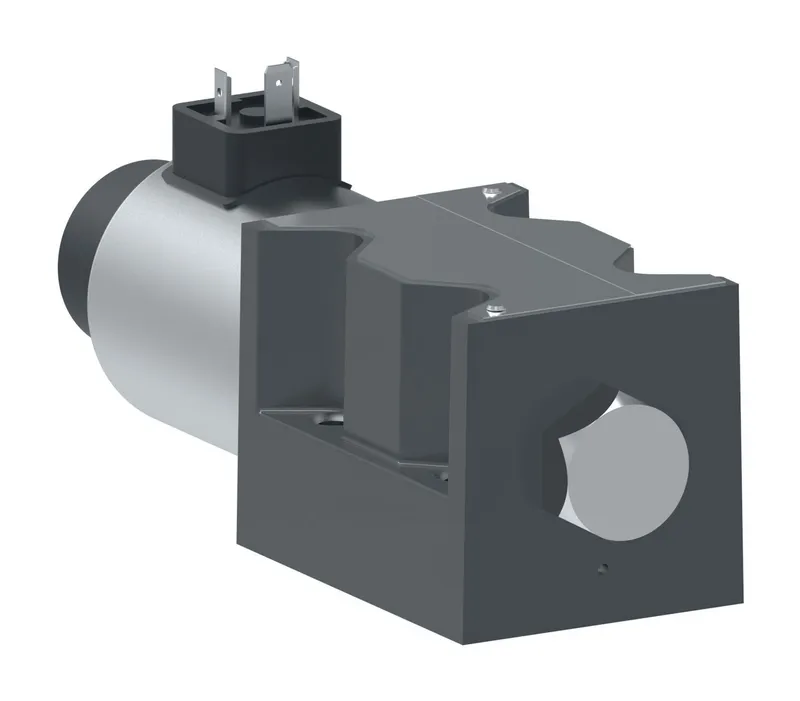

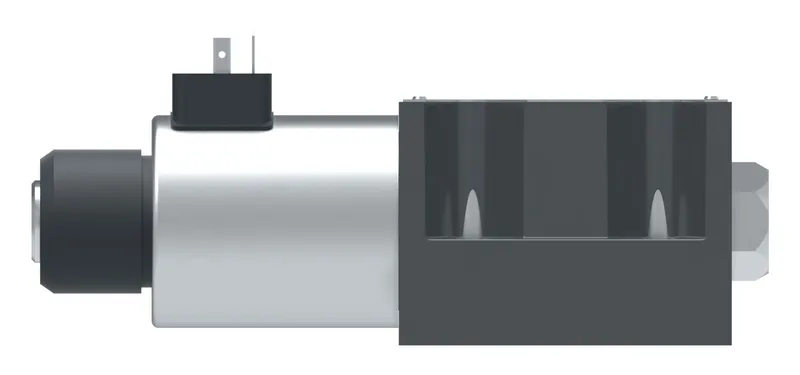

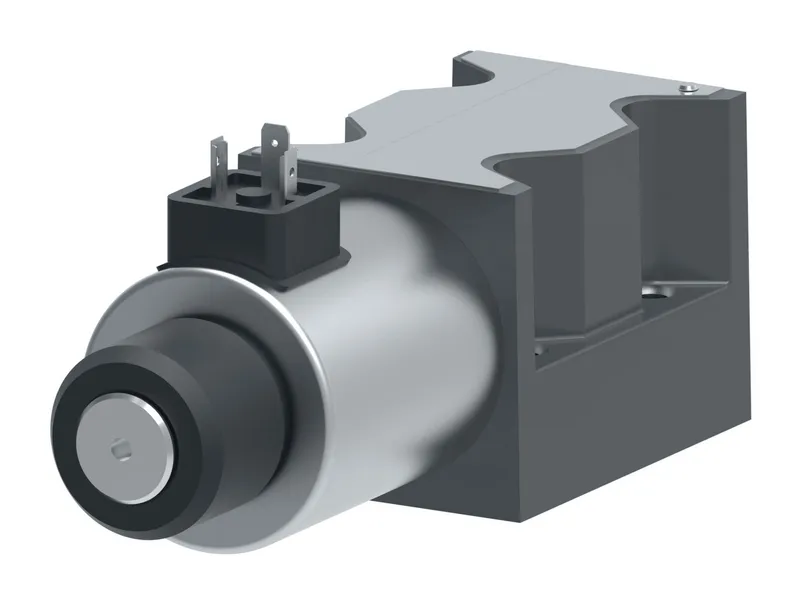

DG4V 5 0B VM U C6 20, DG4V50BVMUC620

MPN
02-411553
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-411553?

Danfoss DG4V 5 0B VM U C6 20, DG4V50BVMUC620, manufacturer part number 02-411553. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Actuation TypeSolenoid operated
BrandVickers by Danfoss
Coil Rating220 VAC 50Hz
Design Series20 Series
Electrical ConnectionISO 4400 (Din 43650) connector
Energ Time30-40 ms
Flow rate upto GPM32.0
Flow rate upto LPM120.0
Fluid Cleanliness19/17/14 micron
Fluid compatibilityPetroleum oils
Indicator LightNo
InterfaceISO4401-05/NFPA D05
Manual overridePlain
Model Code 1DG4V50BVMUC620
PerformanceHigh performance
Power Consumption105 VA
Pressure rating BAR315
Pressure rating PSI4500
Product height in4.530
Product length in7.170
Product length mm182.118
Product width in2.800
Product width mm71.12
Seal typeWATER GLYCOL
Solenoid Energising IDSolenoid B at port B end
Special featuresNone
Spool Position MonitorNo
Spool TypeSpool 0
Spring ArrangementSpring offset end to centre
StageSingle stage
Surge Suppr DamperNo
Tank port rating BAR120
Tank port rating PSI1750
Valve Mount TypeSubplate/manifold mounted
Valve typeDirectional control valve
Working temp max C50
Working temp max F122
Working temp min C-20
Working temp min F-4

02-411553: frequently asked questions

When can 02-411553 be shipped?

02-411553 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-411553 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-411553 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-411553, subject to availability and destination.
