Danfoss 02-411500

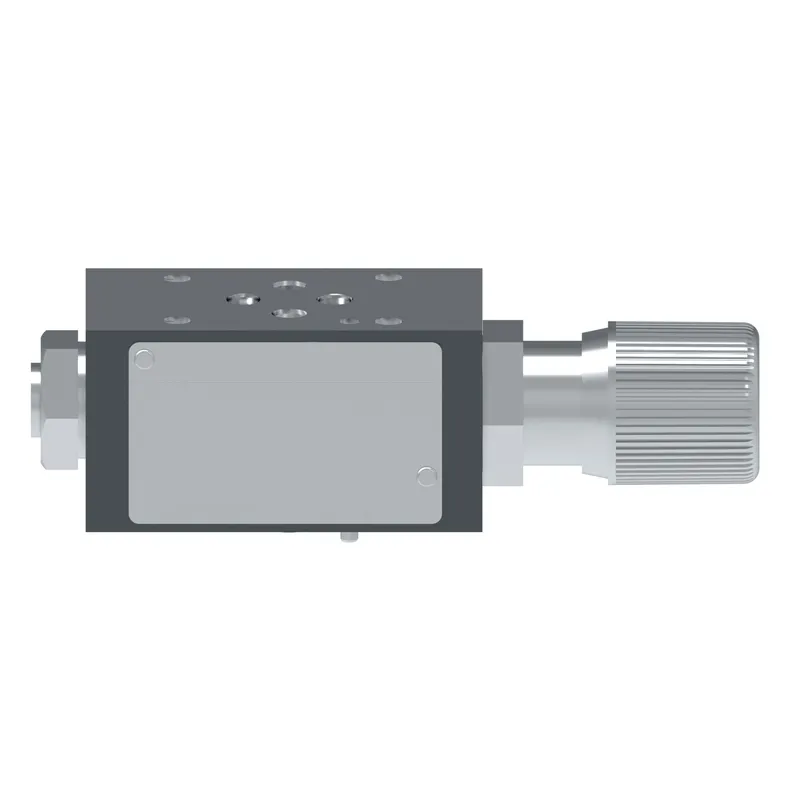

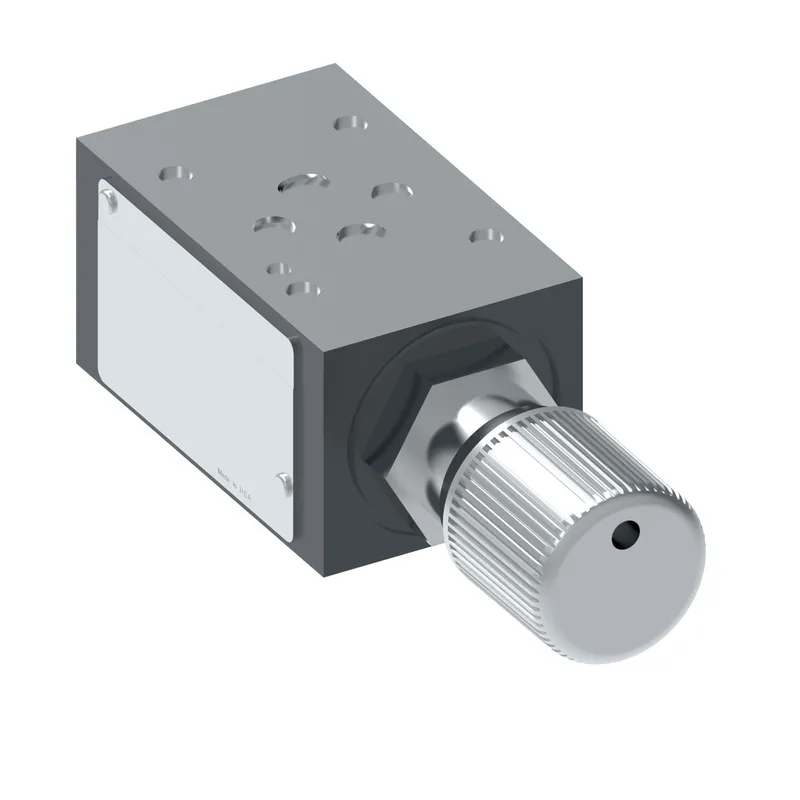

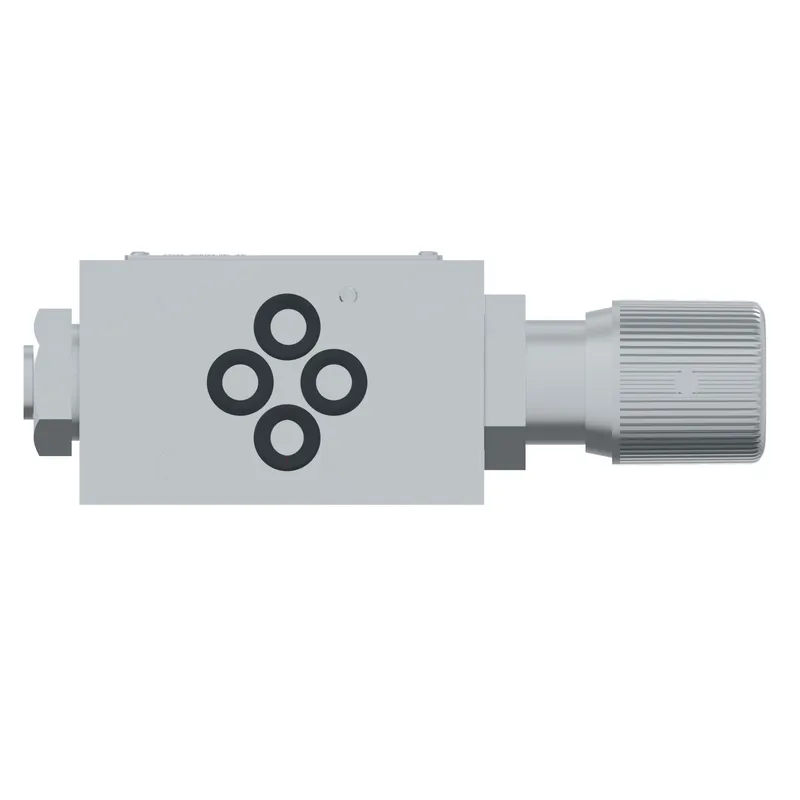

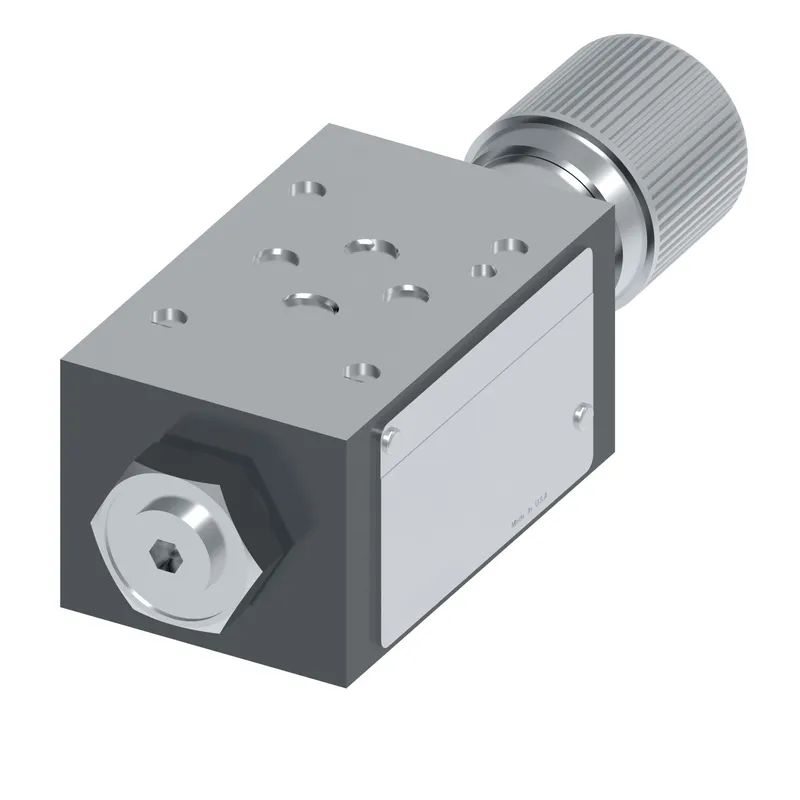

DGMX1-3-PP-RH-B-40, DGMX13PPRHB40

MPN: 02-411500
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-411500?

Danfoss DGMX1-3-PP-RH-B-40, DGMX13PPRHB40, manufacturer part number 02-411500. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Pressure operated
Adjustment location	Adjuster - B port end of valve
Adjustment type	Handknob
Brand	Vickers by Danfoss
Design Series	40 Series
Flow rate upto LPM	60
Flow rate upto USGPM	16.0
Fluid Cleanliness	19/17/14 micron
Fluid compatibility	Petroleum oils
Function ports	Reducing line P, pilot line P
Gauge Port Thread Type	G1/8" (1/8" BSPF)
Interface	ISO4401-03
Maximum pressure upto bar	315
Maximum pressure upto psi	4500
Model Code 1	DGMX13PPRHB40
Performance	Standard
Pressure adjustment range	1.40-45 bar (21-652 psi)
Product height in	2.360
Product height mm	59.944
Product length in	5.830
Product length mm	148.082
Product width in	2.820
Product width mm	71.628
Seal type	Viton
Special features	None
Valve Mount Type	Subplate/manifold mounted
Valve type	Reducing-relieving underlapped
Working temp max C	80
Working temp max F	176
Working temp min C	-20
Working temp min F	-4
