Danfoss 02-411335

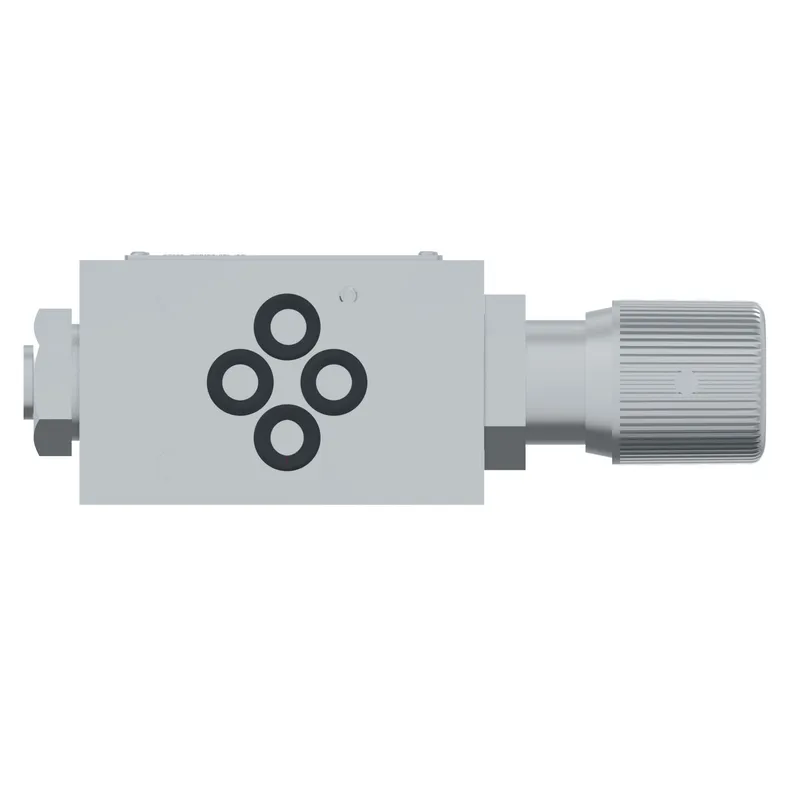

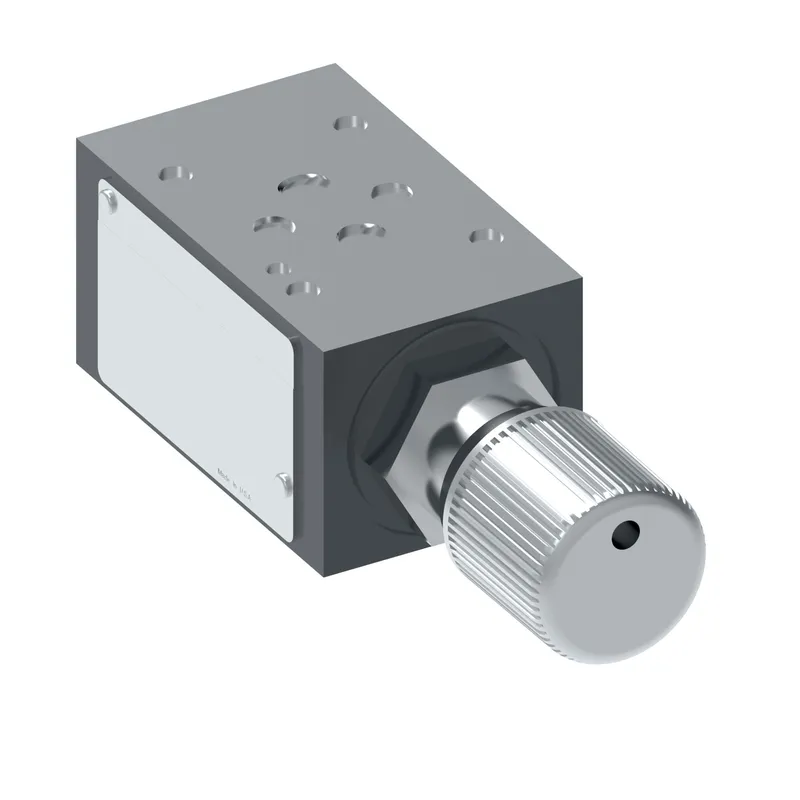

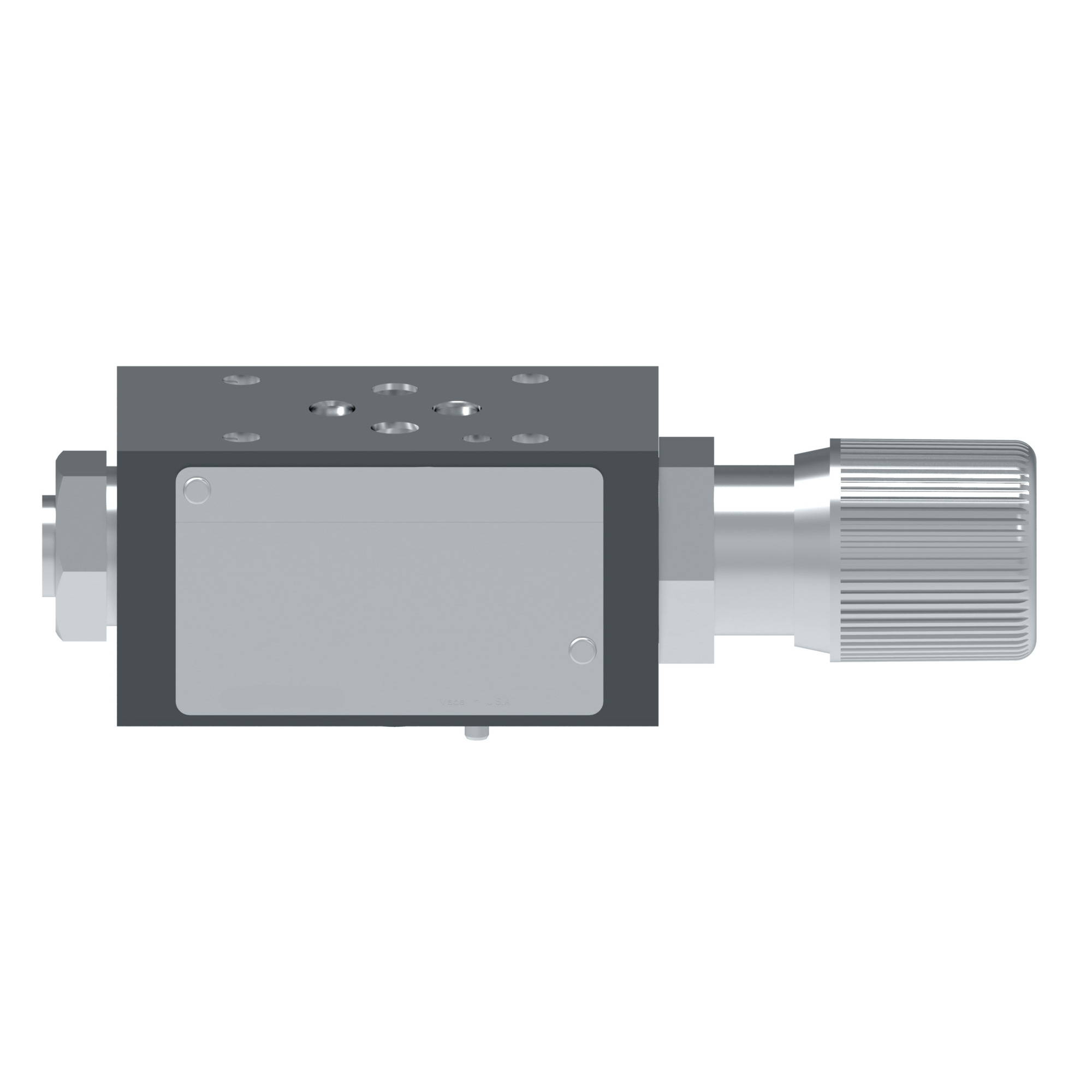

DGMX2-3-PAL-CH-B-40, DGMX23PALCHB40

MPN: 02-411335
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-411335?

Danfoss DGMX2-3-PAL-CH-B-40, DGMX23PALCHB40, manufacturer part number 02-411335. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Pressure operated
Adjustment location	Adjuster - A port end of valve
Adjustment type	Handknob
Brand	Vickers by Danfoss
Design Series	40 Series
Flow rate upto LPM	60
Flow rate upto USGPM	16.0
Fluid Cleanliness	19/17/14 micron
Fluid compatibility	Petroleum oils
Function ports	Reducing line P, pilot line A
Gauge Port Thread Type	G1/8" (1/8" BSPF)
Interface	ISO4401-03
Maximum pressure upto bar	315
Maximum pressure upto psi	4500
Model Code 1	DGMX23PALCHB40
Performance	Standard
Pressure adjustment range	10-140 bar (145-2000 psi)
Product height in	2.360
Product height mm	59.944
Product length in	7.050
Product length mm	179.070
Product width in	2.820
Product width mm	71.628
Seal type	Viton
Special features	None
Valve Mount Type	Subplate/manifold mounted
Valve type	Reducing-relieving overlapped
Working temp max C	80
Working temp max F	176
Working temp min C	-20
Working temp min F	-4
