Home / Danfoss (Drives) / Industrial valves / Danfoss 02-402834
Danfoss (Drives)

Danfoss 02-402834

MPN
02-402834
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

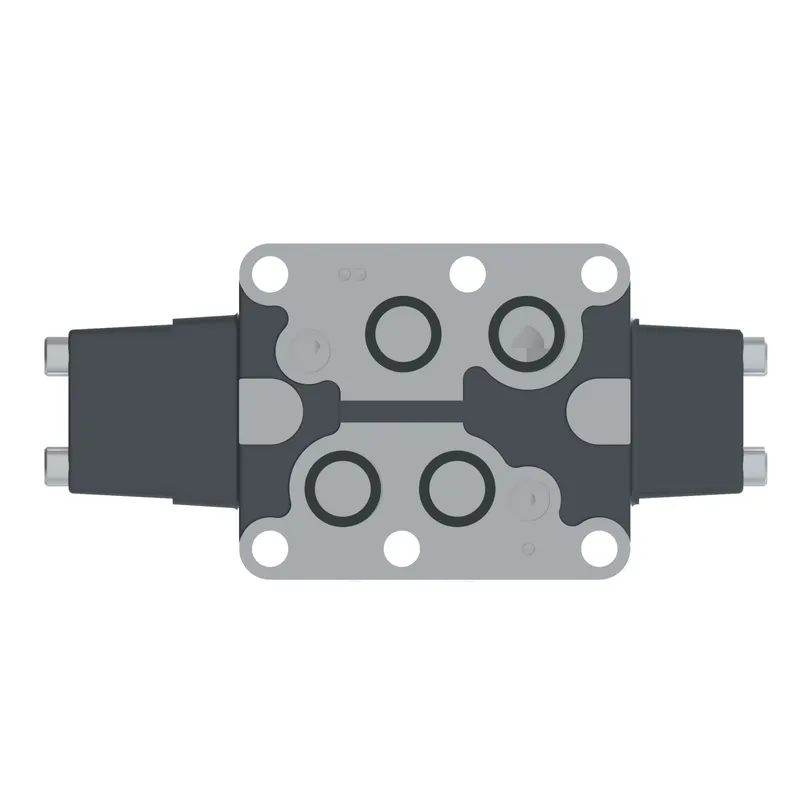

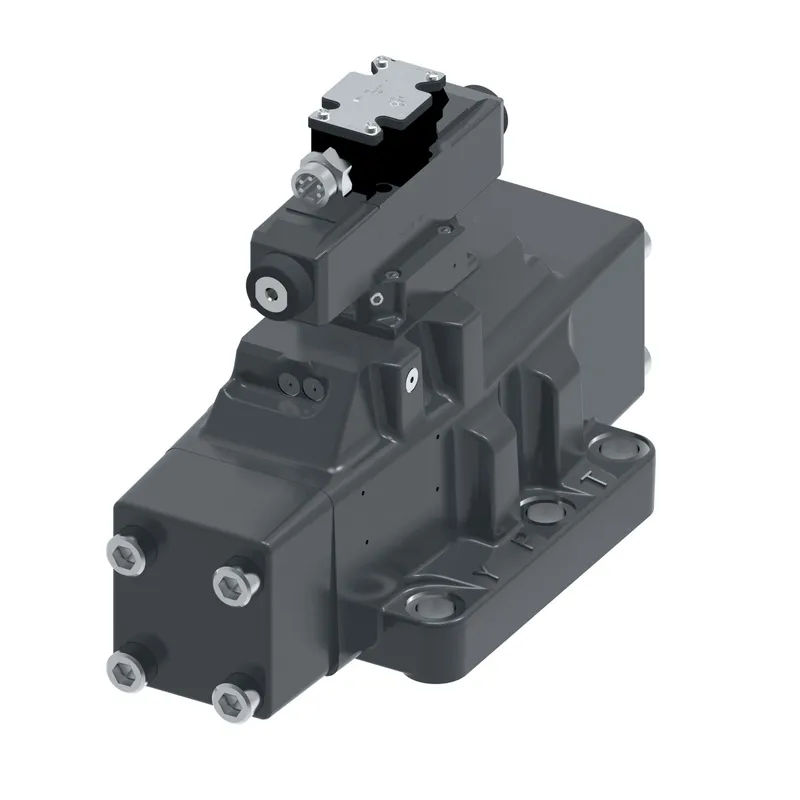

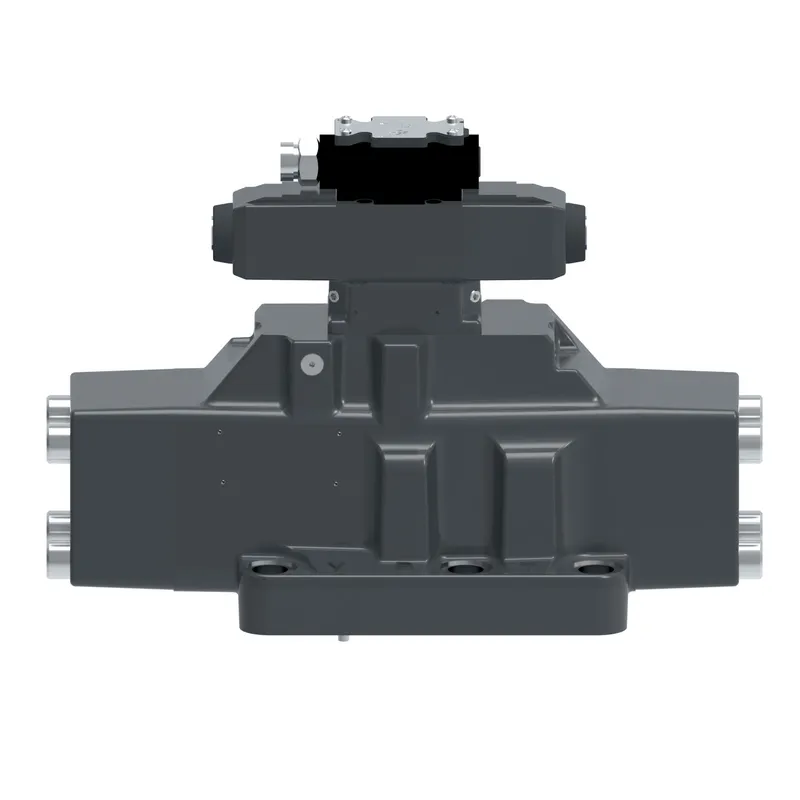

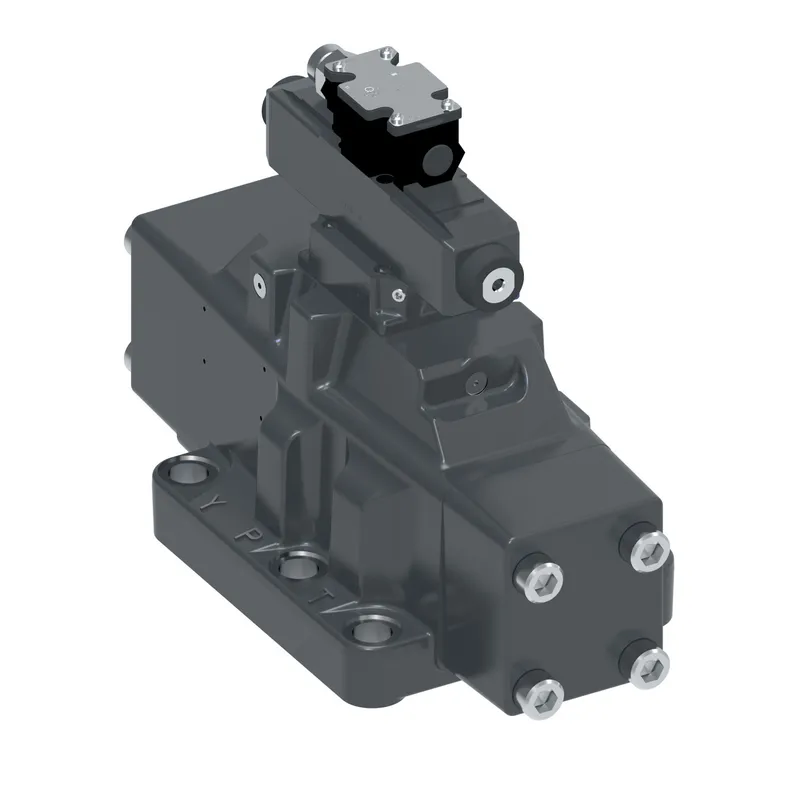

What is the Danfoss 02-402834?

Danfoss F3-DG5V-10-S-2C-3-E-M-FP A5WL-B-11, manufacturer part number 02-402834. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Actuation TypePilot operated
BrandVickers by Danfoss
Design Series11 Series
Ext pilot pressureExternal
Flow rate upto GPM290.0
Flow rate upto LPM1100.0
Fluid Cleanliness19/17/14 micron
Fluid compatibilityPetroleum oils
Gauge Port Thread Type0.4375 - 20 UNF, SAE Thread
Indicator LightYes
Int pilot drainExternal
InterfaceISO4401-10
PerformanceStandard performance
Pressure rating BAR350
Pressure rating PSI5000
Product height in11.990
Product height mm304.546
Product length in16.500
Product length mm419.100
Product width in7.500
Product width mm190.5
Seal typeWATER GLYCOL
Solenoid Energising IDStandard as per ANSI B93 9
Spool TypeSpool 2
Spring ArrangementSpring centred
StageTwo stage
Valve Mount TypeSubplate/manifold mounted
Valve typeDirectional control valve

02-402834: frequently asked questions

When can 02-402834 be shipped?

02-402834 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-402834 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-402834 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-402834, subject to availability and destination.
