Danfoss 02-401712

MPN: 02-401712
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-401712?

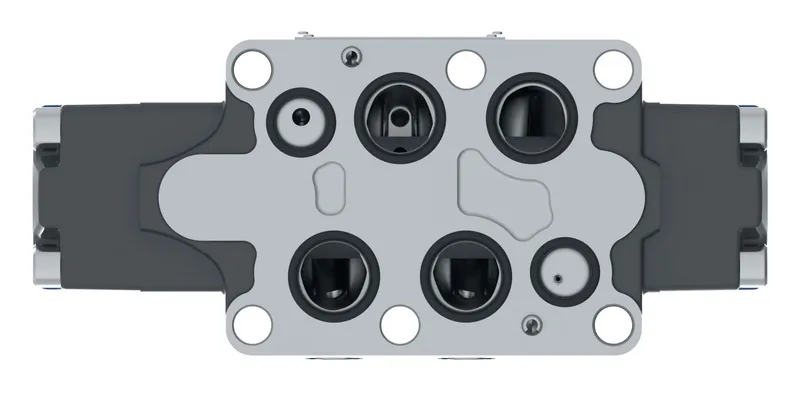

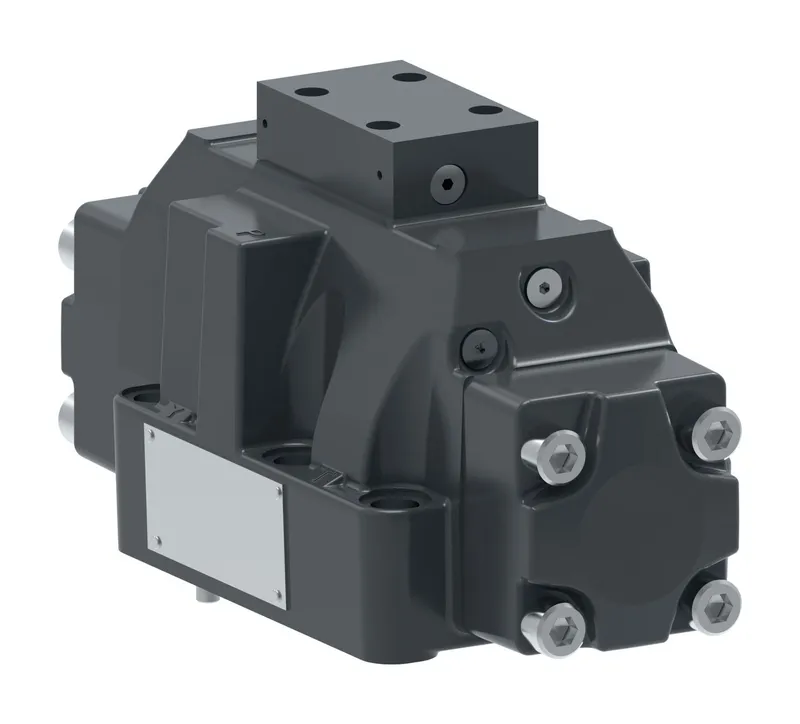

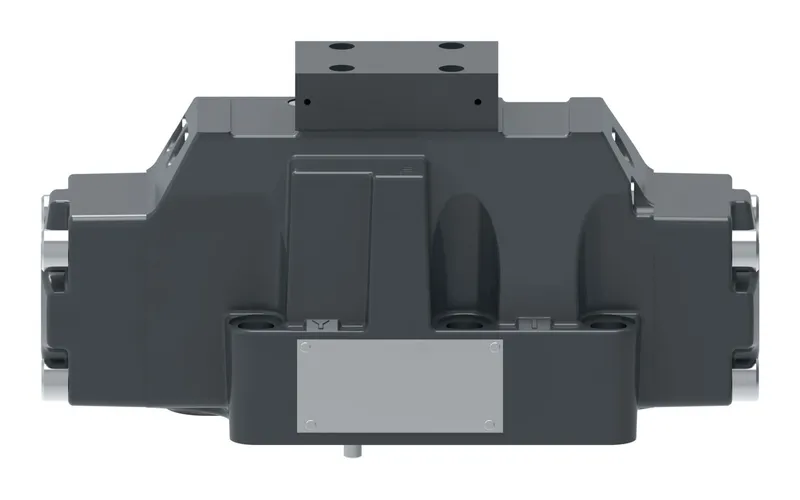

Danfoss F3-DG3V-8-2F-X-10, F3DG3V82FX10, manufacturer part number 02-401712. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Hydraulic operated
Brand	Vickers by Danfoss
Coil Rating	None
Design Series	10 Series
Electrical Connection	None
Energ Time	X-Fast Response
Ext pilot pressure	External
Flow rate upto GPM	185.0
Flow rate upto LPM	700.0
Fluid Cleanliness	19/17/14 micron
Fluid compatibility	Petroleum oils
Gauge Port Thread Type	0.4375 - 20 UNF, SAE Thread
Indicator Light	No
Int pilot drain	Internal
Interface	ISO4401-08
Manual override	None
Model Code 1	F3DG3V82FX10
Performance	High performance
Pressure rating BAR	350
Pressure rating PSI	5000
Product height in	6.810
Product length in	16.370
Product length mm	415.798
Product width in	4.670
Product width mm	118.618
Seal type	WATER GLYCOL
Solenoid Energising ID	None
Special features	None
Spool Position Monitor	No
Spool Type	Spool 2
Spring Arrangement	Spring offset shift to centre
Stage	Two stage
Surge Suppr Damper	No
Valve Mount Type	Subplate/manifold mounted
Valve type	Directional control valve
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
