What is the Danfoss 02-401170?

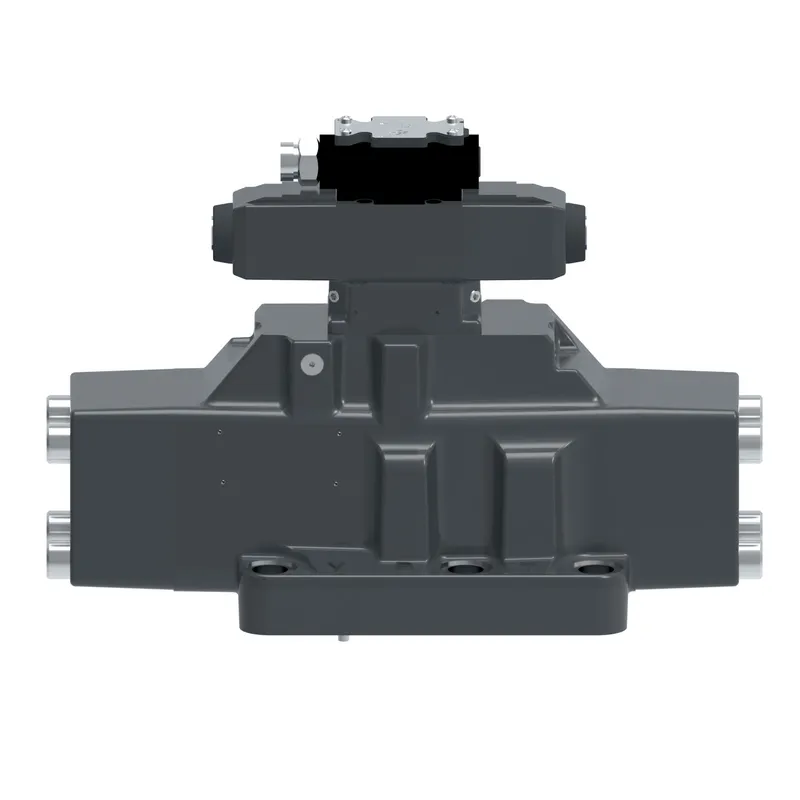

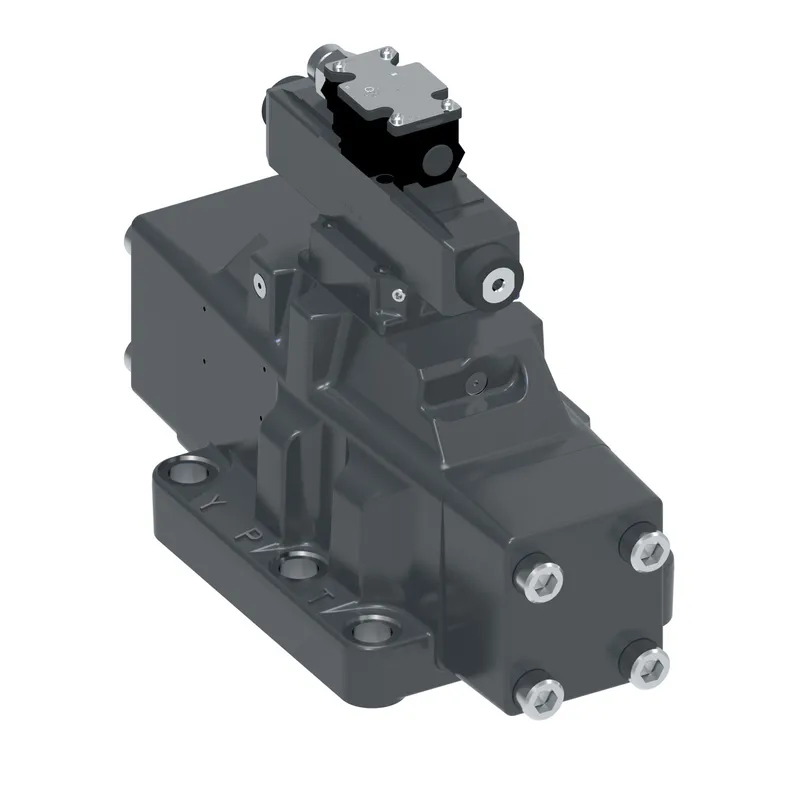

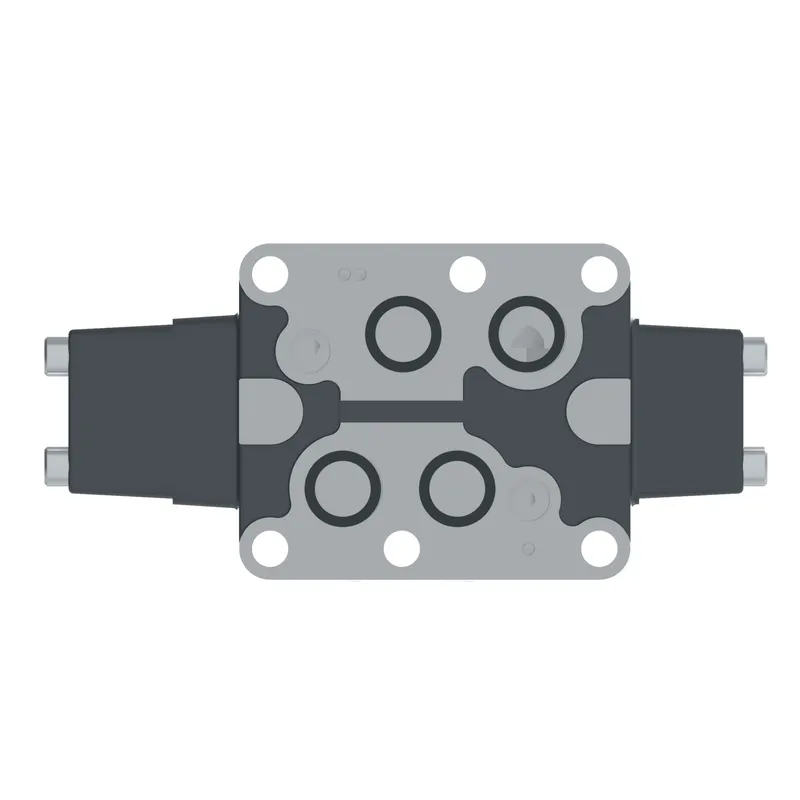

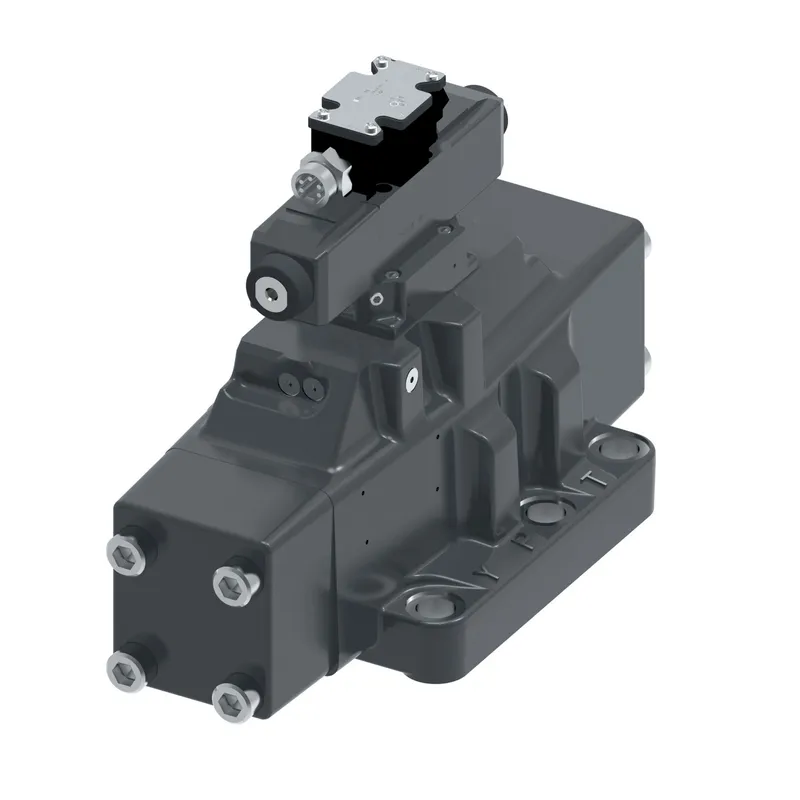

Danfoss DG5V-10-W-3C-M-PA5WL-H-1 0, manufacturer part number 02-401170. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Pilot operated
Brand	Vickers by Danfoss
Design Series	10 Series
Ext pilot pressure	Internal
Flow rate upto GPM	290.0
Flow rate upto LPM	1100.0
Fluid Cleanliness	19/17/14 micron
Fluid compatibility	Petroleum oils
Gauge Port Thread Type	0.4375 - 20 UNF, SAE Thread
Indicator Light	Yes
Int pilot drain	External
Interface	ISO4401-10
Manual override	Plain
Pressure rating BAR	350
Pressure rating PSI	5000
Product height in	10.020
Product height mm	254.508
Product length in	16.500
Product length mm	419.100
Product width in	7.500
Product width mm	190.5
Seal type	Buna-N
Solenoid Energising ID	Standard as per ANSI B93 9
Spool Type	Spool 3
Spring Arrangement	Spring centred
Stage	Two stage
Valve Mount Type	Subplate/manifold mounted
Valve type	Directional control valve
