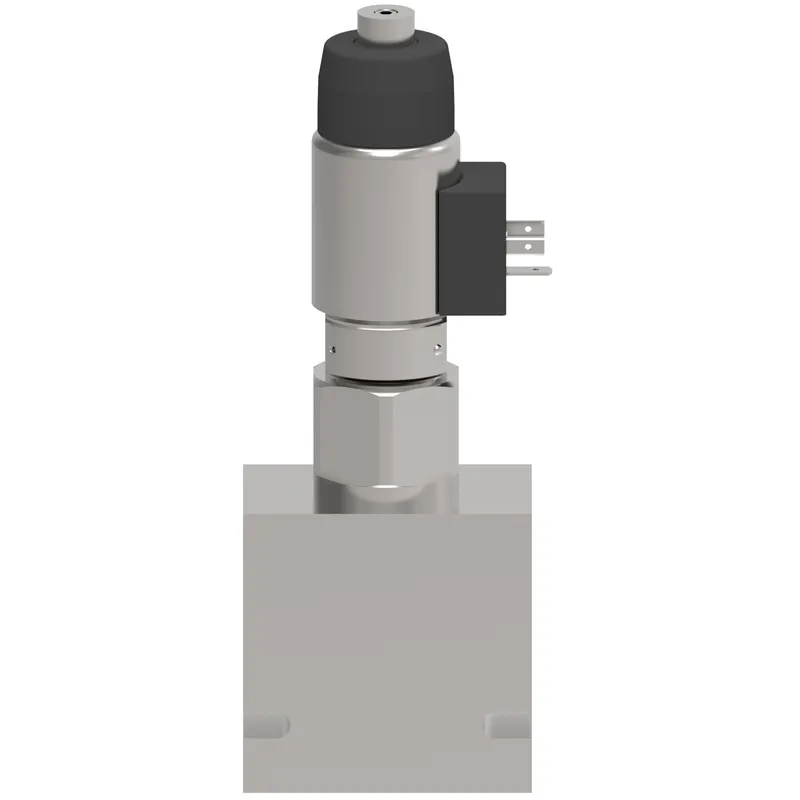

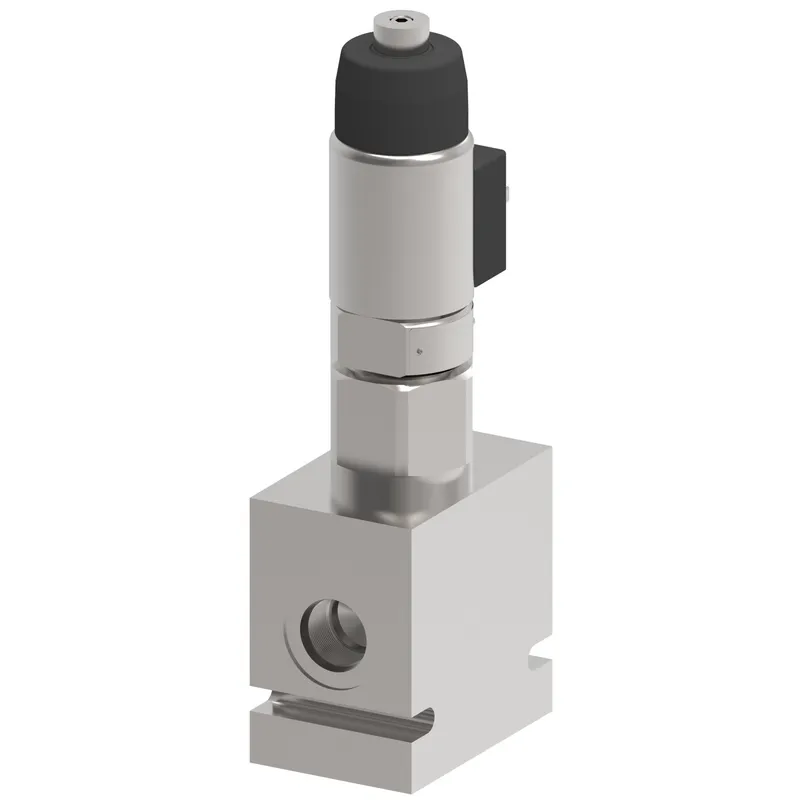

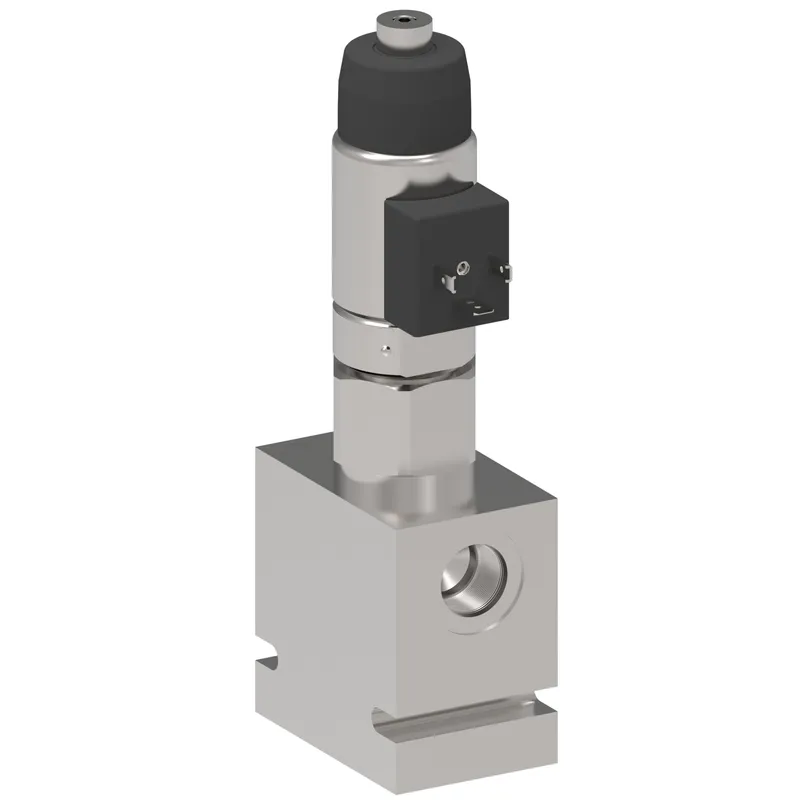

Danfoss 02-400975

EPV16-A-10-S-10H-N-12D-S-N-13, EPV16-A-10-S-10H-N-12D-S-N-13

MPN: 02-400975
Category: Cartridge valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-400975?

Danfoss EPV16-A-10-S-10H-N-12D-S-N-13, EPV16-A-10-S-10H-N-12D-S-N-13, manufacturer part number 02-400975. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Brand	Vickers by Danfoss
Cavity	C-16-3S
Coil series	EPV Series
Coil termination	Deutsch Moulded
Diode	No
Flow rate GPM	26.00
Flow rate LPM	100.000
Fluid compatibility	MIL-H-5606, SAE10, SAE20, etc
Function	Prop Flow Control
Housing	Yes
Housing material	Steel
Installation type	Screw-in Cartridge
Leakage	50 cc/min
Minimum working pressure BAR	100.00
Minimum working pressure PSI	1454.00
Model Code 1	EPV16-A-10-S-10H-N-12D-S-N-13
Number of housing ports	3
Number of valve ports	3
Operating temperature	-30 C to 90 C (-22 to 194 F)
Operation	Elecro Proportionally Ctrl
Override type	Screw-in type
Port size	5/8"
Port type	SAE
Pressure rating BAR	280.00
Pressure rating PSI	4000.00
Product height in	9.040
Product height mm	229.616
Product length in	3.970
Product length mm	100.838
Product width in	2.380
Product width mm	60.452 mm
Recommended filtration level	15/13/11
Seal type	Buna-N
Special features	None
Style	Poppet
Torque into aluminium cavity	108-122 Nm
Torque into steel cavity	136-149 Nm
Voltage	12 V
Voltage type	DC
Working pressure max BAR	280.00
Working pressure max PSI	4000.00
