Danfoss 02-400133

DG5S4-042C-M-U-H7-71, DG5S4042CMUH771

MPN
02-400133
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-400133?

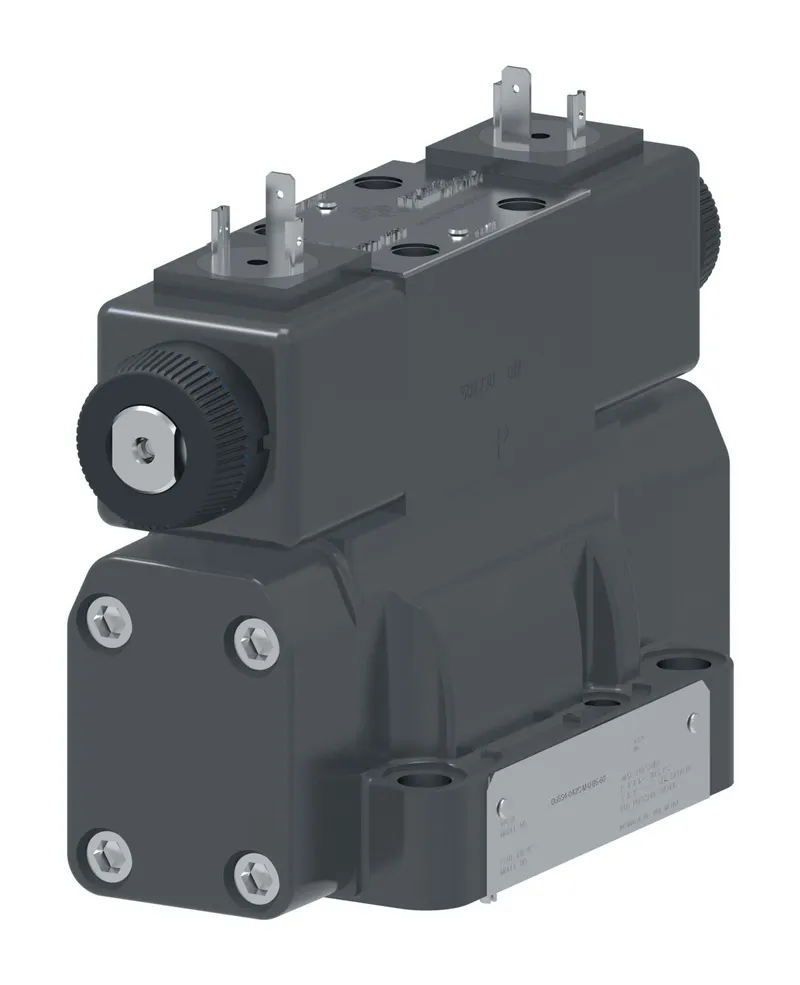

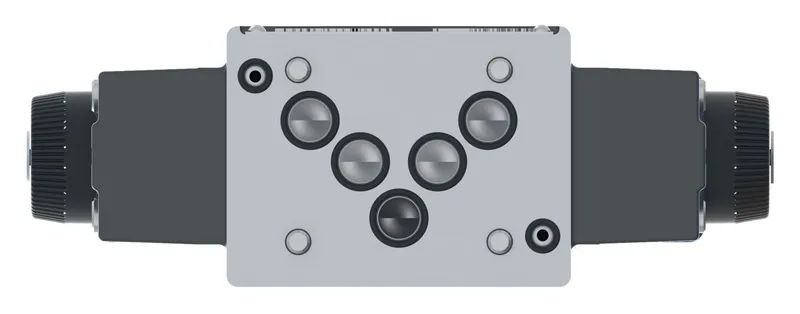

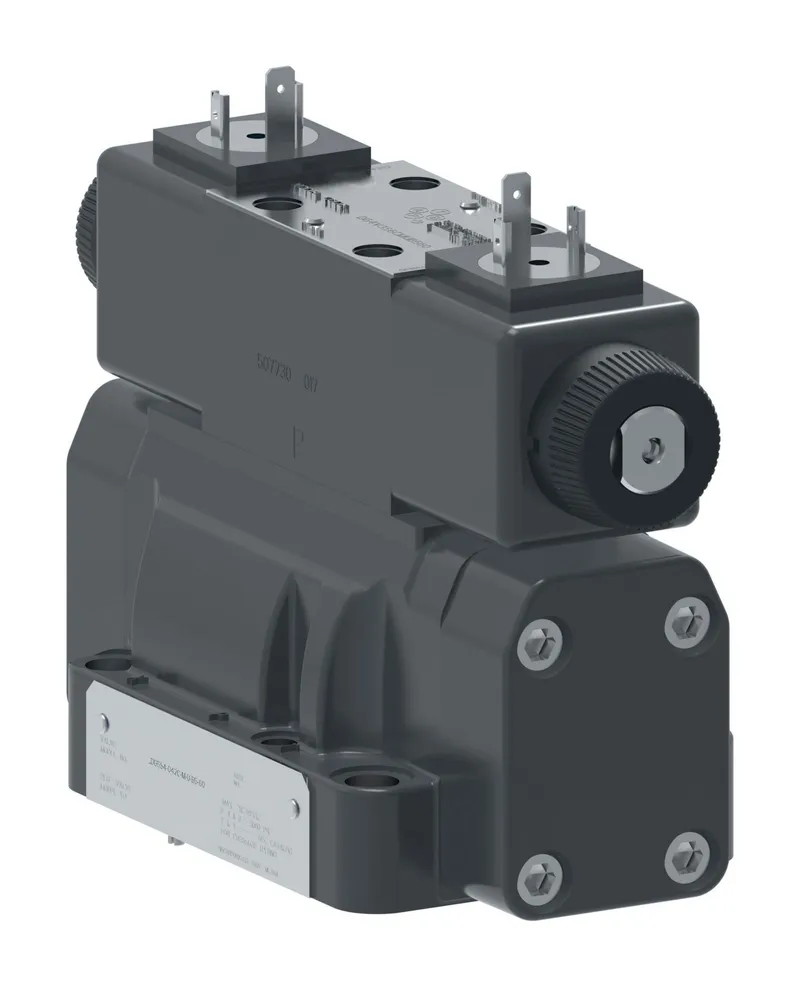

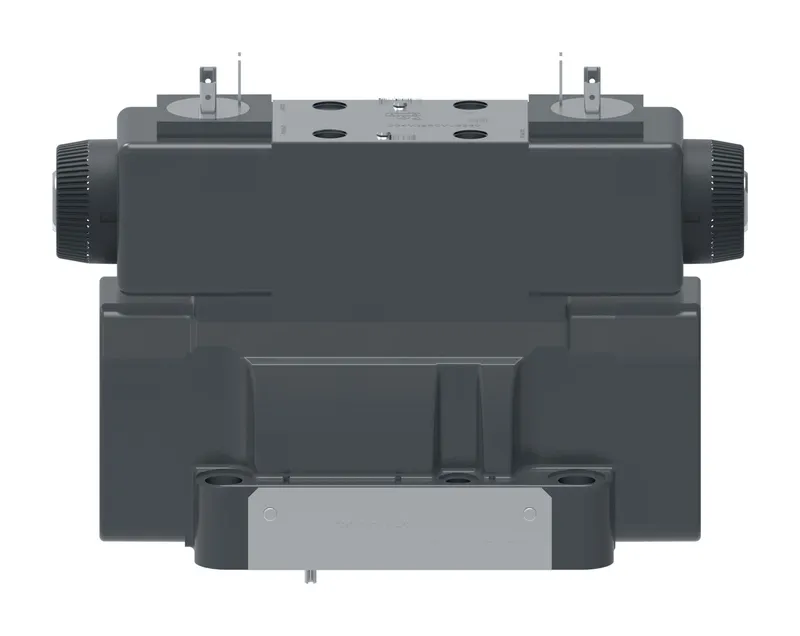

Danfoss DG5S4-042C-M-U-H7-71, DG5S4042CMUH771, manufacturer part number 02-400133. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Actuation TypePilot operated
BrandVickers by Danfoss
Coil Rating24 VDC
Design Series71 Series
Electrical ConnectionISO 4400 (Din 43650) connector
Ext pilot pressureInternal
Flow rate upto GPM60.0
Flow rate upto LPM227.0
Fluid Cleanliness19/17/14 micron
Fluid compatibilityPetroleum oils
Gauge Port Thread Type0.3125 - 24UNF
Indicator LightNo
Int pilot drainExternal
InterfaceISO4401-07
Manual overridePlain
Model Code 1DG5S4042CMUH771
PerformanceStandard performance
Power Consumption30 watt
Pressure rating BAR210
Pressure rating PSI3000
Product height in6.360
Product height mm161.544
Product length in9.580
Product length mm243.332
Product width in3.500
Product width mm88.9
Seal typeBuna-N
Solenoid Energising IDStandard as per ANSI B93 9
Special featuresNone
Spool Position MonitorNo
Spool TypeSpool 2
Spring ArrangementSpring centred
StageTwo stage
Surge Suppr DamperNo
Tank port rating BAR210
Tank port rating PSI3000
Valve Mount TypeSubplate/manifold mounted
Valve typeDirectional control valve
Working temp max C70
Working temp max F158
Working temp min C-20
Working temp min F-4
