Danfoss 02-400065

Industrial valve

MPN
02-400065
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-400065?

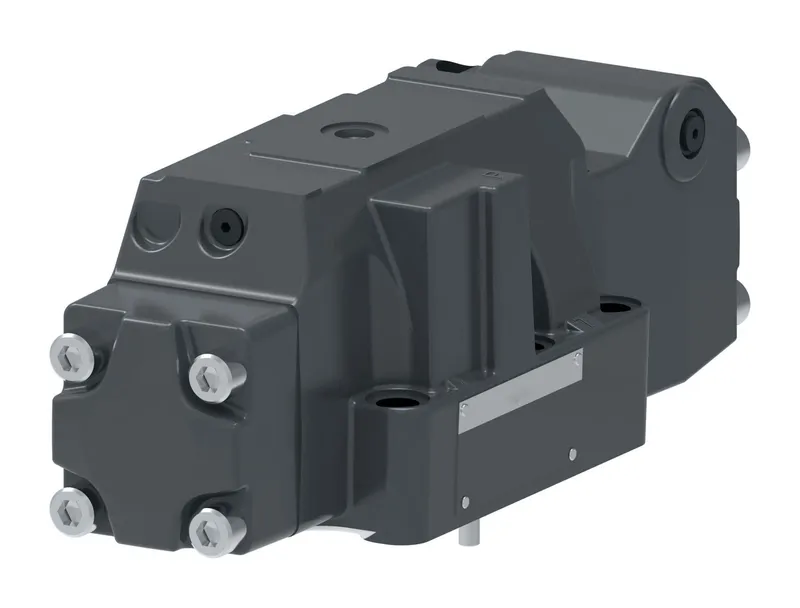

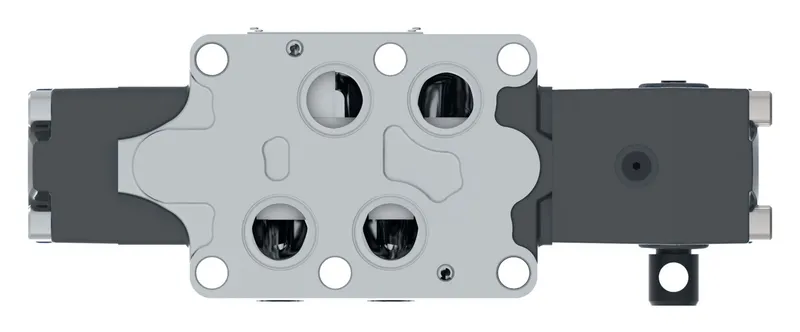

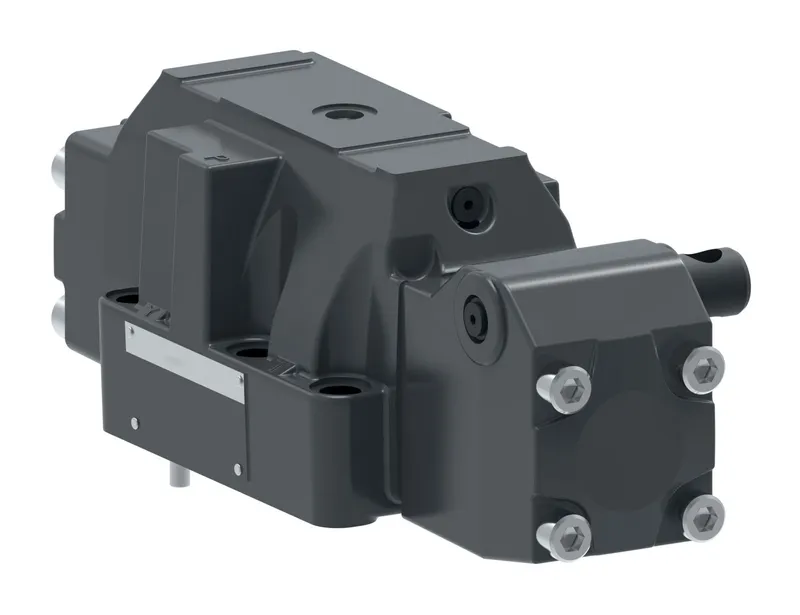

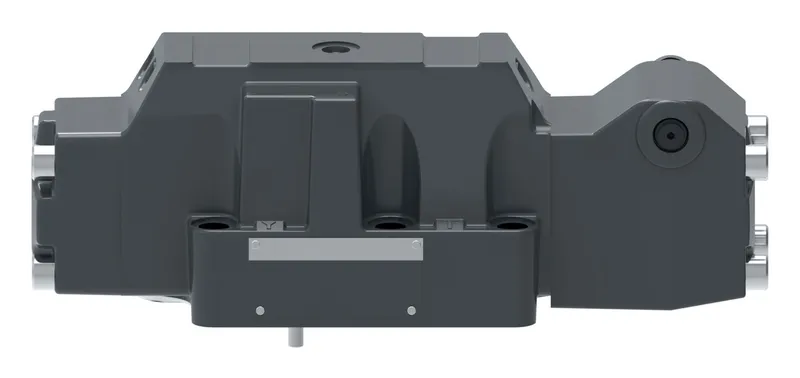

Danfoss DG17V-8-33N-10, DG17V833N10, manufacturer part number 02-400065. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Actuation TypeManual lever operated
BrandVickers by Danfoss
Coil RatingNone
Design Series10 Series
Electrical ConnectionNone
Flow rate upto GPM100.0
Flow rate upto LPM380.0
Fluid Cleanliness19/17/14 micron
Fluid compatibilityPetroleum oils
Gauge Port Thread Type0.4375 - 20 UNF, SAE Thread
Indicator LightNo
Int pilot drainExternal
InterfaceISO4401-08
Manual overrideNone
Model Code 1DG17V833N10
PerformanceStandard performance
Pressure rating BAR350
Pressure rating PSI5000
Seal typeBuna-N
Spool TypeSpool 33
Spring ArrangementNo spring detented
StageSingle stage
Surge Suppr DamperNo
Valve Mount TypeSubplate/manifold mounted
Valve typeDirectional control valve
Working temp max C70
Working temp max F158
Working temp min C-20
Working temp min F-4
