Danfoss 02-399927

CG5-062A-C-M-U-H5-100 RELIEF VALVE, CG5062ACMUH5100

MPN
02-399927
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

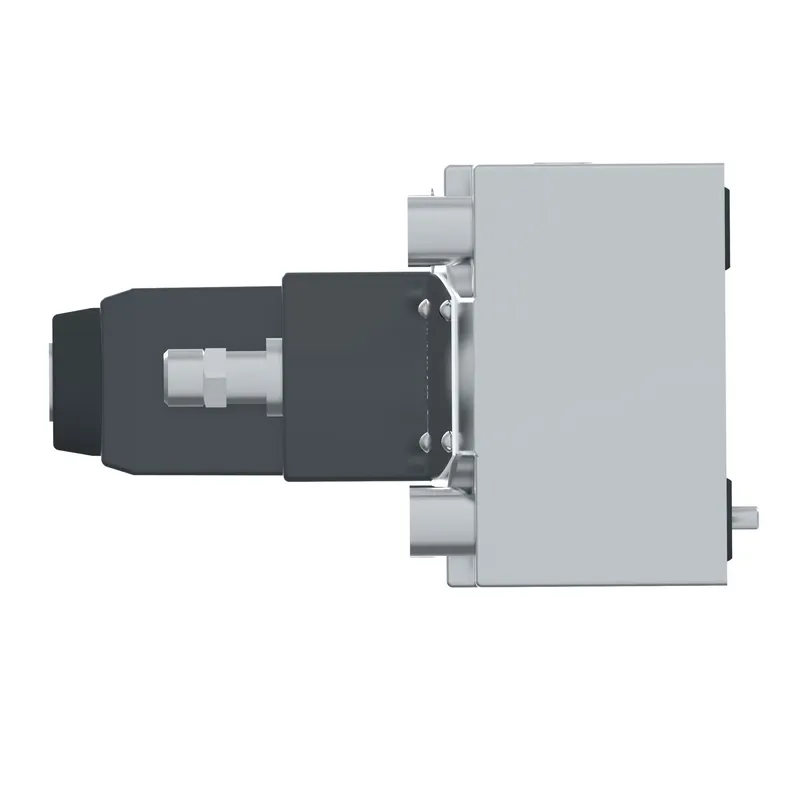

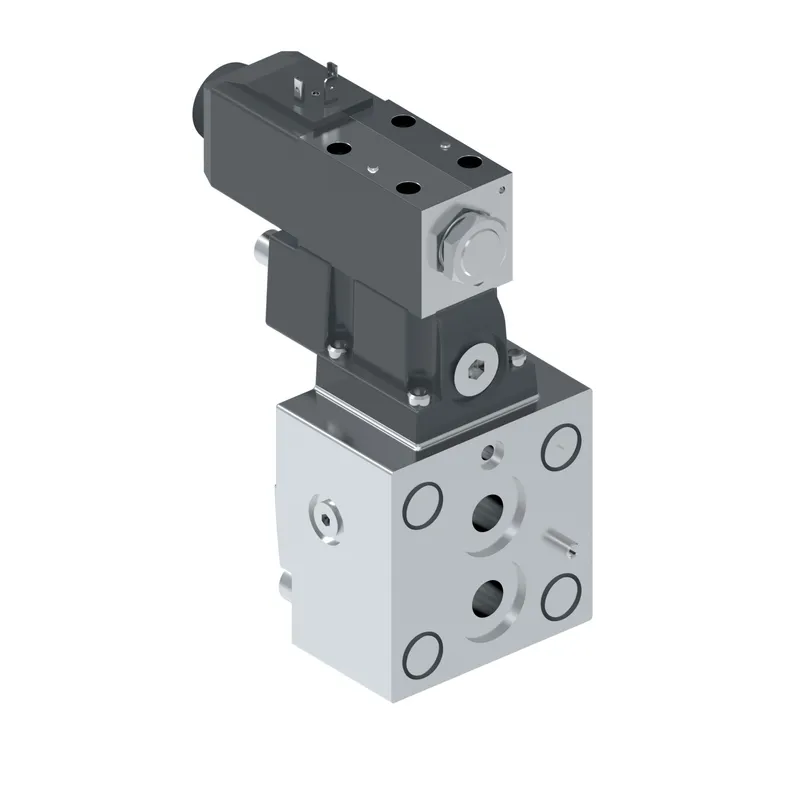

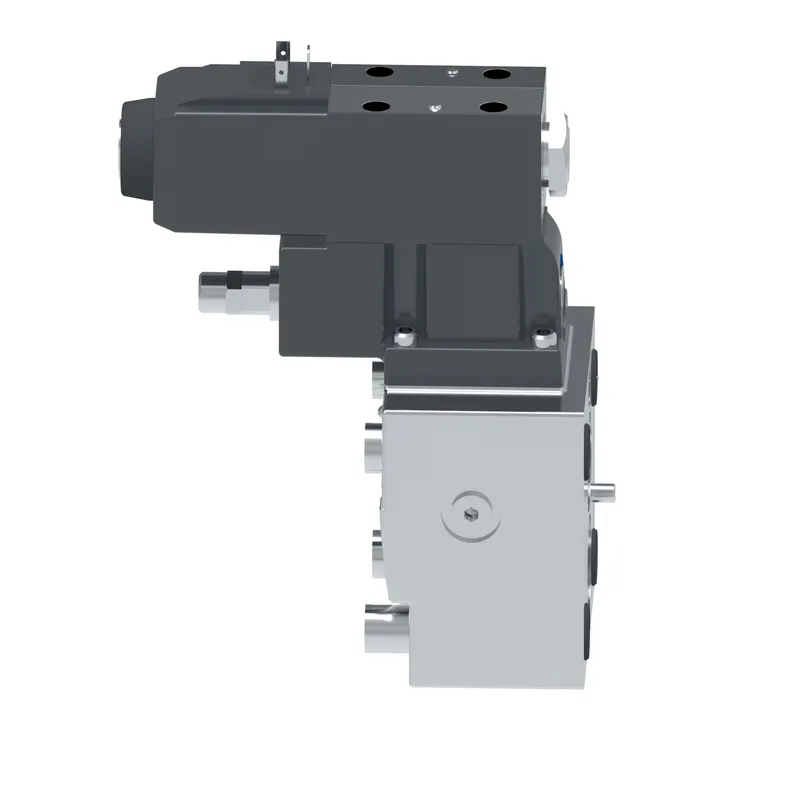

What is the Danfoss 02-399927?

Danfoss CG5-062A-C-M-U-H5-100 RELIEF VALVE, CG5062ACMUH5100, manufacturer part number 02-399927. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Actuation TypeSolenoid operated
Adjustment range35-140 bar (500-2000 psi)
Adjustment typeWrench
BrandVickers by Danfoss
Coil voltage24 VDC
Design Series100 Series
DrainInternal
Electrical connectionISO4400 (Din 43650) Connector
Flow rate lpm227.0
Flow rate USGPM60.0
Fluid Cleanliness19/17/14 Micron
Fluid compatibilityPetroleum oils
Gauge port thread0.4375-20 UNF-2B
Interface1.0625-12 UF-2B
LeakageStandard
Manual overridePlain
Maximum pressure BAR210
Maximum pressure PSI3000
Model Code 1CG5062ACMUH5100
PerformanceStandard
Product height in9.650
Product height mm245.110
Product length in6.160
Product length mm156.464
Product width in2.810
Product width mm71.374
Remote controlYes
Seal materialNitrile
SizeSize 06
Special featureNone
Spring ArrangementSpring offset
StageTwo stage
Tank pressure bar100
Tank pressure PSI1450
Valve Mount TypeSubplate mounted
Valve typePilot operated relief valve
Working temperature max C68
Working temperature max F155
Working temperature min C-20
Working temperature min F-4
