What is the Danfoss 02-399648?

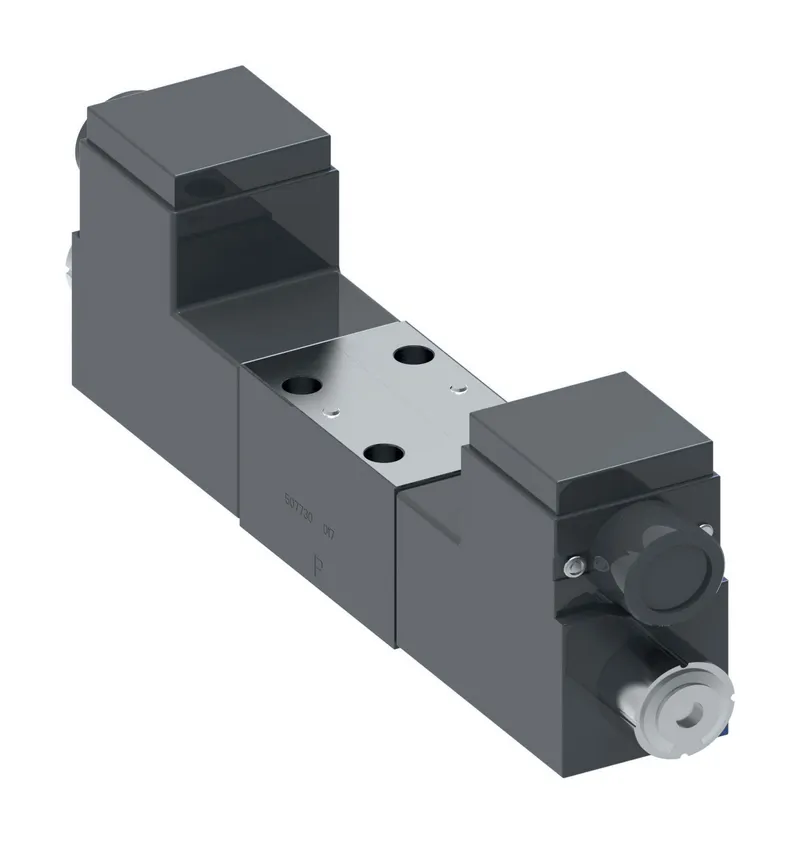

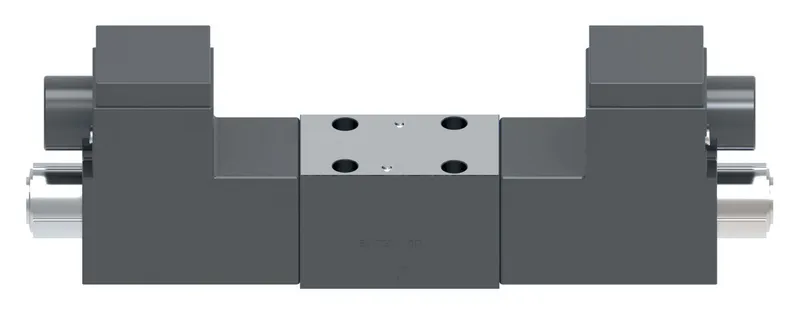

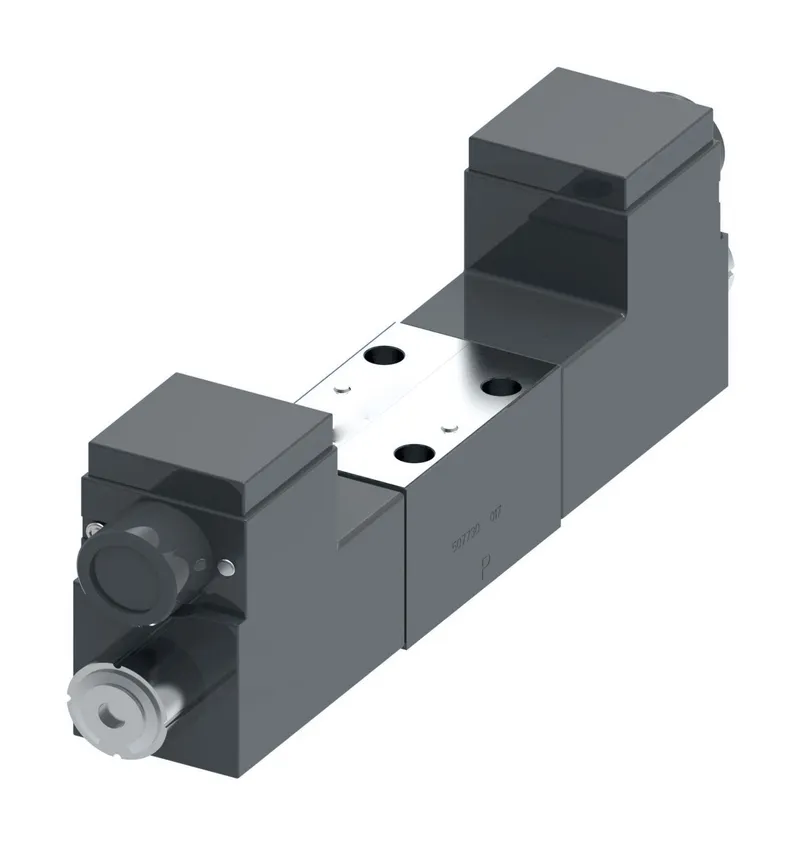

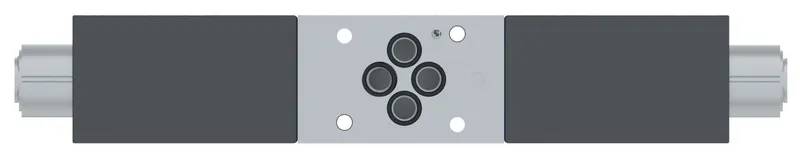

Danfoss DG4V4-018C-VM-X5-ER-4-10, DG4V4018CVMX5ER410, manufacturer part number 02-399648. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Actuation TypeSolenoid operated
BrandVickers by Danfoss
Coil Rating120 VAC 60Hz
Design Series10 Series
Electrical ConnectionAtex ExdIIC2G zone 1&2 CSA/UL
Energ Time20-35 ms
Flow rate upto GPM30.0
Flow rate upto LPM115.0
Fluid Cleanliness20/18/15 micron
Fluid compatibilityPetroleum oils
Indicator LightNo
InterfaceISO4401-05/NFPA D05
Manual overridePlain
Model Code 1DG4V4018CVMX5ER410
PerformanceStandard performance
Power Consumption27.5 watts
Pressure rating BAR315
Pressure rating PSI4500
Product height in3.900
Product length in12.070
Product length mm306.578
Product width in2.735
Product width mm69.469
Seal typeBuna-N
Solenoid Energising IDSol A port A/Sol B port B
Solenoid FeaturesATEX approval
Special featuresNone
Spool Position MonitorNo
Spool TypeSpool 8
Spring ArrangementSpring centred
StageSingle stage
Surge Suppr DamperNo
Tank port rating BAR70.0
Tank port rating PSI1000
Valve Mount TypeSubplate/manifold mounted
Valve typeDirectional control valve
Working temp max C50
Working temp max F122
Working temp min C20
Working temp min F70
