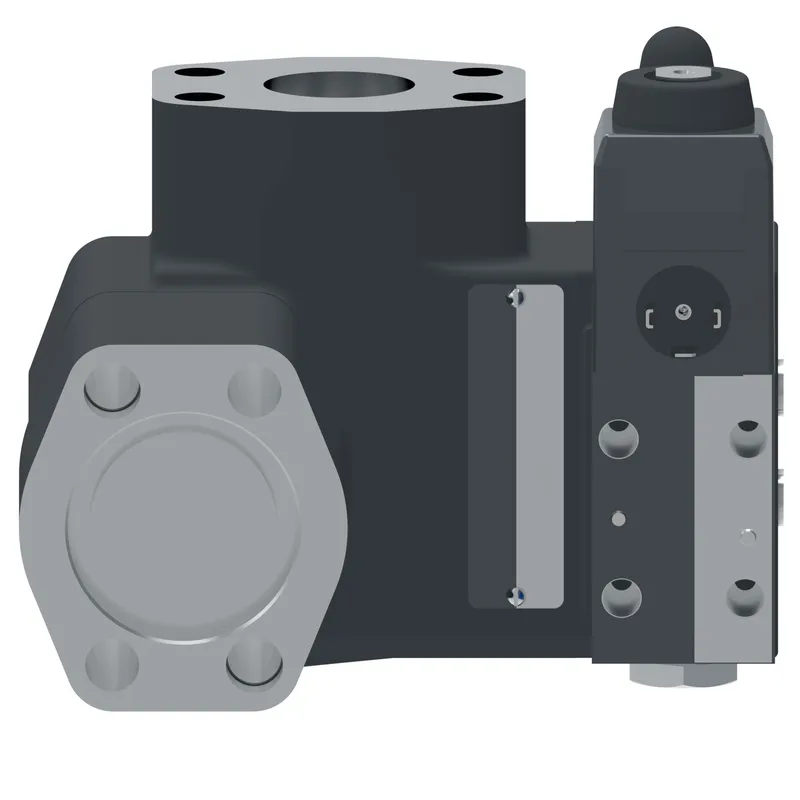

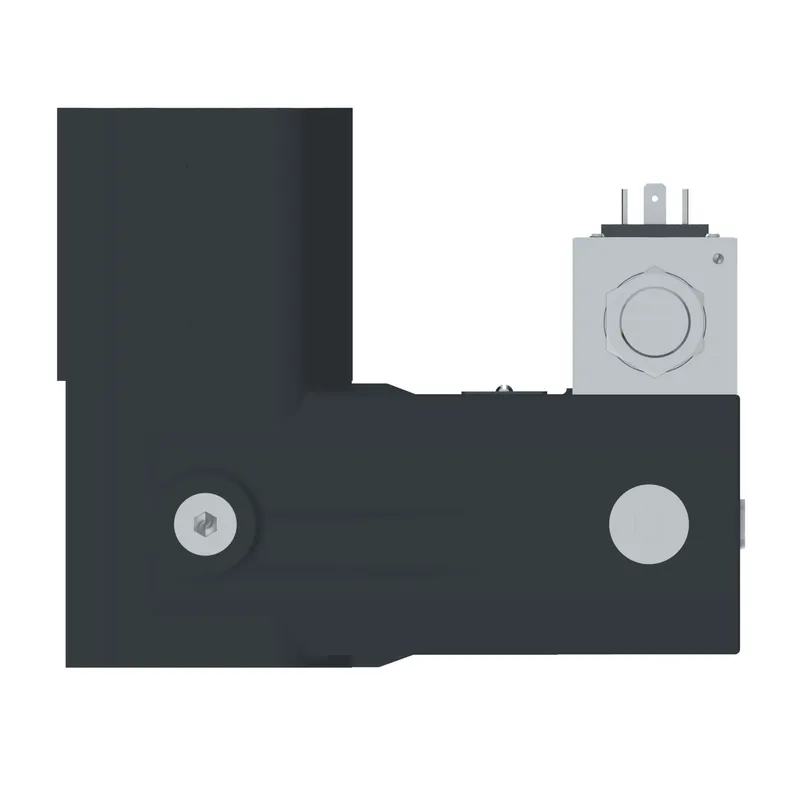

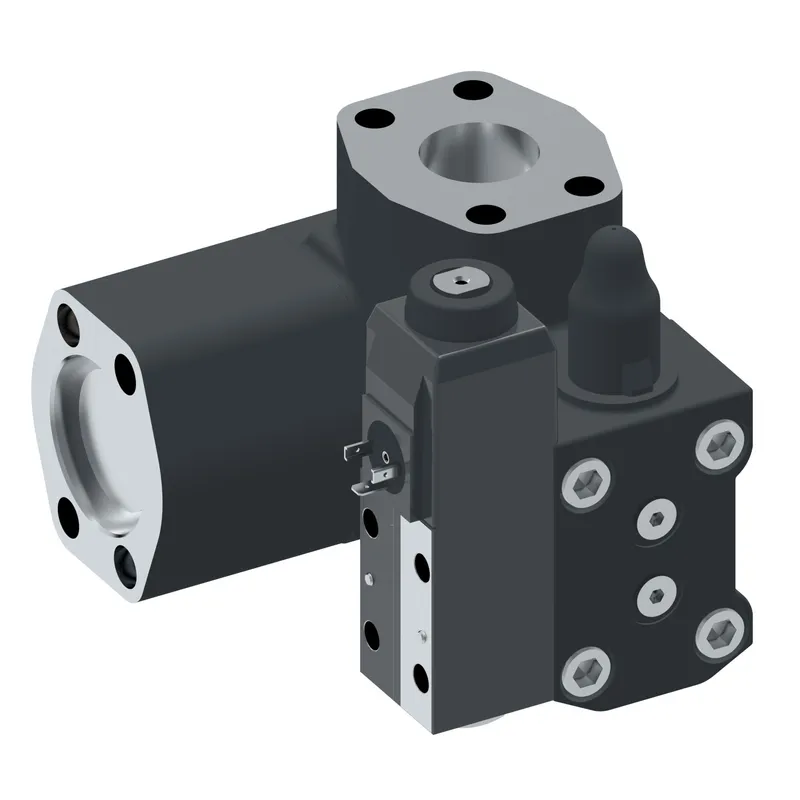

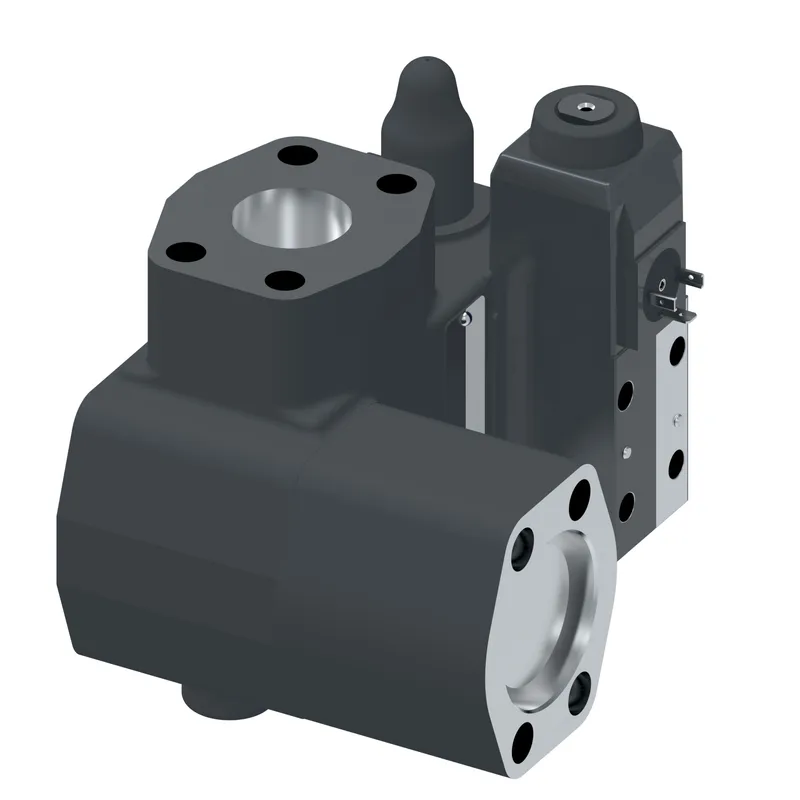

What is the Danfoss 02-399311?

Danfoss UPF2S-CL-08-B-W-3-M-U-BL 6-20, UPF2SCL08BW3MUBL620, manufacturer part number 02-399311. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Actuation TypeSolenoid operated
Adjustment range9-125 bar (130-1800 psi)
Adjustment typeScrew with locknut
BrandVickers by Danfoss
Check valveYes
Cracking pressure bar0.3
Cracking pressure PSI5
Design Series20 Series
Electrical connectionISO 4400 (DIN 43650) connector
Flow rate lpm300.0
Flow rate USGPM80.0
Fluid Cleanliness19/17/14 Micron
Fluid compatibilityPetroleum oils
Hi-vent springNo
Indicator LightNo
Manual overridePlain
Maximum pressure BAR275
Maximum pressure PSI4000
Model Code 1UPF2SCL08BW3MUBL620
PerformanceStandard
Product height in6.760
Product height mm171.704
Product length in5.710
Product length mm145.034
Product width in6.070
Product width mm154.178
Seal materialNitrile
SizeSAE 1"
Special featureNone
StageTwo stage
Tank pressure bar210
Tank pressure PSI3000
Valve Mount TypePump flange mounting
Valve typeUnloading relief valve
Working temperature max C70
Working temperature max F158
Working temperature min C-20
Working temperature min F-4
