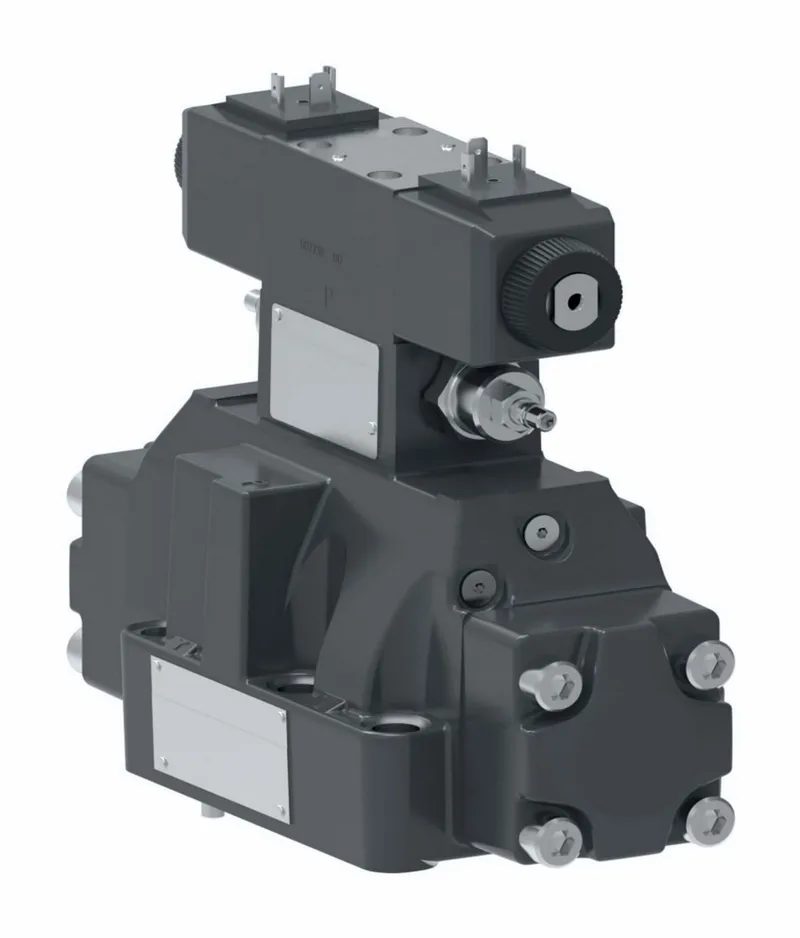

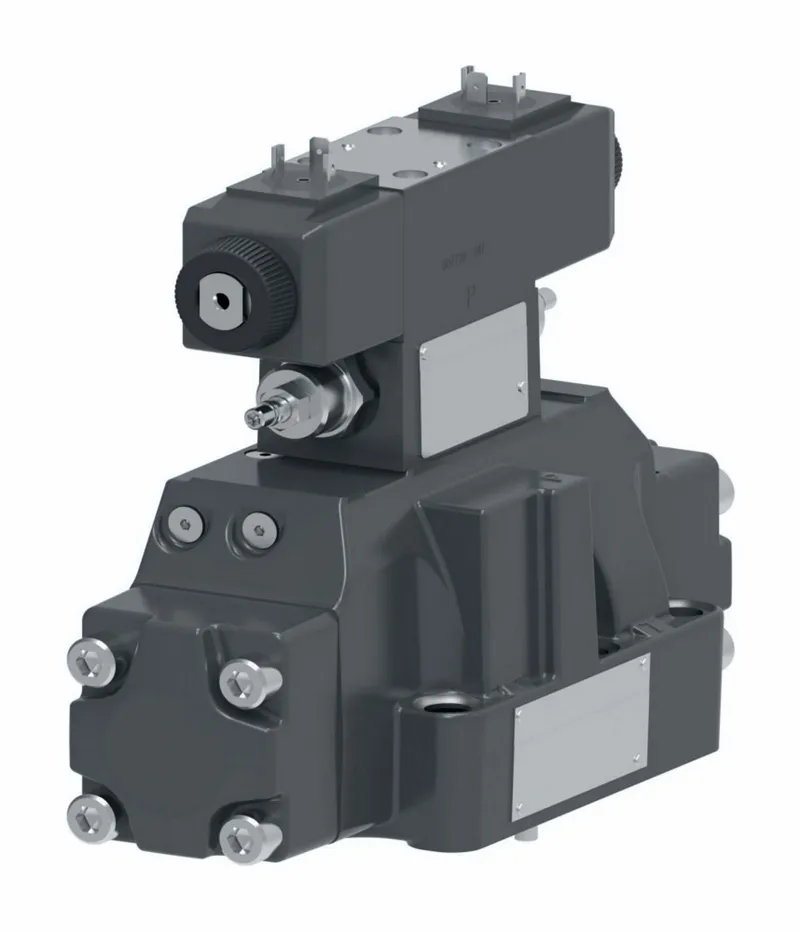

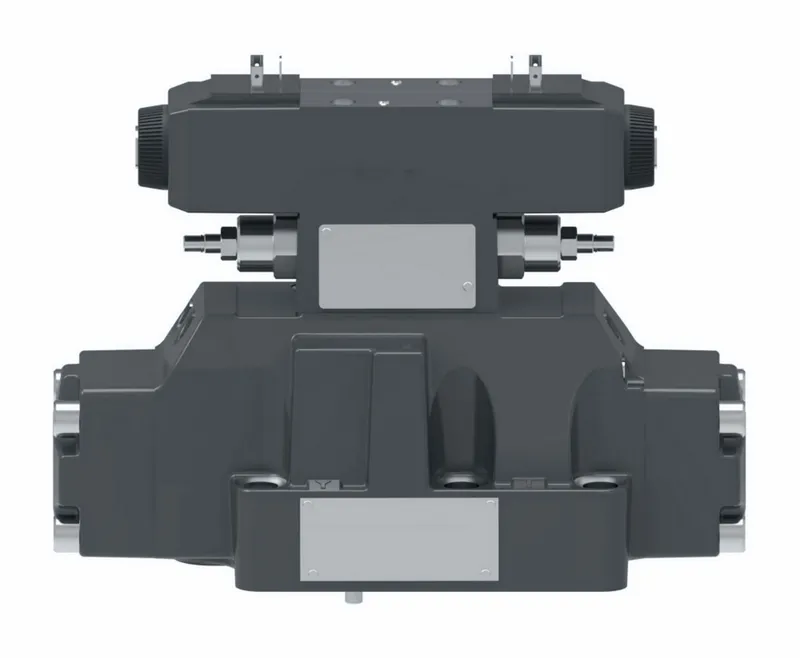

Danfoss 02-399076

DG5V-8-H-6C-2-E-M-U-A-10, DG5V8H6C2EMUA10

MPN
02-399076
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-399076?

Danfoss DG5V-8-H-6C-2-E-M-U-A-10, DG5V8H6C2EMUA10, manufacturer part number 02-399076. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Actuation TypePilot operated
BrandVickers by Danfoss
Coil Rating110 VAC 50Hz
Design Series10 Series
Electrical ConnectionISO 4400 (Din 43650) connector
Ext pilot pressureExternal
Flow rate upto GPM185.0
Flow rate upto LPM700.0
Fluid Cleanliness19/17/14 micron
Fluid compatibilityPetroleum oils
Gauge Port Thread Type0.4375 - 20 UNF, SAE Thread
Indicator LightNo
Int pilot drainExternal

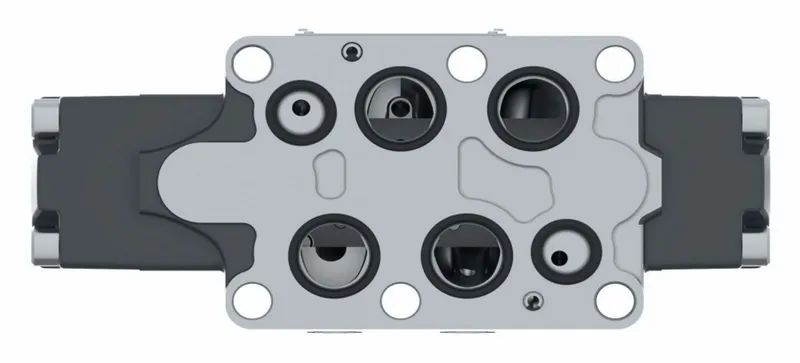

InterfaceISO4401-08
Manual overridePlain
Model Code 1DG5V8H6C2EMUA10
PerformanceHigh performance
Power Consumption49 VA
Pressure rating BAR350
Pressure rating PSI5000
Product height in9.360
Product height mm237.744
Product length in10.450
Product length mm265.430
Product width in4.670
Product width mm118.618
Seal typeBuna-N
Solenoid Energising IDStandard as per ANSI B93 9
Special featuresNone
Spool ControlPilot choke adjustment
Spool Position MonitorNo
Spool TypeSpool 6
Spring ArrangementSpring centred
StageTwo stage
Surge Suppr DamperNo
Tank port rating BAR350.0
Tank port rating PSI5000
Valve Mount TypeSubplate/manifold mounted
Valve typeDirectional control valve
Working temp max C65
Working temp max F150
Working temp min C-20
Working temp min F-4

02-399076: frequently asked questions

When can 02-399076 be shipped?

02-399076 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-399076 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-399076 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-399076, subject to availability and destination.
