Danfoss 02-398751

KBTG4V-3-2B08N-M2-PE7-H7-10-EN427

MPN
02-398751
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-398751?

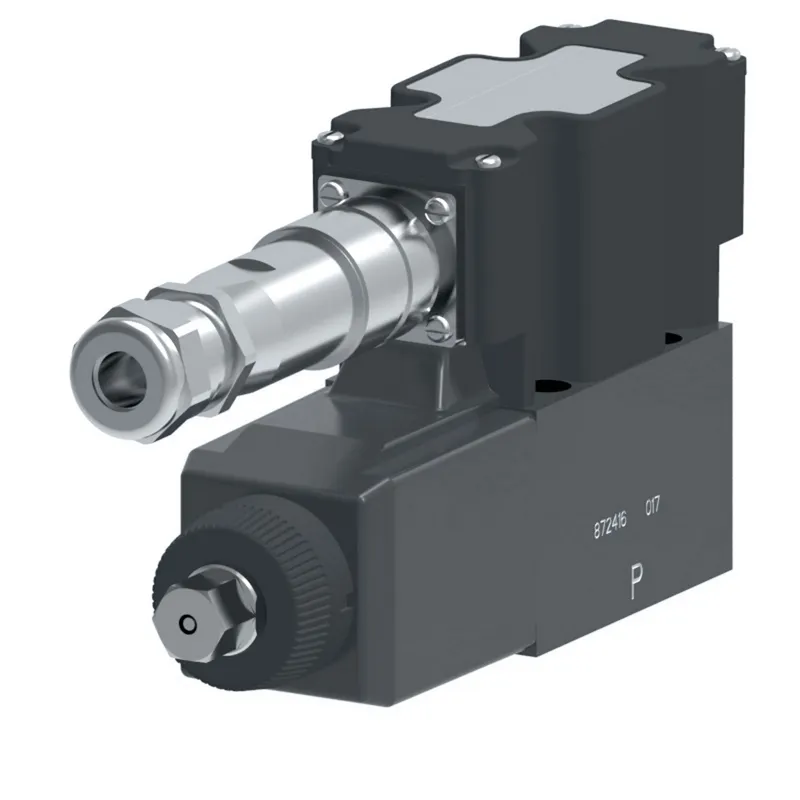

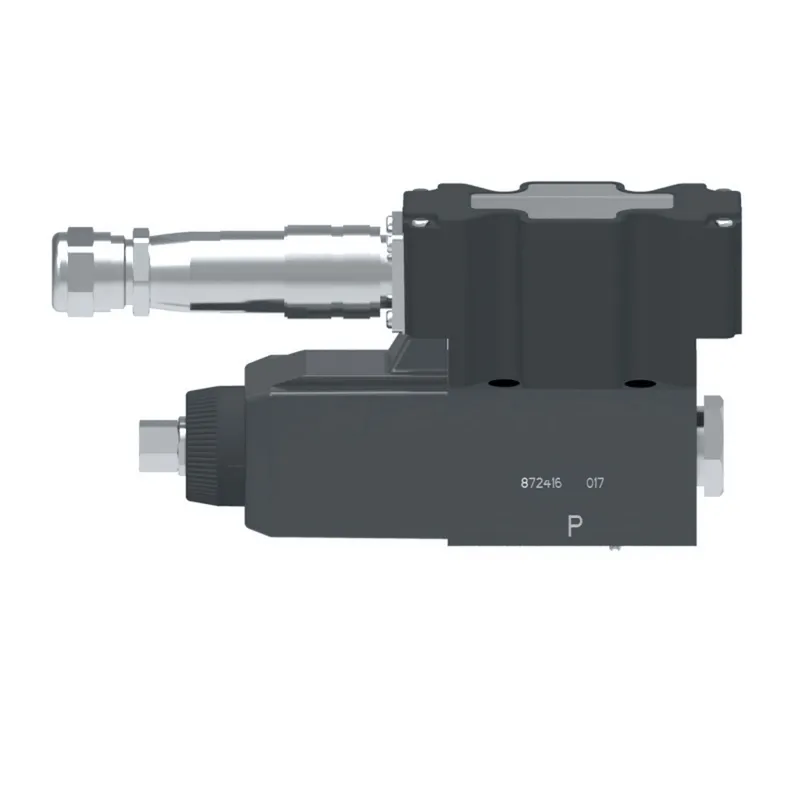

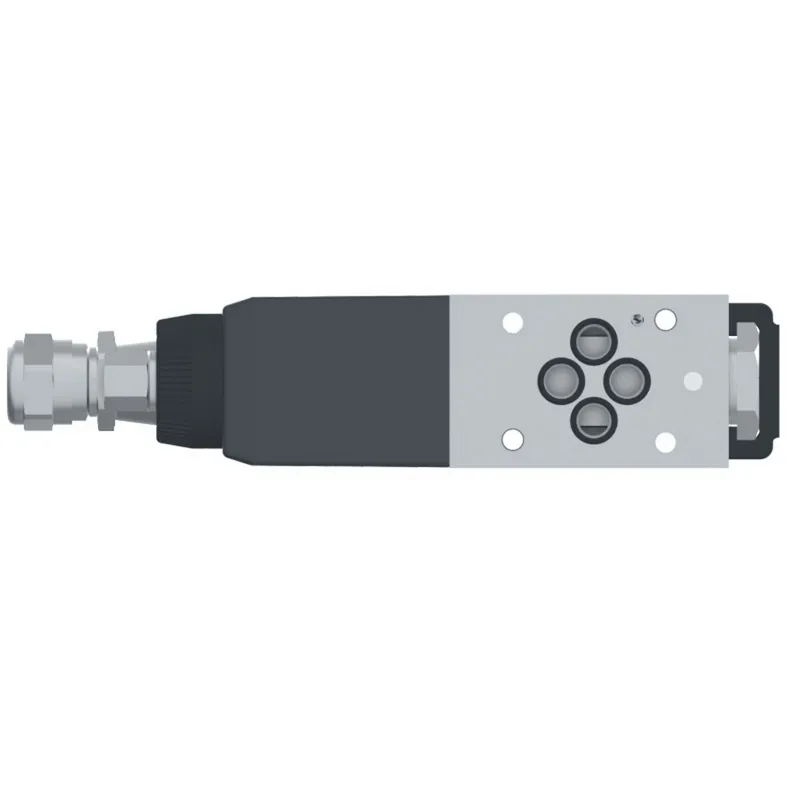

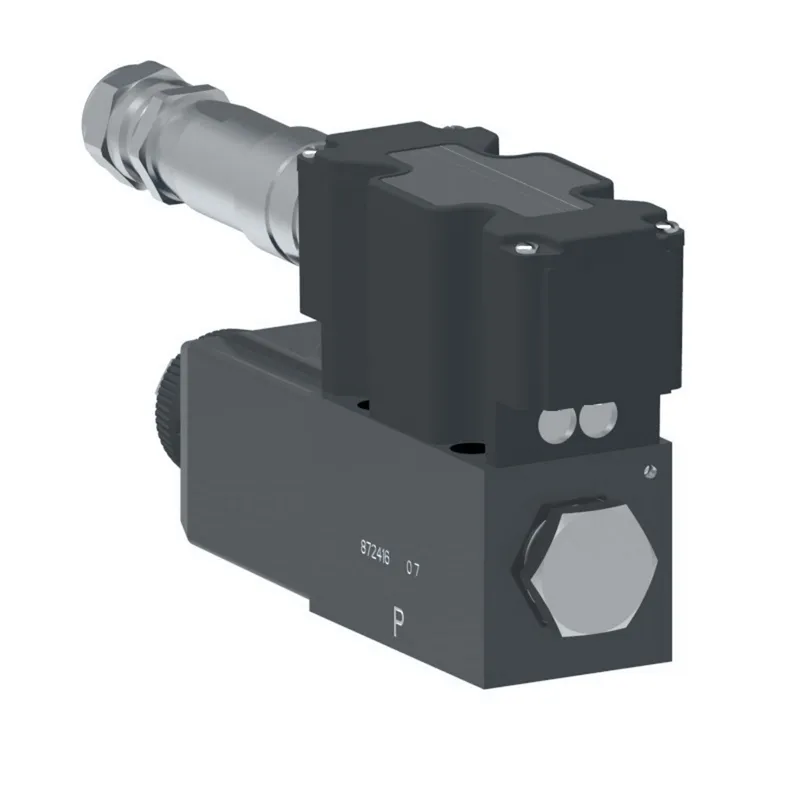

Danfoss KBTG4V-3-2B08N-M2-PE7-H7-10-EN427, manufacturer part number 02-398751. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Actuation TypeSolenoid controlled
B Port flow LPM8.00
B Port flow USGPM2.10
BrandVickers by Danfoss
Build orientationStandard as per ANSI B93 9
Coil voltage24 Volt DC
Command input4-20mA Control signal
Communication protocolNone
Design Series10 Series
Electrical ConnectionElectrical (PE7) 7 pin electrical plug with mating half
Feedback sensorNo
Fluid Cleanliness17/15/12 micron
Fluid compatibilityAntiwear hydraulic oils and non alkyl-based Phosphate Esters
InterfaceISO4401-03/NFPA D03/CETOP 3/NG06
Manual overridePlain
Maximum pressure BAR350
Maximum pressure PSI5000
MeteringMeter in / meter out
On board electronicsYes
PerformanceStandard
Product height in3.950
Product height mm100.330
Product length in8.190
Product length mm208.026
Product width in1.810
Product width mm45.974
ProFX compatibleNo
Reducer moduleNo
Reverse flow checkNo
Seal typeViton
Special featuresValvistor pilot
Spool TypeISO4401-10/NFPA D10/CETOP 10/NG32
StageSingle stage
Symmetric flowYes
Tank port rating BAR210
Tank port rating PSI3000
Valve Mount TypeSubplate
Valve typeProportional throttle
Working temp max C70
Working temp max F158
Working temp min C-20
Working temp min F-4

02-398751: frequently asked questions

When can 02-398751 be shipped?

02-398751 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-398751 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-398751 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-398751, subject to availability and destination.
