Danfoss 02-397870

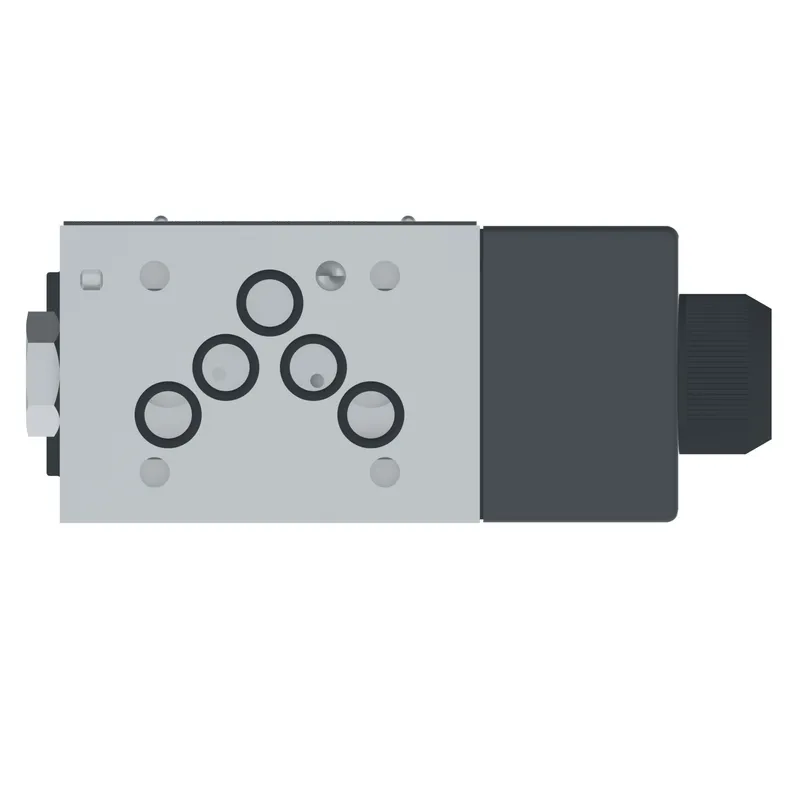

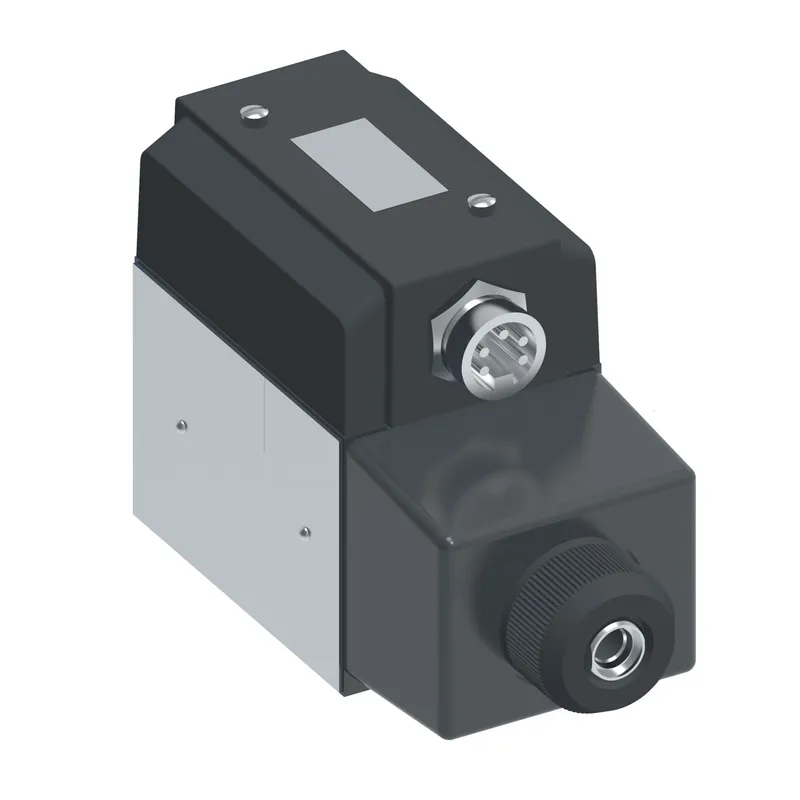

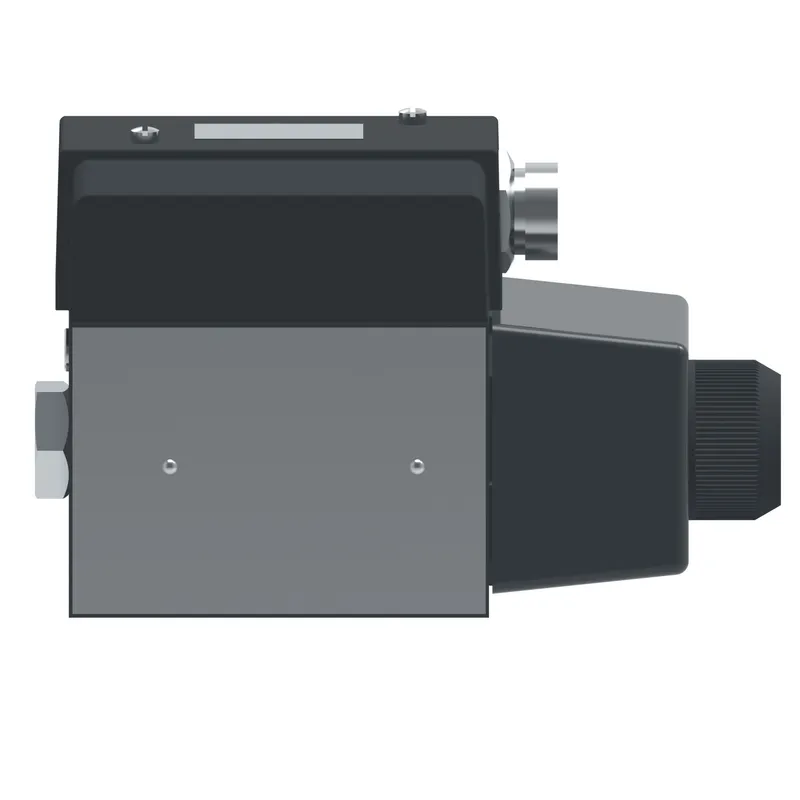

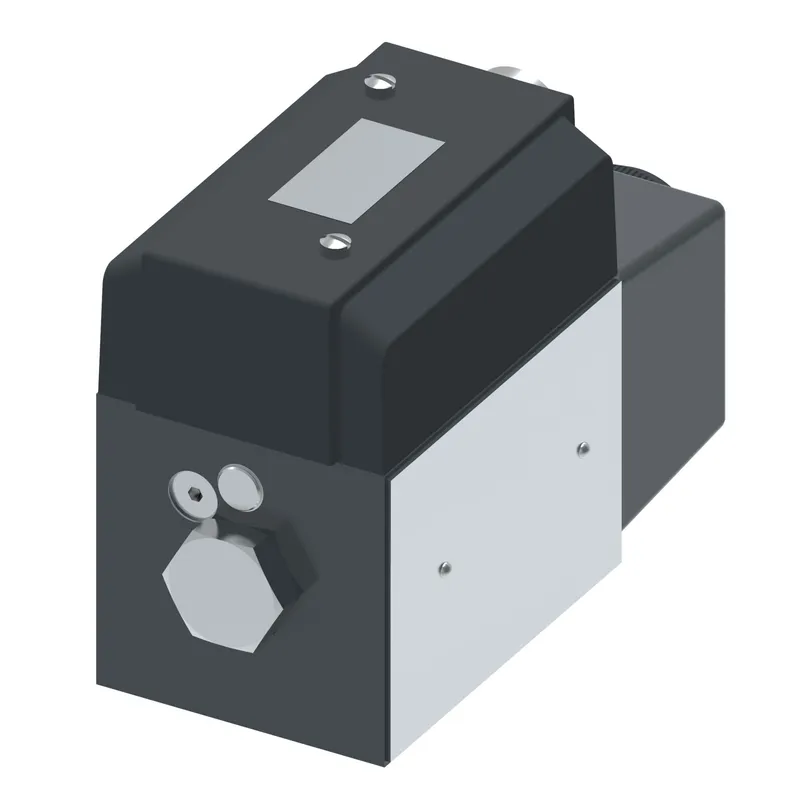

DG4V4-012A-M-S3-PA5W-B-5-10-S633, DG4V4012AMS3PA5WB510S633

MPN
02-397870
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-397870?

Danfoss DG4V4-012A-M-S3-PA5W-B-5-10-S633, DG4V4012AMS3PA5WB510S633, manufacturer part number 02-397870. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Actuation TypeSolenoid operated
BrandVickers by Danfoss
Coil Rating110 VAC 50Hz/120 VAC 60Hz
Design Series10 Series
Electrical ConnectionInstaplug male receptacle only
Energ Time18-25 ms
Flow rate upto GPM30.0
Flow rate upto LPM115.0
Fluid Cleanliness20/18/15 micron
Fluid compatibilityPetroleum oils
Indicator LightNo
InterfaceISO4401-05/NFPA D05
Manual overridePlain
Model Code 1DG4V4012AMS3PA5WB510S633
PerformanceStandard performance
Power Consumption37 watt
Pressure rating BAR315
Pressure rating PSI4500
Product height in4.590
Product length in6.880
Product length mm174.752
Product width in2.840
Product width mm72.136
Seal typeBuna-N
Solenoid Energising IDStandard as per ANSI B93 9
Special featuresVaristor added, special wiring
Spool Position MonitorYes
Spool TypeSpool 2
Spring ArrangementSpring offset end to end
StageSingle stage
Surge Suppr DamperNo
Tank port rating BAR120
Tank port rating PSI1750
Valve Mount TypeSubplate/manifold mounted
Valve typeDirectional control valve
Working temp max C50
Working temp max F122
Working temp min C20
Working temp min F70

02-397870: frequently asked questions

When can 02-397870 be shipped?

02-397870 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-397870 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-397870 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-397870, subject to availability and destination.
