Danfoss 02-395791

UPF2S-C-10-A-W-3S-M-U-B5 -20-EN508, UPF2SC10AW3SMUB520EN508

MPN
02-395791
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

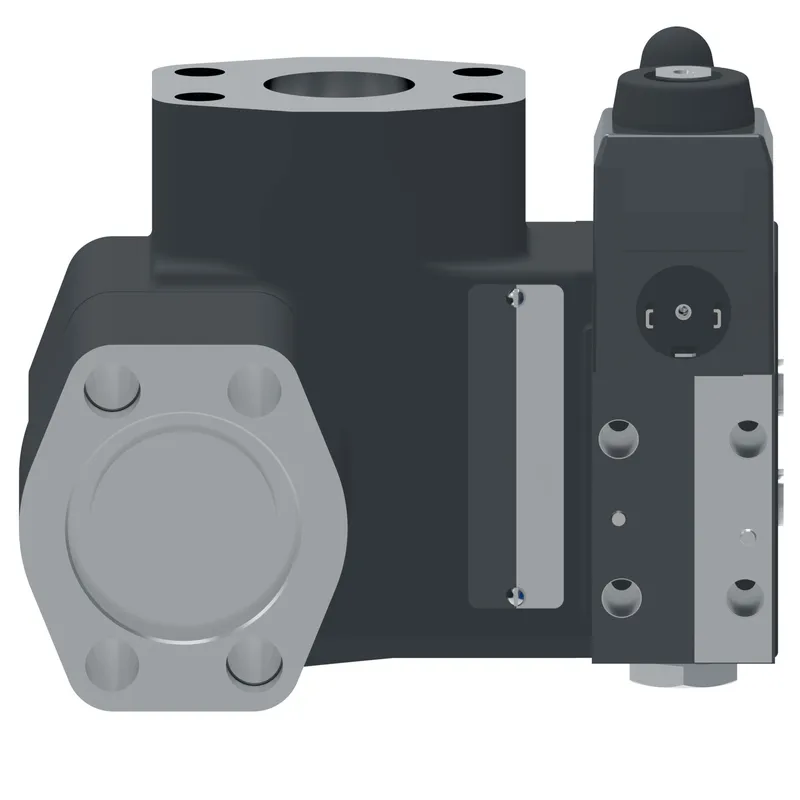

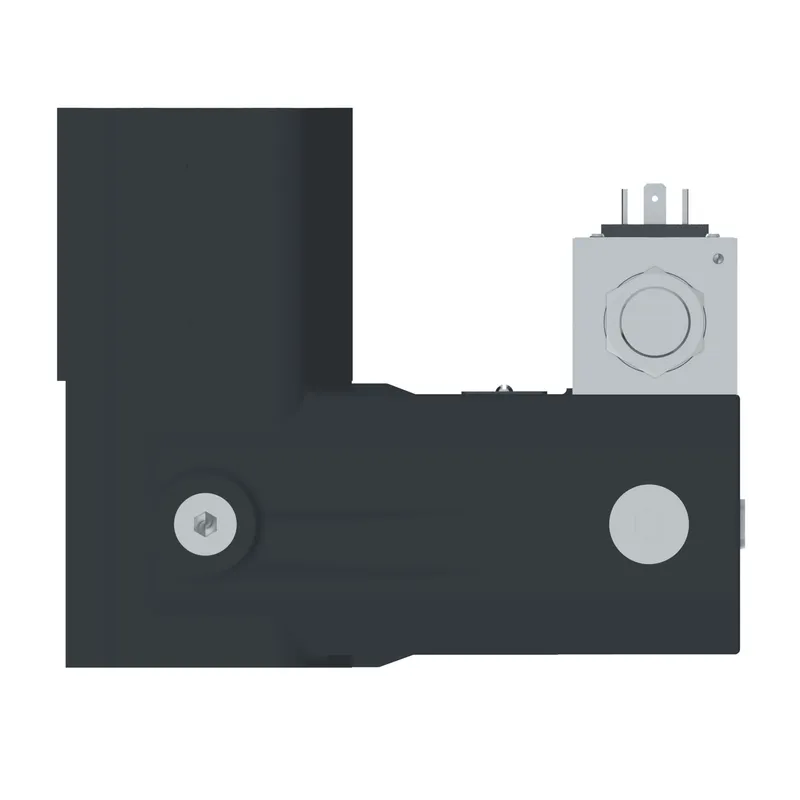

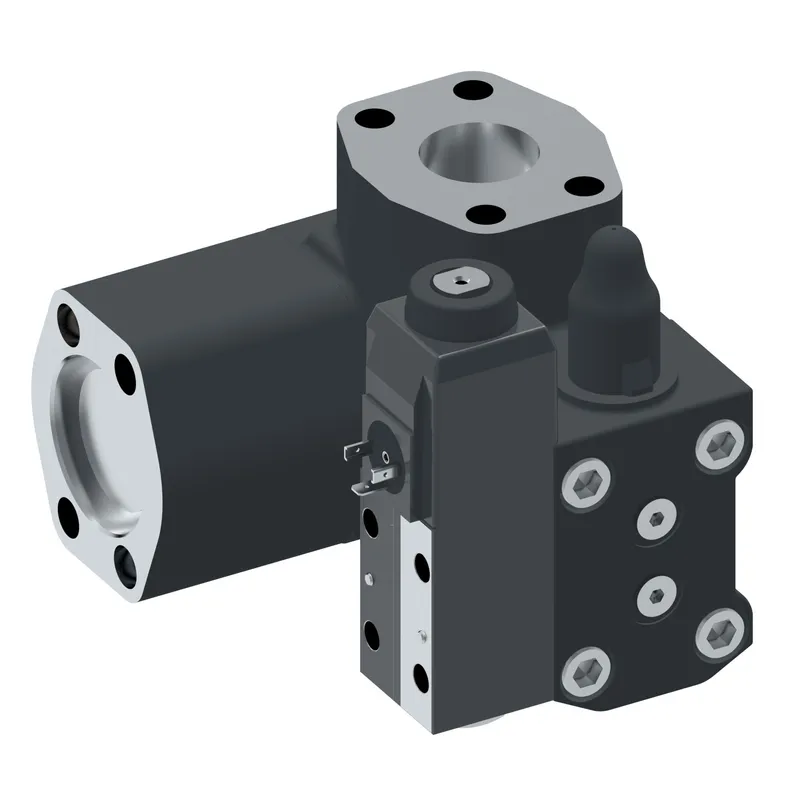

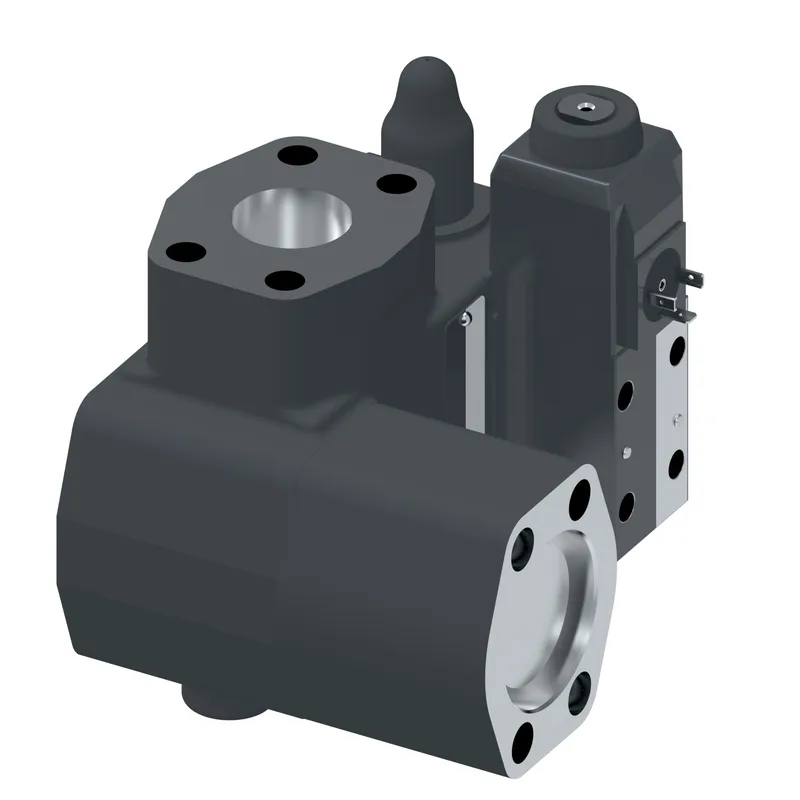

What is the Danfoss 02-395791?

Danfoss UPF2S-C-10-A-W-3S-M-U-B5 -20-EN508, UPF2SC10AW3SMUB520EN508, manufacturer part number 02-395791. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Actuation TypeSolenoid operated
Adjustment range9-70 bar (130-1000 psi)
Adjustment typeScrew with locknut
BrandVickers by Danfoss
Check valveYes
Cracking pressure bar0.3
Cracking pressure PSI5
Design Series20 Series
Electrical connectionISO 4400 (DIN 43650) connector
Flow rate lpm600.0
Flow rate USGPM160.0
Fluid Cleanliness19/17/14 Micron
Fluid compatibilityPetroleum oils
Hi-vent springNo
Indicator LightNo
Manual overridePlain
Maximum pressure BAR275
Maximum pressure PSI4000
Model Code 1UPF2SC10AW3SMUB520EN508
PerformanceStandard
Product height in6.570
Product height mm166.878
Product length in7.360
Product length mm186.944
Product width in6.570
Product width mm166.878
Seal materialNitrile
SizeSAE 1 1/4"
Special featureCV3 check valve block under pilot valve and a 50 psi check valve spring
StageTwo stage
Tank pressure bar210
Tank pressure PSI3000
Valve Mount TypePump flange mounting
Valve typeUnloading relief valve
Working temperature max C70
Working temperature max F158
Working temperature min C-20
Working temperature min F-4

02-395791: frequently asked questions

When can 02-395791 be shipped?

02-395791 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-395791 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-395791 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-395791, subject to availability and destination.
