Danfoss 02-395246

DGMDC-5-Y-PL-30, DGMDC5YPL30

MPN
02-395246
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

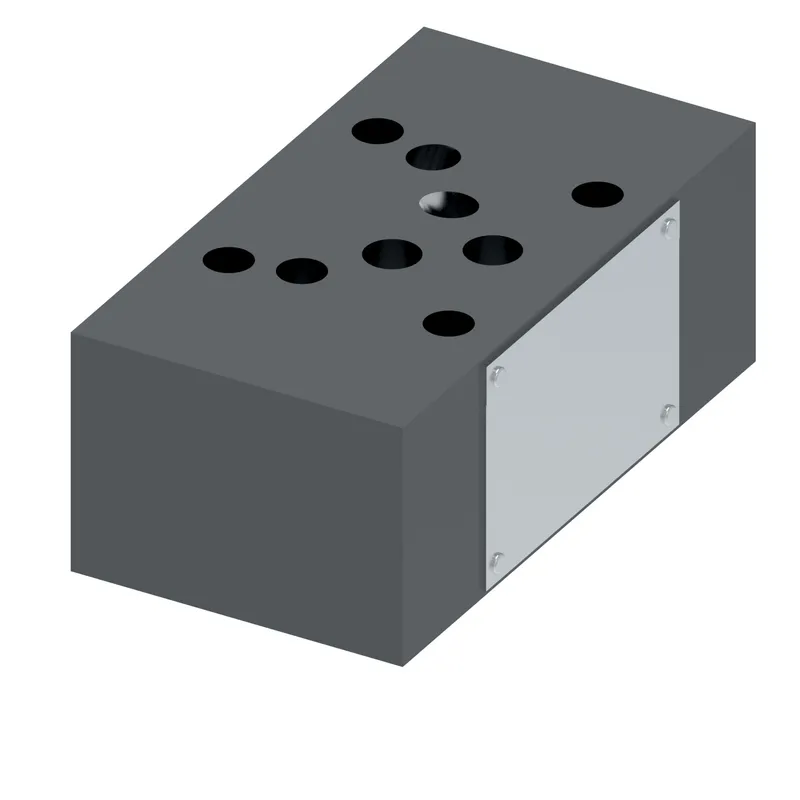

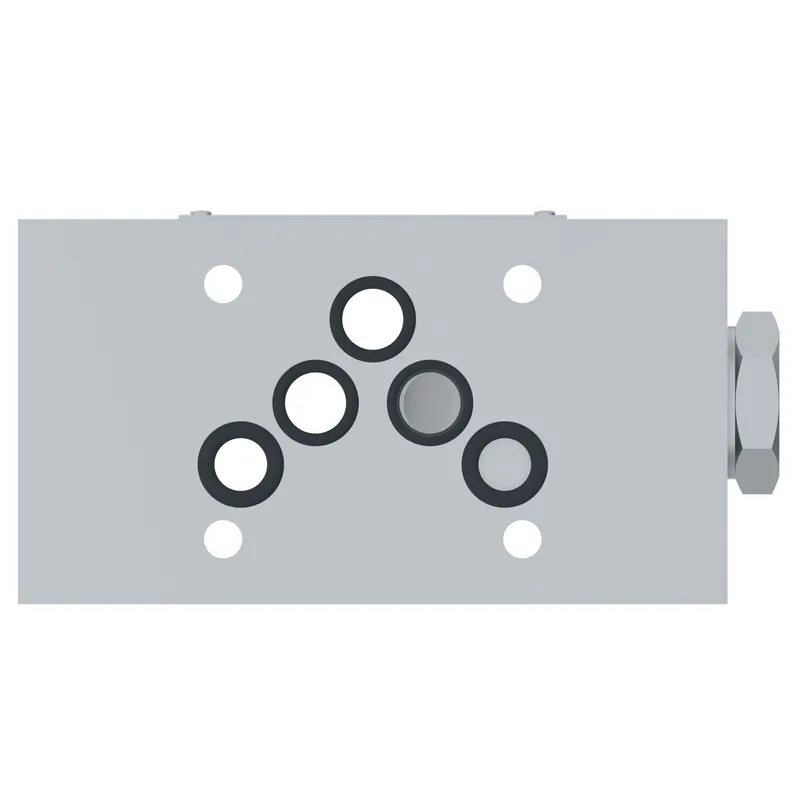

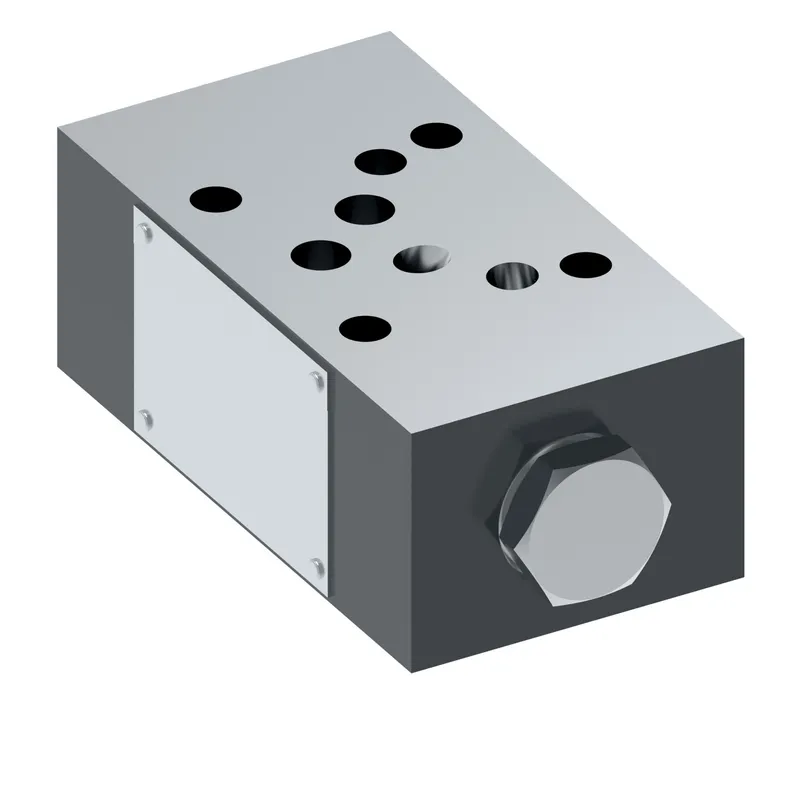

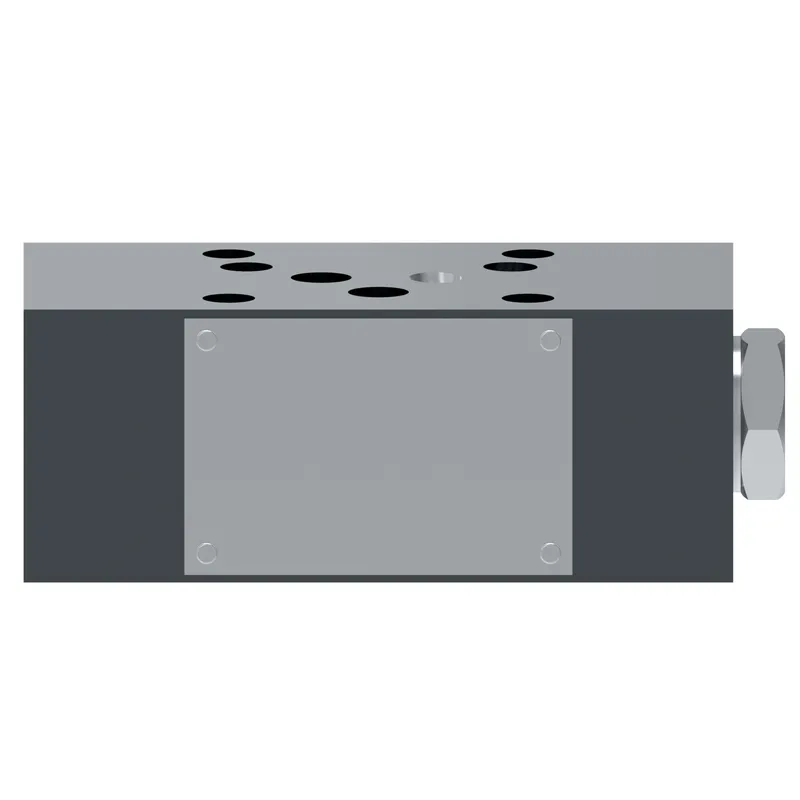

What is the Danfoss 02-395246?

Danfoss DGMDC-5-Y-PL-30, DGMDC5YPL30, manufacturer part number 02-395246. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Actuation TypePressure operated
BrandVickers by Danfoss
Check locationLine P
Cracking pressure bar0.34
Cracking pressure psi5
Design Series30 Series
Direction of flowTowards actuator
Flow rate upto LPM120
Flow rate upto USGPM32.0
Fluid Cleanliness19/17/14 micron
Fluid compatibilityPetroleum oils
InterfaceISO4401-05
Maximum pressure upto bar315
Maximum pressure upto psi4500
Model Code 1DGMDC5YPL30
PerformanceStandard
Port operated uponPressure port
Product height in1.970
Product height mm50.038
Product length in5.430
Product length mm137.922
Product width in2.820
Product width mm71.628
Seal typeViton
Special featuresNone
Valve Mount TypeSubplate/manifold mounted
Valve typeDirect check valve
Working temp max C50
Working temp max F120
Working temp min C20
Working temp min F70

02-395246: frequently asked questions

When can 02-395246 be shipped?

02-395246 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-395246 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-395246 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-395246, subject to availability and destination.
