Danfoss 02-394910

F3-DG5S4-02-6C-T-M-X2-H4 -20, F3DG5S4026CTMX2H420

MPN
02-394910
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-394910?

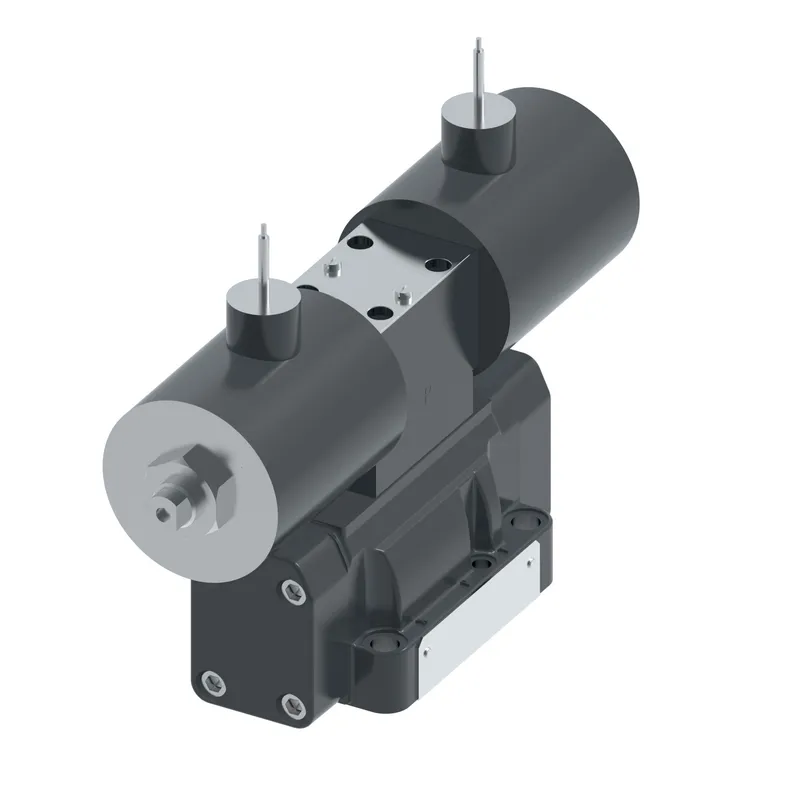

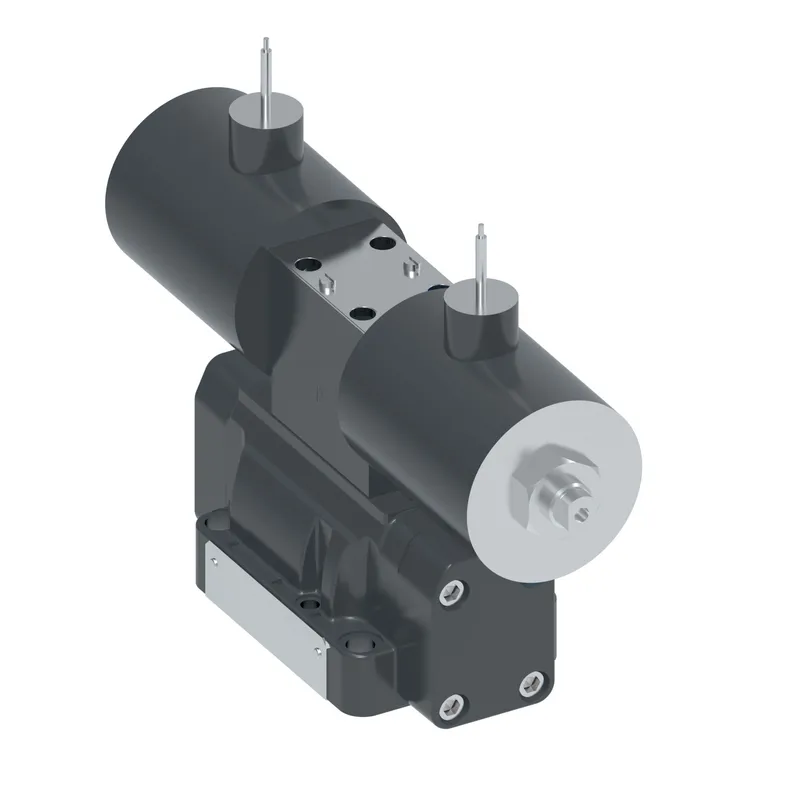

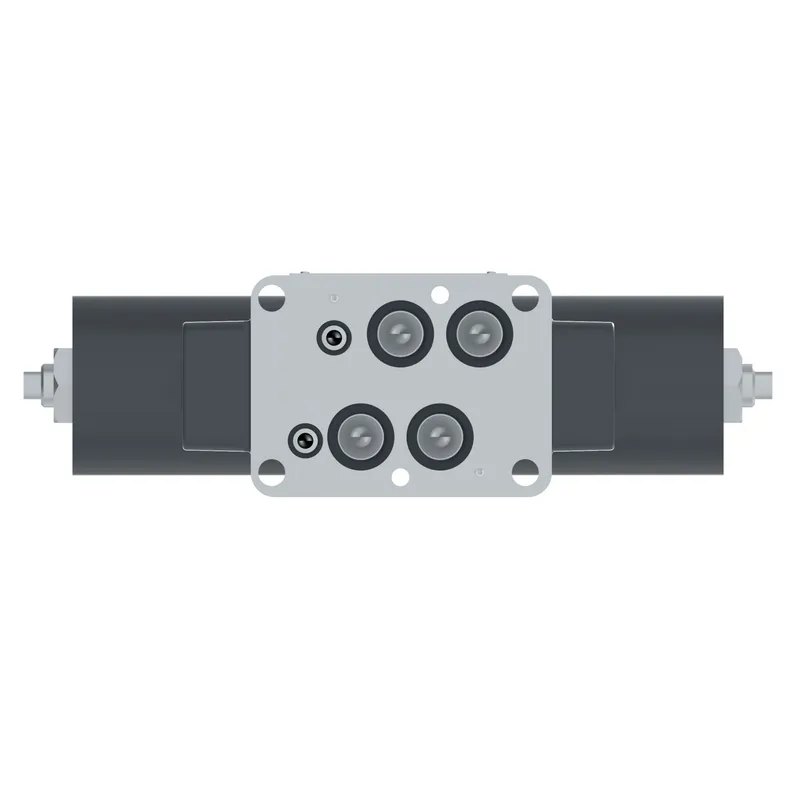

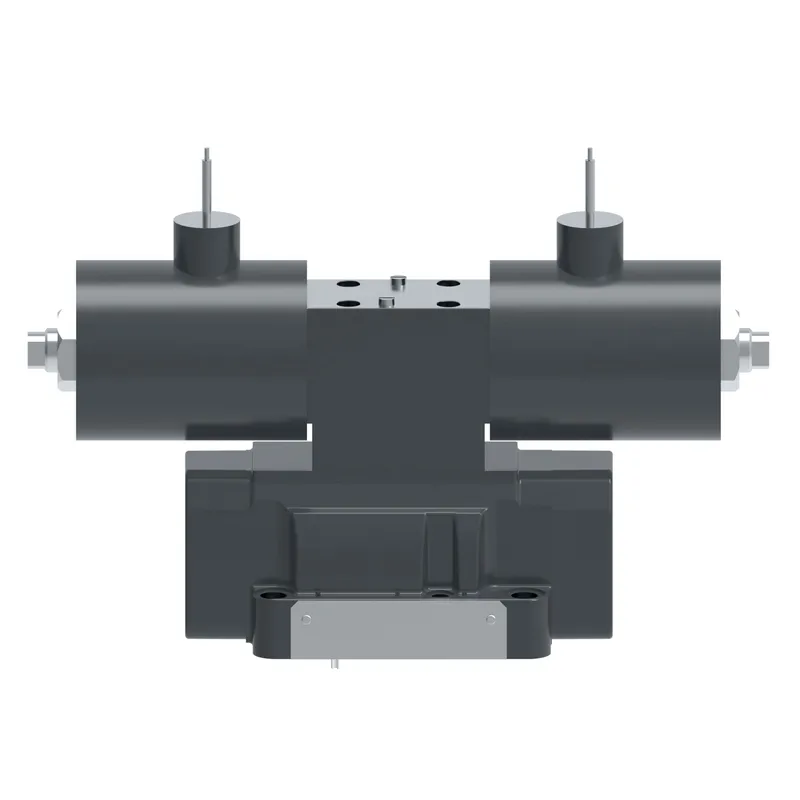

Danfoss F3-DG5S4-02-6C-T-M-X2-H4 -20, F3DG5S4026CTMX2H420, manufacturer part number 02-394910. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Actuation TypePilot operated
BrandVickers by Danfoss
Coil Rating24 VDC
Design Series20 Series
Electrical ConnectionHazardous solenoids UL/CSA
Ext pilot pressureInternal
Flow rate upto GPM30.0
Flow rate upto LPM115.0
Fluid Cleanliness20/18/15 micron
Fluid compatibilityPetroleum oils
Indicator LightNo
Int pilot drainInternal
InterfaceISO4401-05
Manual overridePlain
Model Code 1F3DG5S4026CTMX2H420
PerformanceStandard performance
Pressure rating BAR210
Pressure rating PSI3000
Product height in6.320
Product height mm160.528
Product length in8.660
Product length mm219.964
Product width in2.630
Product width mm66.802
Seal typeWATER GLYCOL
Solenoid Energising IDStandard as per ANSI B93 9
Solenoid FeaturesHazardous location solenoids
Special featuresNone
Spool Position MonitorNo
Spool TypeSpool 6
Spring ArrangementSpring centred
StageTwo stage
Surge Suppr DamperNo
Tank port rating BAR70.0
Tank port rating PSI1000
Valve Mount TypeSubplate/manifold mounted
Valve typeDirectional control valve
Working temp max C65
Working temp max F150
Working temp min C-18
Working temp min F0

02-394910: frequently asked questions

When can 02-394910 be shipped?

02-394910 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-394910 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-394910 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-394910, subject to availability and destination.
