Danfoss 02-394693

DG4V-3R-2N-M-FPM4WL-D7-H M7-60-EN632, DG4V3R2NMFPM4WLD7HM760EN632

MPN: 02-394693
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

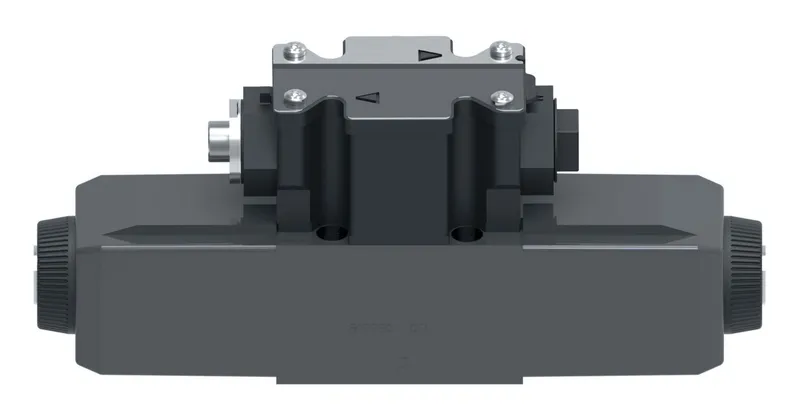

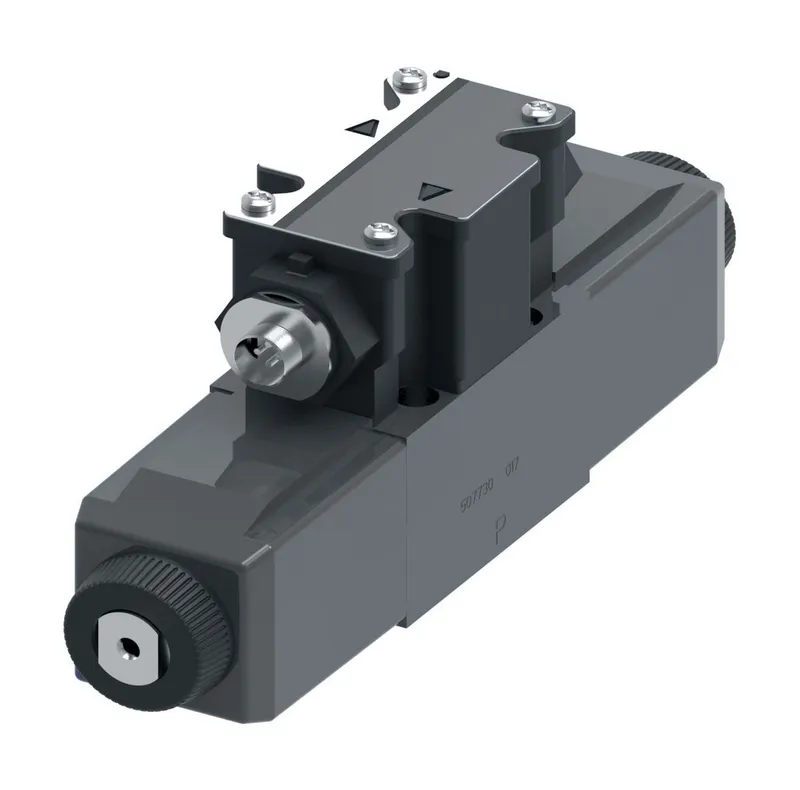

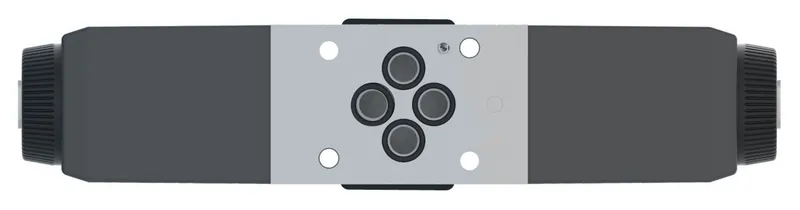

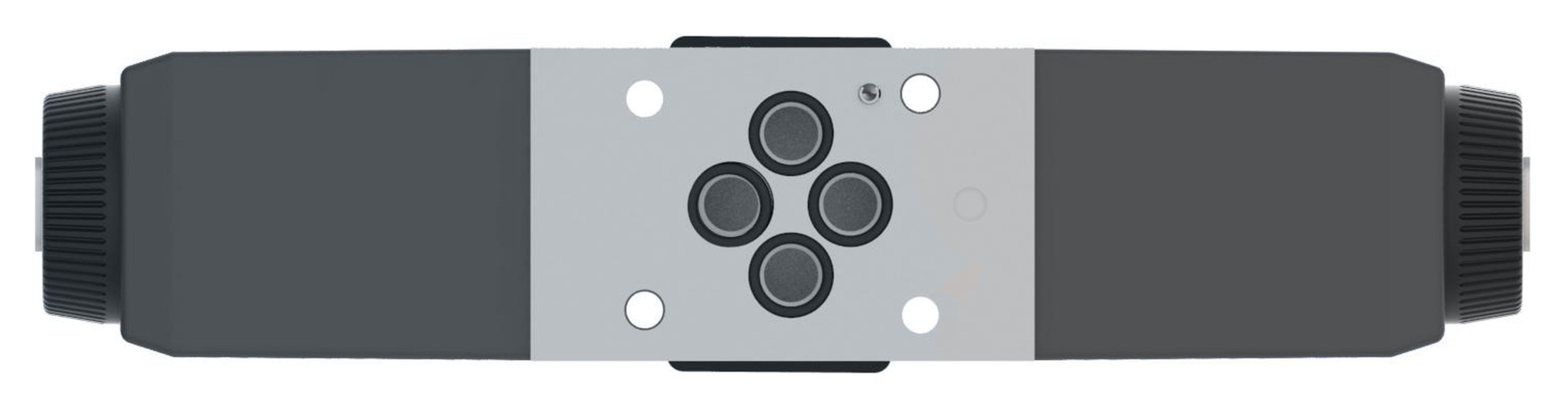

What is the Danfoss 02-394693?

Danfoss DG4V-3R-2N-M-FPM4WL-D7-H M7-60-EN632, DG4V3R2NMFPM4WLD7HM760EN632, manufacturer part number 02-394693. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Solenoid operated
Brand	Vickers by Danfoss
Coil Rating	24 VDC
Design Series	60 Series
Electrical Connection	4-Pin Brad Harrison connector
Energ Time	60-40 ms
Flow rate upto GPM	10.5
Flow rate upto LPM	40.0
Fluid Cleanliness	19/17/14 micron
Fluid compatibility	Petroleum oils
Indicator Light	Yes
Interface	ISO4401-03
Manual override	Plain
Model Code 1	DG4V3R2NMFPM4WLD7HM760EN632
Performance	Standard performance
Power Consumption	8 watt
Pressure rating BAR	350
Pressure rating PSI	5000
Product height in	3.670
Product length in	8.660
Product length mm	219.964
Product width in	1.880
Product width mm	47.752
Seal type	WATER GLYCOL
Solenoid Energising ID	Standard as per ANSI B93 9
Special features	M12, male connector having no ground
Spool Position Monitor	No
Spool Type	Spool 2
Spring Arrangement	No spring detented
Stage	Single stage
Surge Suppr Damper	Yes
Tank port rating BAR	210.0
Tank port rating PSI	3000
Valve Mount Type	Subplate/manifold mounted
Valve type	Directional control valve
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4

02-394693: frequently asked questions

When can 02-394693 be shipped?

02-394693 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-394693 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-394693 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-394693, subject to availability and destination.
