Danfoss 02-394267

Industrial valve

MPN
02-394267
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-394267?

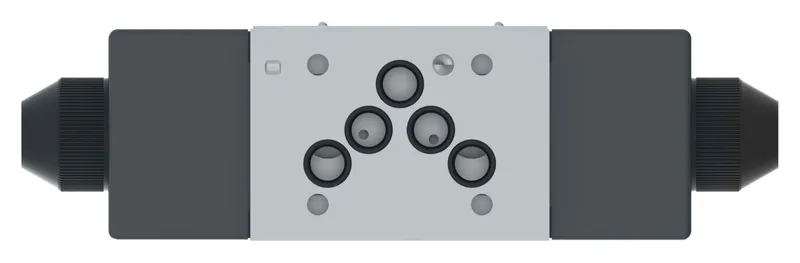

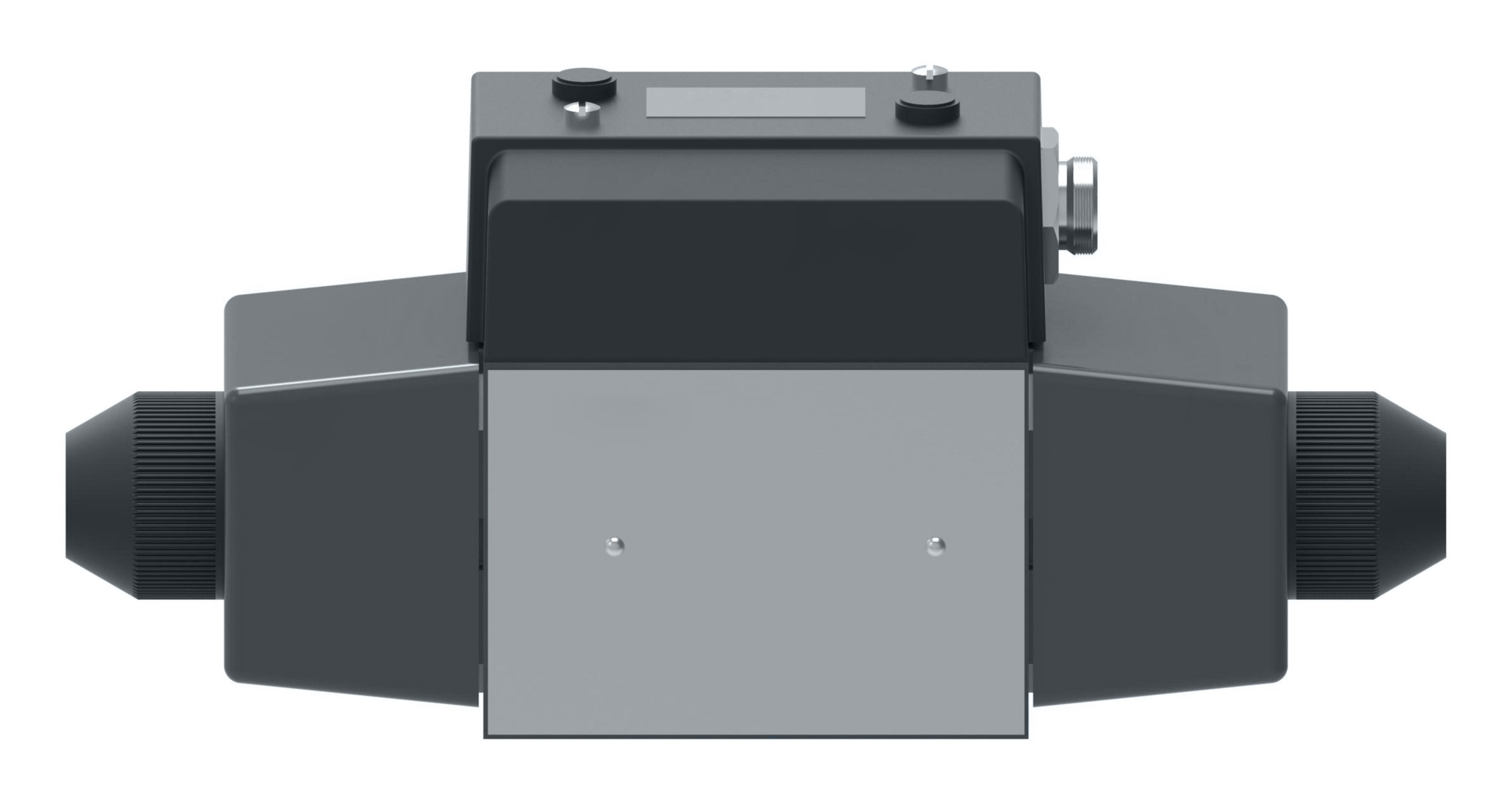

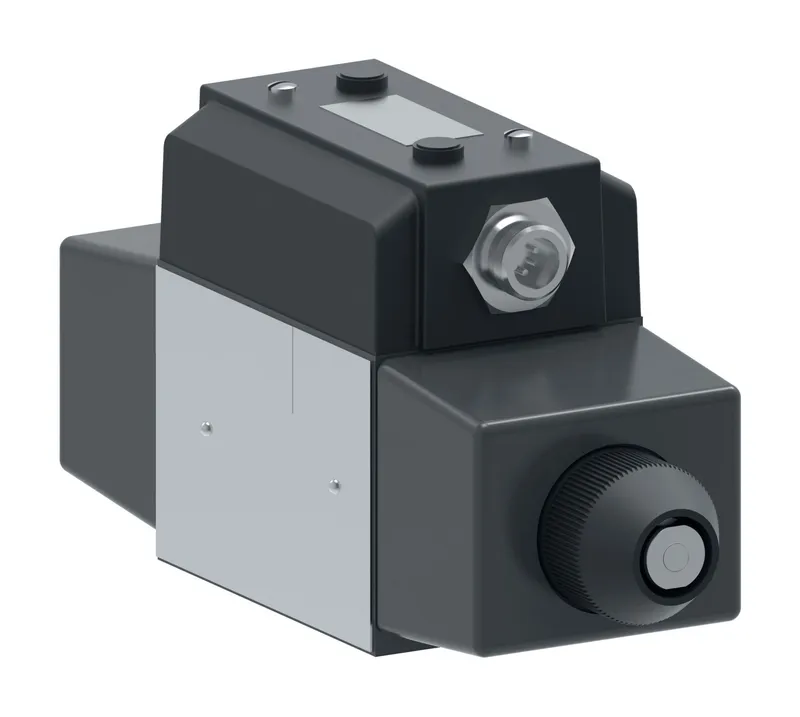

Danfoss PM4DG4S4LW-016C-H-60-S60 7, PM4DG4S4LW016CH60S607, manufacturer part number 02-394267. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Actuation TypeSolenoid operated
BrandVickers by Danfoss
Coil Rating24 VDC
Design Series60 Series
Electrical Connection4-pin connector
Energ Time50-80 ms
Flow rate upto GPM25.0
Flow rate upto LPM95.0
Fluid Cleanliness20/18/15 micron
Fluid compatibilityPetroleum oils
Indicator LightYes
InterfaceISO4401-05
Manual overrideNone
Model Code 1PM4DG4S4LW016CH60S607
PerformanceStandard performance
Pressure rating BAR250
Pressure rating PSI3600
Product height in3.850
Product length in6.840
Product length mm173.736
Product width in2.810
Product width mm71.374
Seal typeBuna-N
Solenoid Energising IDStandard as per ANSI B93 9
Special featuresWired to automotive standard wiring scheme, terminal strip and push in lights
Spool Position MonitorNo
Spool TypeSpool 6
Spring ArrangementSpring centred, three position
StageSingle stage
Surge Suppr DamperNo
Tank port rating BAR70.0
Tank port rating PSI1000
Valve Mount TypeSubplate/manifold mounted
Valve typeDirectional control valve
Working temp max C50
Working temp max F122
Working temp min C20
Working temp min F70
