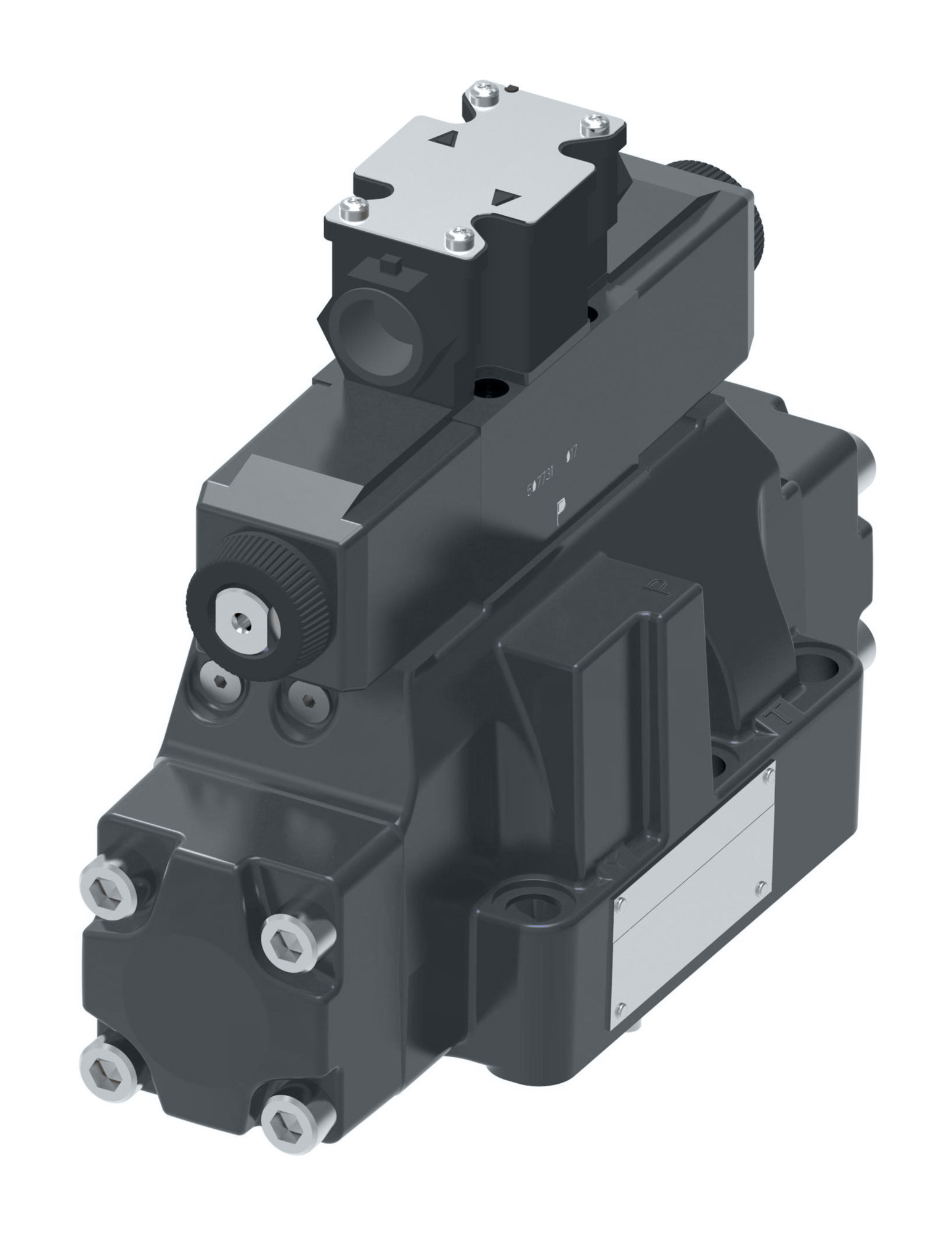

Danfoss 02-393544

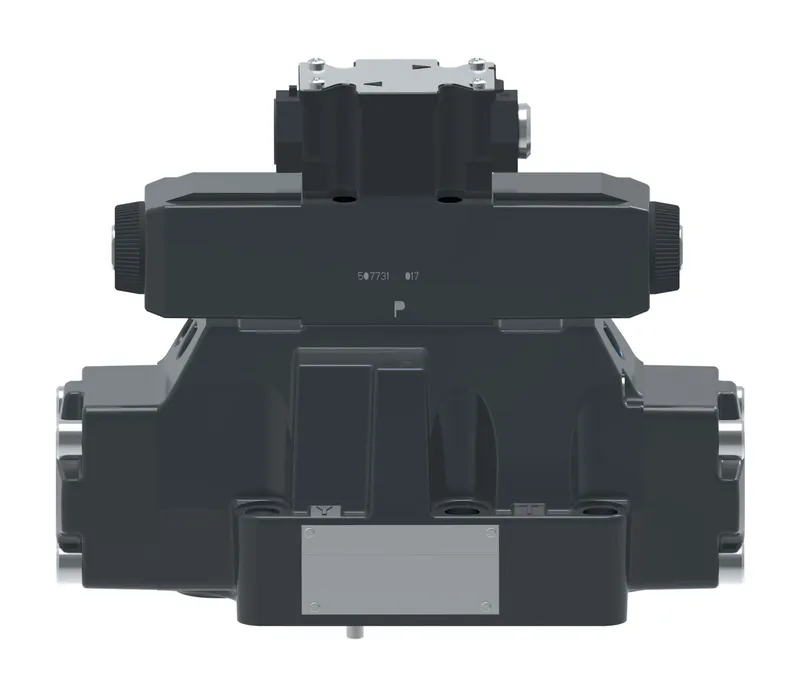

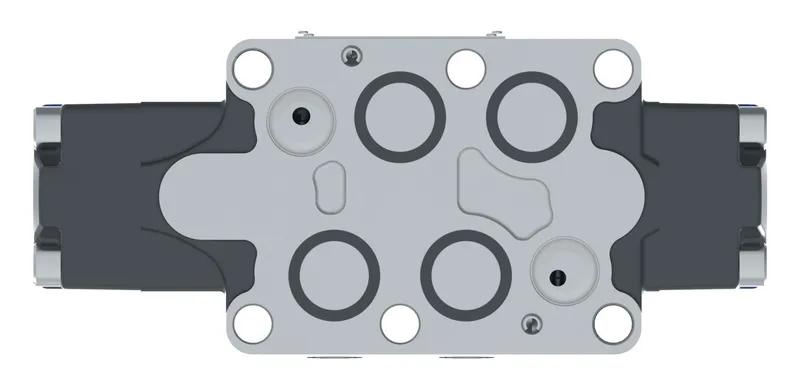

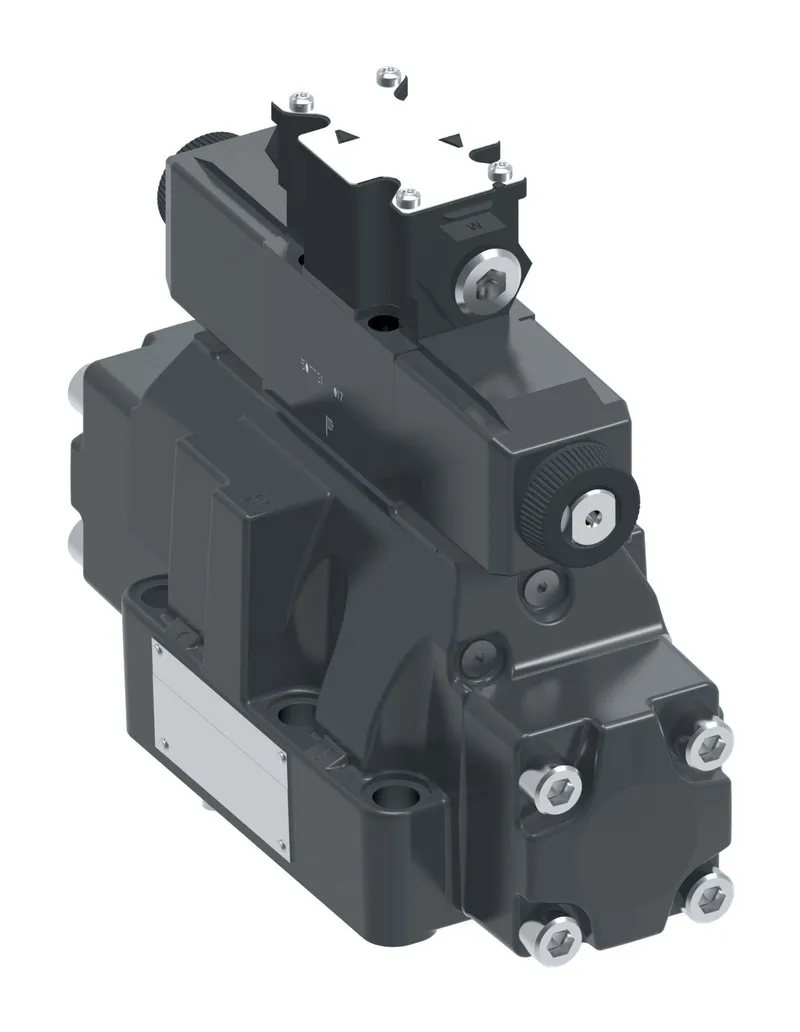

DG5V-8-H-6C-M-FTWL-B-10, DG5V8H6CMFTWLB10

MPN
02-393544
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-393544?

Danfoss DG5V-8-H-6C-M-FTWL-B-10, DG5V8H6CMFTWLB10, manufacturer part number 02-393544. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Actuation TypePilot operated
BrandVickers by Danfoss
Coil Rating110 VAC 50Hz/120 VAC 60Hz
Design Series10 Series
Electrical ConnectionFlying lead wired terminalblock & 1/2" NPT thread wiring housing
Ext pilot pressureInternal
Flow rate upto GPM185.0
Flow rate upto LPM700.0
Fluid Cleanliness19/17/14 micron
Fluid compatibilityPetroleum oils
Gauge Port Thread Type0.4375 - 20 UNF, SAE Thread
Indicator LightYes
Int pilot drainExternal
InterfaceISO4401-08
Manual overridePlain
Model Code 1DG5V8H6CMFTWLB10
PerformanceHigh performance
Power Consumption49VA 50HZ - 48VA60HZ
Pressure rating BAR350
Pressure rating PSI5000
Product height in7.940
Product height mm201.676
Product length in10.450
Product length mm265.430
Product width in4.670
Product width mm118.618
Seal typeBuna-N
Solenoid Energising IDStandard as per ANSI B93 9
Special featuresNone
Spool Position MonitorNo
Spool TypeSpool 6
Spring ArrangementSpring centred
StageTwo stage
Surge Suppr DamperNo
Tank port rating BAR350.0
Tank port rating PSI5000
Valve Mount TypeSubplate/manifold mounted
Valve typeDirectional control valve
Working temp max C70
Working temp max F158
Working temp min C-20
Working temp min F-4

02-393544: frequently asked questions

When can 02-393544 be shipped?

02-393544 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-393544 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-393544 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-393544, subject to availability and destination.
