Danfoss 02-393374

Industrial valve

MPN
02-393374
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-393374?

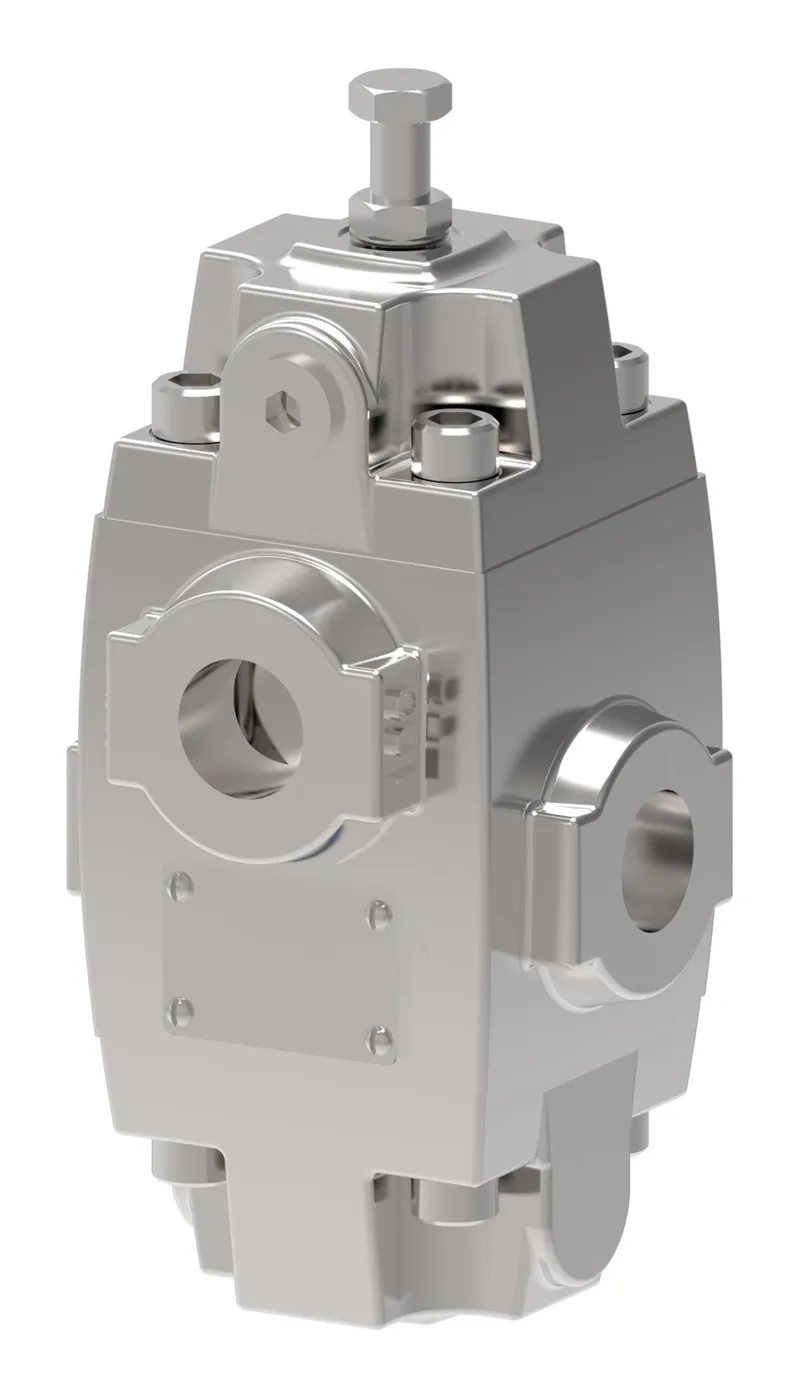

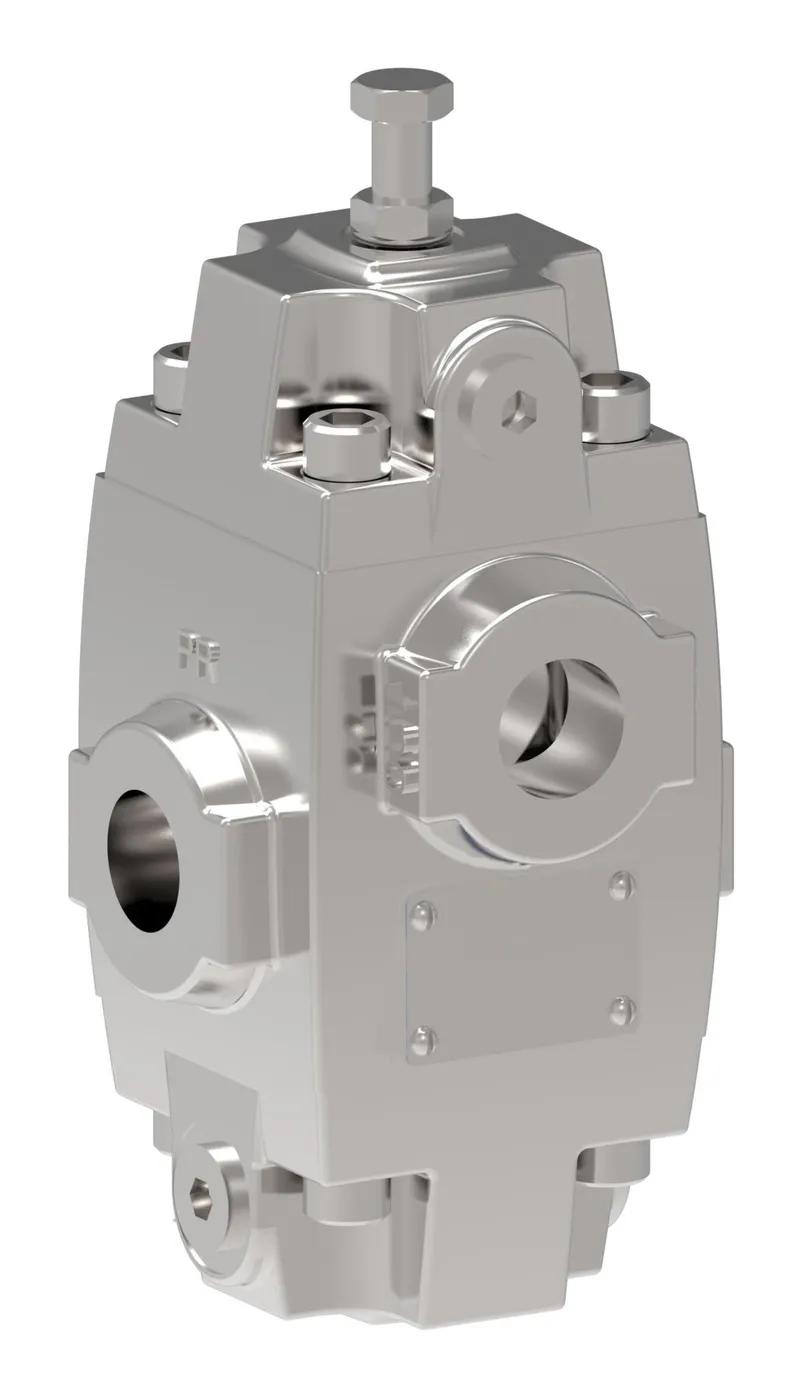

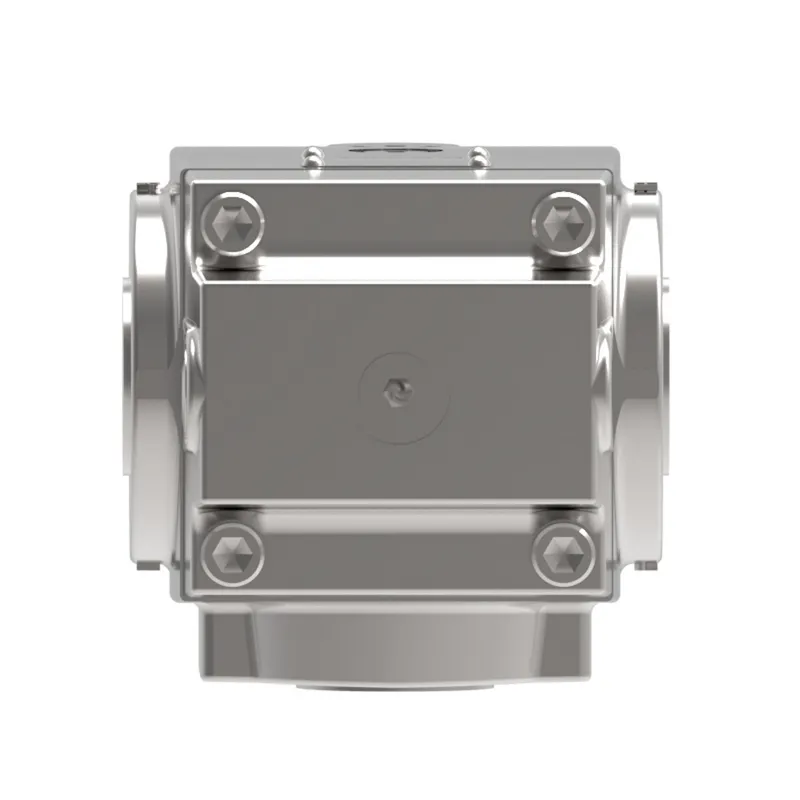

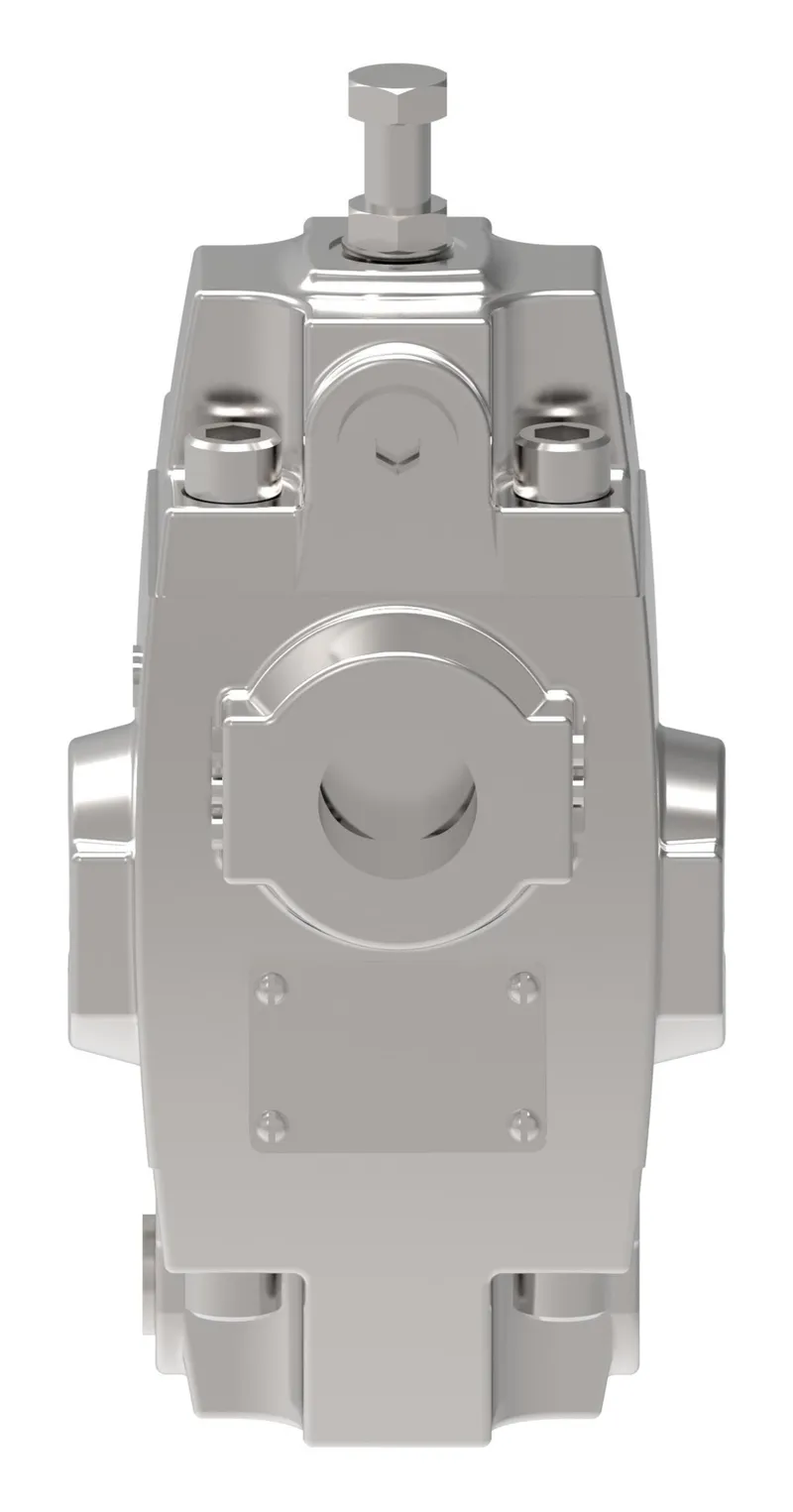

Danfoss RS 10 Y2 30, RS10Y230, manufacturer part number 02-393374. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Actuation TypePilot operated
Adjustment range2.1-4.1 bar (30-60 psi)
Adjustment typeScrew with locknut
BrandVickers by Danfoss
Check valveNo
Design Series30 Series
DrainExternal
Electrical connectionNone
Flow rate lpm284.0
Flow rate USGPM75.0
Fluid Cleanliness19/17/14 Micron
Fluid compatibilityPetroleum oils
Hi-vent springNo
Indicator LightNo
Maximum pressure BAR210
Maximum pressure PSI3000
Model Code 1RS10Y230
PerformanceStandard
Product height in11.110
Product height mm282.194
Product length in4.630
Product length mm117.602
Product width in4.250
Product width mm107.95
Seal materialNitrile
SizeSize 10
Special featureNone
StageTwo stage
Valve Mount Type1.6250-12-UNF-2B straight thread
Valve typePressure control valve
Working temperature max C70
Working temperature max F158
Working temperature min C-20
Working temperature min F-4

02-393374: frequently asked questions

When can 02-393374 be shipped?

02-393374 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-393374 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-393374 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-393374, subject to availability and destination.
